Summary of Contents for Friedrich RT4

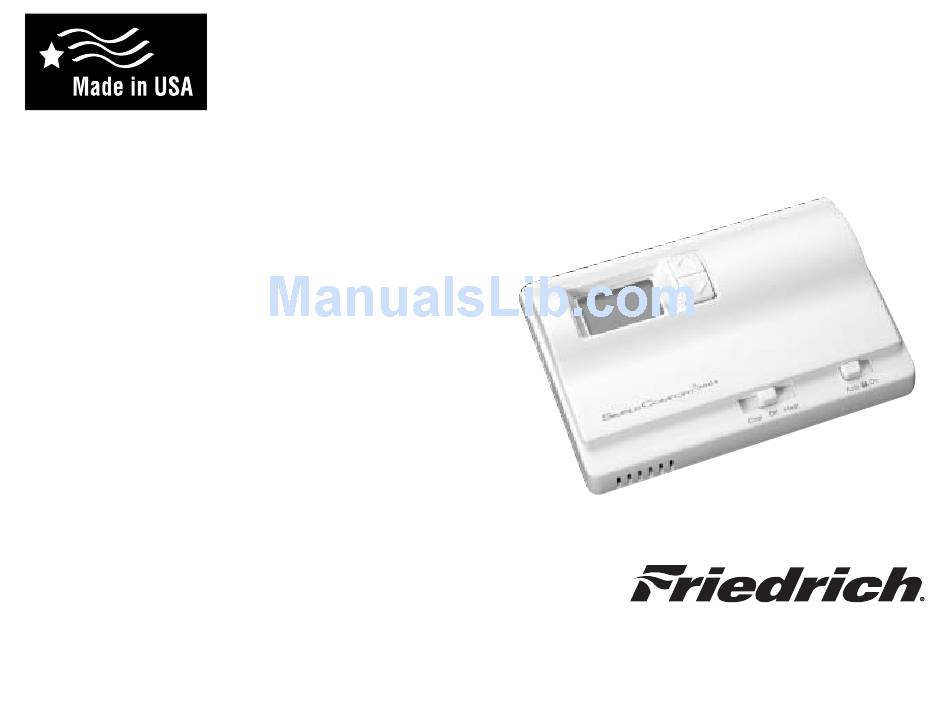

- Page 1 Manual Changeover Non-Programmable Hardwired Non-Programmable Electronic Thermostat • For use with Friedrich PTAC and Vert-I-Pak Systems • 30-Minute Power Loss Memory Retention Installation, Operation & Application Guide...
-
Page 2: Table Of Contents
Operation ... 7 A Quick Test... 8 Wiring Diagrams ... 9 Troubleshooting ... 10 caution!: This thermostat should be installed by trained technicians only. Adhere to all local and national codes. Disconnect all power to the system before installing, removing, or cleaning. -
Page 3: Parts Diagram
Parts Diagram Celsius/ Fahrenheit Jumper F–C NON–HP Heat Pump/ Non-Heat Pump Jumper Gas/Electric Electric Switch Reset Button Auto Cool Heat Mode Switch Fan Switch... -
Page 4: Specifications
• All wiring must conform to local and national building and electrical codes and ordinances • While cleaning, do not get soap directly on thermostat switches or LCD readout; only use a damp cloth with a mild soap to wipe the outside of the thermostat cover... -
Page 5: Package Contents/Tools Required
Package Contents/Tools Required Package includes: RT4 non-programmable thermostat on base, thermostat cover, wiring labels, screws and wall anchors, Installation, Operation and Application Guide. Tools required for installation: Drill with 3/16” bit, hammer, screwdriver. • The RT4 thermostat is a hardwired, digital, mercury-free, non-programmable, electronic thermostat •... -
Page 6: To Remove Existing Thermostat
1. Turn off power to your system. Move the Mode switch to Off . 2. Move the Fan switch to Auto. 3. To remove cover, insert and twist a coin or screwdriver in the slots on the sides of the thermostat. To Install Thermostat... - Page 7 To Install Thermostat (continued) Put thermostat base against the wall where you plan to mount it (Be sure wires will feed through the wire opening in the base of the thermostat). Mark the placement of the mounting holes. Set thermostat base and cover away from working area.
-
Page 8: Replacing Wiring Labels
Replace the old labels with the enclosed new labels: F, G Y, Y6 H, W, 4 M, 4, RH, RS, R Replacing Wiring Labels Fan control relay Heat active reversing valve Cooling control Heating control Transformer, common side Transformer, hot side Type... -
Page 9: Operation
Setting a New Temperature Differential The default temperature differential is 1°. When your room temperature varies by 1°F, the thermostat turns on your system. If you notice your system turning on and off too frequently, increase the temperature differential. -
Page 10: A Quick Test
caution!: Do not switch system to cool if the outdoor temperature is below 50°F (10°C). This can damage the air conditioning system and may cause personal injury. Action: Set the Mode switch to Cool. Press the temperature. Result: The A/C system and fan should turn on. Action: Set the Mode switch to Off. -
Page 11: Wiring Diagrams
Wiring Diagram HARDWIRED NOTE: B terminal used on heat pump models only... -
Page 12: Troubleshooting
Your thermostat has two options for temperature readout: Fahrenheit (default) or Celsius; check that the “jumper” is properly set to your preference Plug the hole for wiring behind the thermostat with non-flammable insulation to prevent airflow into the thermostat Remedy... - Page 13 Friedrich Air Conditioning Co. Post Office Box 1540 • San Antonio, Texas 78295-1540 4200 N. Pan Am Expressway • San Antonio, Texas 78218-5212 (210) 357-4400 • FAX (210) 357-4480 www.friedrich.com...
