Ecco EC2030-WC Operating Instructions Manual

!
WARNING!
Failure to install or use this product according to manufacturer's recommendations may result in property damage, serious bodily/personal injury,
and/or death to you and those you are seeking to protect!
Do not install and/or operate this safety product unless you have read and understand the safety information
contained
1. Proper installation combined with operator training in the use, care, and maintenance of safety products are essential to ensure the safety of
you and those you are trying to protect.
2. Exercise caution when working with live electrical connections.
3. This product must be properly grounded. Inadequate grounding and/or shorting of electrical connections can cause high current arcing, which
can cause personal injury and/or severe vehicle damage, including fire.
4. Proper placement and installation are vital to the performance of this safety product. Install this product so that the performance of the system
is maximized and the controls are placed within convenient reach of the operator so that s/he can operate the system without losing eye contact
with the roadway.
5. It is the responsibility of the vehicle operator to ensure during use that all features of this product work correctly. In use, the vehicle operator
should ensure the field-of-view of the camera/monitor is not blocked by vehicle components (i.e., open trunks or compartment doors), people,
vehicles, or other obstructions.
6. Never take the right-of-way for granted. It is your responsibility to be sure you can proceed safely before entering an intersection, driving
against traffic, responding at a high rate of speed, walking on or around traffic lanes.
7. This equipment is intended for use by authorized personnel only. The user is responsible for understanding and obeying all laws regarding
safety products. Therefore, the user should check all applicable city, state, and federal laws and regulations. The manufacturer assumes no
liability for any loss resulting from the use of this safety product.
Specifications:
Battery Capacity
Charging Voltage
Charging Time
Discharging Time
Charging Temperature
Waterproof Rating
Image Device
TV System
Effective Pixels
Sensing Area
Operation Frequency
Line of Sight Range
Delay
Night Vision Distance
Audio
Viewing Angle
IR-Cut
Standby Mode
Magnetic Strength
Pairing Instructions:
Using the EC7008-WM monitor:
1. Press S to enter the single image mode and camera number to be paired.
2. Press M to enter the Menu.
3. Use the + or - to highlight the PAIRING Option.
4. Press the down arrow to enter the PAIRING Option.
5. The monitor will display the message "PAIRING START 50" and a counter
that counts down 50 seconds. Power on the camera within the first 45
seconds.
6. The camera will pair with the monitor after 5-8 seconds.
Using EC7008-WM remote:
1. Press SEL to enter the single camera mode and camera image number to be
paired.
2. Press PAIR to enter the PAIRING OPTION.
3. The monitor will display the message "PAIRING START 50" and a counter
that counts down 50 seconds. Power on the camera within the first 45
seconds.
4. The camera will pair with the monitor after 5-8 seconds.
3.6V/6700mAh
DC 5-12V
5V/8 hrs, 12V/3hrs
12 continuous hours
-10 TO 45°C
IP69K
1/3" CMOS PC3089
PAL, NTSC
756 x 504 Pixels
4.80mm x 3.73mm
2400-2483.5 MHz
120m
120 m/s
8 to 10 meters
Yes
120°
Yes
30 seconds of inactivity
60 lbs

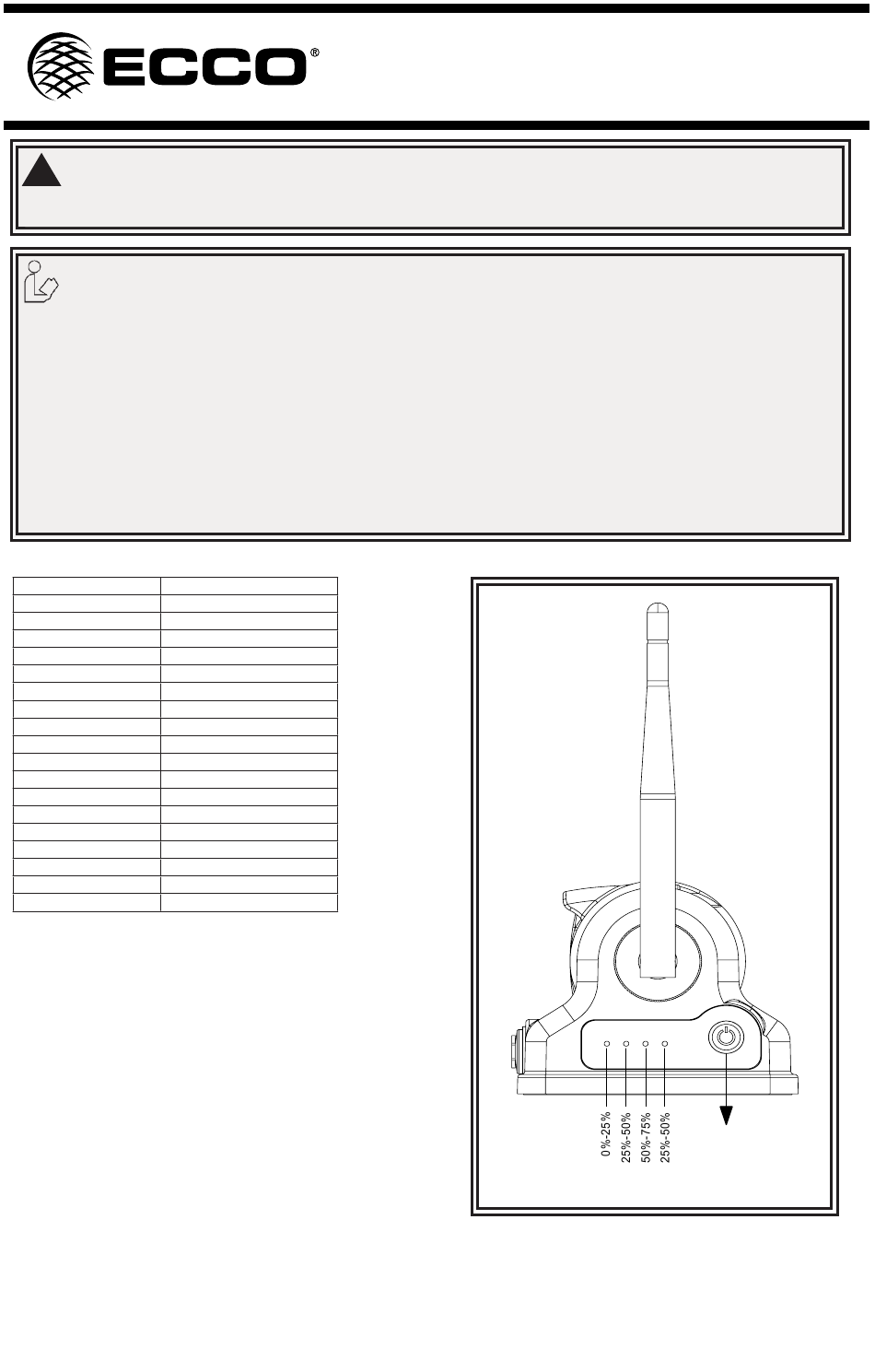

Operating Instructions
EC2030-WC Wireless Camera
ON/OFF
FIGURE 1
Page 1 of 2
