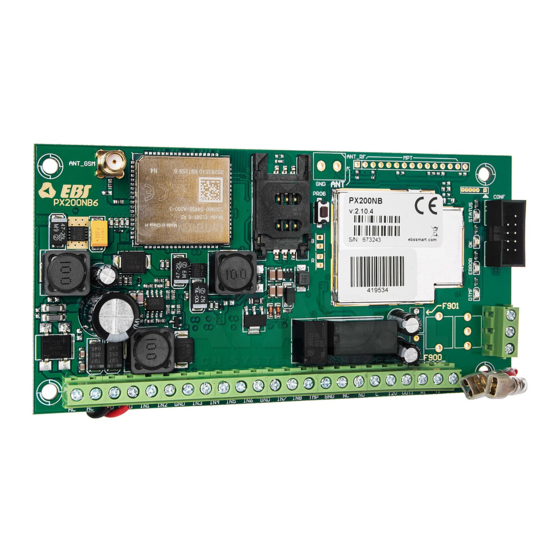

- Page 1 GPRS TRANSMITTER PX200NB Installation and programming manual Issue: Release date: 09.08.2018 Firmware version: 2.5.1 GPRS transmitter configurator 1.4.85.3 version: OSM server version: 1.3.68.2...
- Page 2 DECLARATION OF COMPLIANCE We, EBS Sp. z o.o., declare with full responsibility that the present product meets all requirements provided for in the Directive 1999/5/EC of European Parliament and Council dated 9 March 1999. The copy of the “Declaration of Compliance” can be found at http://www.ebs.pl/en/certificates/...
-
Page 3: Table Of Contents
3. ASSEMBLY AND WIRING ................9 3.1. PX200NB TRANSMITTER ..............9 3.2. INPUT CONFIGURATION ..............11 3.3. REMOTE CONTROL CONFIGURATION (ONLY PX200NB-5R VERSION) ..11 4. QUICK START PROCEDURE ..............13 5. OPERATION .................... 15 6. CONFIGURATION PROGRAM ..............16 6.1. INITIAL REMARKS ................16 6.2. - Page 4 SMS NOTIFICATIONS ................ 40 7.6.1. Phone numbers ................40 7.6.2. Events ..................41 7.6.2.1. SMS user tests ..............42 7.6.3. Status ..................43 7.6.4. SMS Forward ................44 7.7. LINK CONTROL ................45 PX200NB – Manual Page 4 / 64...
- Page 5 RECEIVING OF DTMF DATA ............. 61 10.5. PROGRAMMING ................62 10.6. FIRMWARE UPDATING ..............62 10.7. SIM CARD ERROR ................63 10.8. SLEEP MODE ................. 63 10.9. SYSTEM ERROR ................63 CHANGELOG ..................64 PX200NB – Manual Page 5 / 64...
-
Page 6: Introduction
Due to many settings a transmitter may be applied with many systems of various requirements. The device is basically purposed for data transmission from security systems installed in detached houses and in small business facilities. Additionally PX200NB transmitter has got input for connection of an alarm control panel’s phone communicator. -
Page 7: Functional And Technical Parameters
Power supply consumption DC 60mA/110mA@13,8VDC* parameters (AKU) * Measured with full charged battery - PCB (without (average / max) casing) Power 130mA/239mA @18V consumption AC * Measured with full charged battery (average / max) PX200NB – Manual Page 7 / 64... - Page 8 (at secondary / at 13.5V / 160V (with EBS transformer) primary) Threshold of signaling low battery voltage Dimension PCB: 146 x 73 x 35 mm Working temperature -10ºC … +55ºC Working humidity 5% … 93% Standards PX200NB – Manual Page 8 / 64...
-
Page 9: Assembly And Wiring
3. ASSEMBLY AND WIRING 3.1. PX200NB TRANSMITTER Fig. 1. Connecting the PX200NB transmitter Connections of wires shall be made with due care to prevent any faults or dead shorts. Places of connections shall be protected against weather conditions. According to the figure 1. terminals of transmitter shall be connected to:... - Page 10 After careful connections examination a battery may be connected (to +ACU and GND terminals) and then power may be switched on for transformer and programming procedure of transmitter may begin (See chapter 6. Configuration program). PX200NB – Manual Page 10 / 64...
-
Page 11: Input Configuration
Fig. 2. Examples of connecting sensors to the inputs in various configurations 3.3. REMOTE CONTROL CONFIGURATION (ONLY PX200NB-5R VERSION) The device in version PX200NB-5R provides 2 additional virtual inputs that can be triggered by radio transmitters. The way of functioning should be configured by GPRS configurator software. - Page 12 After the third STATUS LED flash, the transmitter will enter the erasing mode. Press the PROG button again and wait to LED STATUS off. Release the button. Erasing of pre-programmed remotes will be confirmed by lighting up STATUS LED and OK. PX200NB – Manual Page 12 / 64...
-
Page 13: Quick Start Procedure
Number of port in server that receives messages from a device <access point name>: defines access point name to GSM network. If private network is used, SMS message shall provide the following parameters: UN=<user ID number> PW=<user password>. PX200NB – Manual Page 13 / 64... - Page 14 Exemplary SMS is as follows (if we use public network and provide server address as IP): 1111 █ SERVER=89.123.115.8 █ PORT=6780 █ APN=general.t-mobile.uk █ █ Where: █: space character PX200NB – Manual Page 14 / 64...
-
Page 15: Operation
Text message on events sent to private phone numbers may be edited. All programmable parameters are saved in memory and in case of voltage drop that are not lost. Supply of power starts the transmitter with saved settings. PX200NB – Manual Page 15 / 64... -
Page 16: Configuration Program
(login: ebs, password: ebs). To install program an installation wizard shall be started that performs installation in default place C:\Program Files\EBS\. During installation process shortcuts on screen and Windows menu are created. If device is to be used for the first time it shall be programmed with the above program and after this procedure the SIM card may be inserted into the device. -
Page 17: File -> New
6.3.1. File -> New Opens new set of parameters. Editing of configuration parameters is possible. Select type of device – PX200NB. 6.3.2. File -> Open If file contains saved settings, they may be used to program next device. Firstly a catalogue where file has been saved shall be chosen and then name of file shall be provided. -
Page 18: File -> Language
Click on [Add] button to confirm settings. Connections shall be saved (and inserted in table). From this time on program shall enable wires connection with device and reading, and saving of parameters in memory will be possible. PX200NB – Manual Page 18 / 64... -
Page 19: Remote Connection
GPRS tab to carry out configuration of this mode. On screen the following window shall appear: Define: Name of connection e.g.: Remote Select name of analyzer e.g.: Primary Enter analyzer address e.g.: www.ebs.pl PX200NB – Manual Page 19 / 64... - Page 20 SIM card inserted into a device and SIM card installed in GSM modem. Beside, transmitter must enable to pick up data calls (see 7.5.2 GSM modems authorized phones). PX200NB – Manual Page 20 / 64...
-
Page 21: File-> Automatic Device Settings Backup
Detailed description of connections configuration is included in clause 6.3.5. 6.3.9. Operations -> Send This function is analogical to the above one, at the same time it enables data saving into EEPROM module. Correct saving is confirmed with message on a screen. PX200NB – Manual Page 21 / 64... - Page 22 PX200NB – Manual Page 22 / 64...
-
Page 23: Operation -> Device Monitor
Function provides real-time information on device state. See chapter 7.11. Device monitor. 6.3.11. Operation -> System events history Function provides information about last events stored in PX200NB device memory. See chapter 7.12. Events history. 6.3.12. Operation -> Restore default settings If operation “Read”... -
Page 24: Programmable Parameters
GPRS: GPRS standard transmission (TCP/IP Protocol), and in case of any problems with this link no transmission will follow o Serverless: no transmission to the server with is possible, remote communication possible only via SMS notifications to the user PX200NB – Manual Page 24 / 64... -
Page 25: Gprs Test Time
User password When using public APN, user ID is mostly not required. For private APN this parameter shall be obtained from operator (it is impossible to be granted access to GPRS network without it). PX200NB – Manual Page 25 / 64... -
Page 26: Dns1 And Dns2
“Communication Server” software has been installed , e.g. 89.130.125.82. This address may be provided in domain name of server, e.g. monitor.gprs.com. In this case it is required to provide minimum one address of DNS server. PX200NB – Manual Page 26 / 64... -
Page 27: Server Port
Before the first use PIN code of SIM card shall be programmed for operation in given transmitter. PIN code is indispensable for automatic system launching. In case of card without PIN code, it is possible to enter any value e.g. 0000. PX200NB – Manual Page 27 / 64... -
Page 28: Transmission
Module is equipped with two outputs. Inputs/Outputs option enable programmable configuration so that transmitter operates pursuant to requirements of the user. 7.3.1. Inputs configuration For every input the following settings shall be determined respectively. PX200NB – Manual Page 28 / 64... -
Page 29: Input Mode
In case of temporary lock – user can set lock time and number of input state changes after which lock occurs. Lock time is counted from first input state change. More detailed information about input locks is shown on a diagram below. PX200NB – Manual Page 29 / 64... -
Page 30: Partitions
- Locally there can be 2 x N – 1 input activations. In summary average number of activations during defined period of time will be preserved. Temporary lock may be deactivated by SMS or GRPS command (RLIMIT command) 7.3.2. Partitions Partitions are configured using Partitions tab. PX200NB – Manual Page 30 / 64... -
Page 31: Partition Arming Input
Entry time, but only when partition to which input belongs will not be disarmed before Entry time period. 7.3.2.4. Exit time Partition exit time. Partition inputs will be monitored when this configured time elapses after partition input had been armed. PX200NB – Manual Page 31 / 64... -
Page 32: Entry Time
No GSM signal (immediately after detection); Dependent on state transitions from non-active to active of one of the inputs. Outputs can be also activated by internal watchdog (see 7.7. Link control). PX200NB – Manual Page 32 / 64... -
Page 33: Additional Conditions
Always: every input disturbance causes actuation of sabotage output. Available network: input disturbance causes actuation of sabotage output if sending of information to server is possible. Note: Both outputs may be controlled by SMS commands. PX200NB – Manual Page 33 / 64... -
Page 34: Advanced Outputs Control
7.3.4.1. Output 1 / Output 2 These columns define which signals are to influence the status of a specific output. You can define the output operating mode and which signals control the outputs. PX200NB – Manual Page 34 / 64... -
Page 35: Time Of Output Activation
(see item 7.3.3.2.). 7.3.4.4. Event: Input 9 (RC) and Input 10 (RC) Virtual RC input (only for PX200NB-5R), which allow you to control the output state. Possible choices are described in section 7.3.4.1. 7.4. MONITORING Thanks to this option you may determine which of available signals generated by the device shall be transmitted to monitoring station. -
Page 36: Sms On / Sms Off
One of device additional options is monitoring of power supply voltage. As short voltage drop may follows at some facilities, it is possible to avoid reporting by entering time after which information will be sent. PX200NB – Manual Page 36 / 64... -
Page 37: Event: Clip
In this section you can define the limits for the numbers of which SMS are sent to the transmitter with commands and CSD connections are established. You can also specify the period of validity of the sent SMS and SMS limits. PX200NB – Manual Page 37 / 64... -
Page 38: Sms Authorized Phones
[Add] button to send them to the below table. Position cursor on line with number and click on “Remove” to remove number from table. Click on “Remove all” to remove all numbers from table. PX200NB – Manual Page 38 / 64... -
Page 39: Gsm Modems Authorized Phones
MAX (meaning no specified time). 7.5.4. SMS limits User may limit number of SMS sending by transmitter. As the main way of transmission should be GPRS this limitation is essential to reduce costs. PX200NB – Manual Page 39 / 64... -
Page 40: Sms Notifications
To edit you shall follow this procedure: o Enter due telephone number into edition field. o Click on [Add] button to transfer number to the below table. o Repeat procedure (up to 5 phone numbers). PX200NB – Manual Page 40 / 64... -
Page 41: Events
If the “Copy the contents from first message” will be marked then selection and text content will be automatically copied from the first message, otherwise you may copy one text and paste to other field manually PX200NB – Manual Page 41 / 64... -
Page 42: Sms User Tests
The format of the test period field is “the total number of days, number of hours:the number of minutes”. No selection in the “Send test every” will disable SMS user tests. PX200NB – Manual Page 42 / 64... -
Page 43: Status
1. Counter Characters left informs about the total number of characters that may be inserted into the table. 2. For the parametric EOL and DEOL inputs, Alarm state occurs both in violation and sabotage PX200NB – Manual Page 43 / 64... -
Page 44: Sms Forward
Note: It is a user’s responsibility to provide correct rules which will not create loops of forwarded SMS messages. PX200NB – Manual Page 44 / 64... -
Page 45: Link Control
Turn on output 1 (OUT1) o Turn on output 2 (NC-NO-C) In case of no connection with GSM network the device after recognizing the situation shall wait during provided time limit and then shall perform programmed actions. PX200NB – Manual Page 45 / 64... -
Page 46: Gprs
Turn on output 1 (OUT1) o Turn on output 2 (NC-NO-C) In case of no connection with GPRS network the device after recognizing the situation shall wait during provided time limit and then shall perform programmed actions. PX200NB – Manual Page 46 / 64... -
Page 47: Rs232
If RS232 checkbox will not be enabled, data to the Event monitor will be sent on device’s serial port. With this setting, GD-PROG cable can be used to observe device state using GPRS transmitters configurator application and Monitor option described in point 7.11. PX200NB – Manual Page 47 / 64... -
Page 48: Buffer Flushing
Additionally transmitter may collect information from an control panel using its a phone communicator, and next transmit them via GPRS link. The mentioned below parameters shall be defined for proper operation of the device. PX200NB – Manual Page 48 / 64... -
Page 49: Phone Line Settings
Note: The transmitter is to simulate a telephone line access if: o A PSTN line is not connected o A PSTN line is connected but has not been activated – option from clause 7.9.1.1 PX200NB – Manual Page 49 / 64... -
Page 50: Report Off-Hook
7.9.1.5. Report intervals between dialled digits This option is being used if in configuration “PSTN line – PX200NB – Alarm Control Panel” there are not other telecommunication devices. If such device will be connected and telephone number will be dialled (and a call will follow) after expiry defined time limit (counted since conclusion of last digit dialling) the transmitter sends a message. - Page 51 (until execution of all determined trials). Select this option to avoid the above mentioned. PX200NB – Manual Page 51 / 64...
-
Page 52: Firmware
Click [Start] button to start software exchange. f) Loading course is displayed on special window. g) Close the window after completed saving From this time on the device will work under control of new firmware. PX200NB – Manual Page 52 / 64... -
Page 53: Device Monitor
Type or serial number of device Firmware and hardware revision Device time These parameters are also shown in Log window in text style. All data can be saved to file. PX200NB – Manual Page 53 / 64... -
Page 54: Events History
7.12. EVENTS HISTORY “Events history” provides information about last events stored in PX200NB device memory. PX200NB transmitter is able to save at least 5000 events. It is possible to read the history using a GPRS connection or RS232. In the second case, data can be send to PC only via GD-PROG cable (the switch in position PROG) or SP-PROG programmer. - Page 55 PX200NB – Manual Page 55 / 64...
-
Page 56: Device Programming
In first case remote programming is possible on CSD channel and its procedure is analogous to local programming, remembering that “Modem GSM” shall be selected from connection options (See chapter 6.3.5.2 – CSD connection). PX200NB – Manual Page 56 / 64... -
Page 57: The First Programming Of Device
Save settings in memory of device. Saving course is displayed in special window. c) After saving completion close Configuration Wizard d) The device is ready to transmit data according to new settings. PX200NB – Manual Page 57 / 64... -
Page 58: Receiving Of Sms Message
If APN user name contain space sign put it with “”, e.g. “my user name”. PW=pw APN password. Parameter should be obtained from mobile network operator. If APN password contain space sign put it with “”, e.g. “my password”. PX200NB – Manual Page 58 / 64... - Page 59 Note: DESC, CMD, GETSTATUS, GETPARAM, GETCFG commands require separate SMS, so one command with only one SMS. Samples of commands and device reaction: Parameters setting: 1111█APN=general.t-mobile.uk█SERVER=89.112.43.78█PORT=6670█ SMS=500445566█SMSPERIOD=25 Parameters verification: Inquiry: 1111█GETCFG Answer: 89.112.43.78:6670,general.t-mobile.uk██, Inquiry: 1111█GETPARAM=SMS Answer:: 500445566 PX200NB – Manual Page 59 / 64...
-
Page 60: Led Diodes Indication
GSM range is being indicated. LED Diodes Description DTMF ERROR OK STATUS OK (green) ERROR (red) GSM range = 8 GPRS mode GSM range = 6 SMS mode PX200NB – Manual Page 60 / 64... -
Page 61: Data Transmission
Diodes marked as DTMF and STATUS indicate actual condition during receiving data from a control panel. LED Diode Signalling STATUS DTMF ERROR OK STATUS DTMF (HandShake) (KissOff) DTMF ERROR OK STATUS 6 digits of phone 16 digits ContactID PX200NB – Manual Page 61 / 64... -
Page 62: Programming
LED Diodes Description DTMF ERROR OK STATUS OK (green) ERROR (red) No program in device (1/sec) Software updating Received firmware 10 sek decoding PX200NB – Manual Page 62 / 64... -
Page 63: Sim Card Error
ERROR (red) 10.9. SYSTEM ERROR During operating errors may follow. Any error is indicated by constant flashing of a red diode ERROR and mostly it means communication problem with modem or SIM card. PX200NB – Manual Page 63 / 64... -
Page 64: Changelog
Updated information about GPRS Transmitter Configurator 31.10.2017 / i1.7 Updated requirements for the computer installing the GPRS Transmitter Configurator; replacement of OSM.2007 with OSM.Server 09.08.2018 / i1.8 Updated information in chapter SMS Notifications->Status PX200NB – Manual Page 64 / 64...
