- Page 1 TRANSMITTER WX2NB Installation and programming manual Version of the manual: v1.0 Date of issue: 2019.03.18 Firmware version: 2.5.2 GPRS transmitter configurator version: 1.4.91.4 WX2NB Manual v.1.0 Page 1 / 40...
- Page 2 DECLARATION OF COMPLIANCE We, EBS Sp. z o.o., declare with full responsibility that the present product meets all requirements provided for in the Directive 1999/5/EC of European Parliament and Council dated 9 March 1999 The copy of the “Declaration of Compliance” can be found at www.ebssmart.com...
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ....................5 FUNCTIONAL AND TECHNICAL PARAMETERS ............6 ASSEMBLY AND WIRING ................... 7 3.1. WX2NB TRANSMITTER ................7 3.2. INPUT CONFIGURATION ................8 3.3. LX-ZAS POWER SUPPLY ................9 OPERATION ....................10 CONFIGURATION PROGRAM ................11 5.1. - Page 4 LOGGING TO Wi-Fi NETWORK ..............38 9.2. Wi-Fi RANGE ..................38 9.3. DATA TRANSMISSION ................38 9.4. PROGRAMMING ..................38 9.5. FIRMWARE UPDATING ................39 9.6. SYSTEM ERROR ..................39 REVISION HISTORY ..................40 WX2NB Manual v.1.0 Page 4 / 40...
-
Page 5: Introduction
1. INTRODUCTION Transmitter WX2NB is an advanced microprocessor device, made with surface moulding technology and designed according to the latest trends. It is intended for data package transmission from electronic building security systems or from other technical devices through a wireless connection to a local area network (WLAN). -
Page 6: Functional And Technical Parameters
Therefore also the parameters as type of the power supply voltage, current consumption as well as the dimensions were introduced for following options separately: Option 1 – Transmitter WX2NB + power supply LX-ZAS in metal/plastic box Option 2 – PCB of transmitter WX2NB Option 1... -
Page 7: Assembly And Wiring

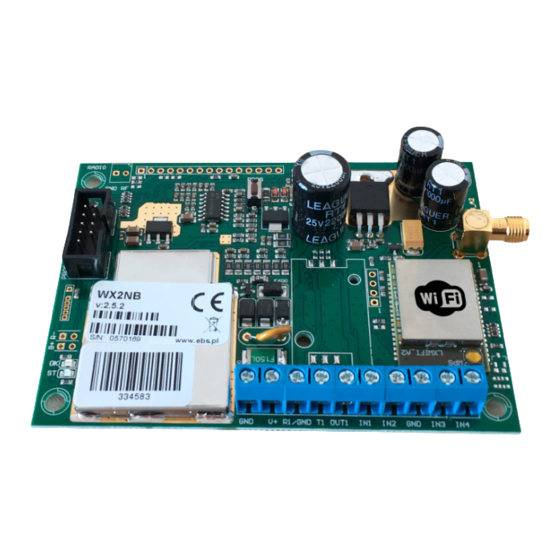

Switch power off to perform any connection. 3.1. WX2NB TRANSMITTER Figure 1. WX2NB Transmitter with LX-ZAS a) Connections of wires shall be made with due care to prevent any faults or dead shorts. Places of connections shall be protected against weather conditions. -
Page 8: Input Configuration
OUT1 Type OC output.. It may control external device. Provides ground during activation. Connect to the positive pole (+13,8V) of the EBS power supply. Connect to the negative pole of the power supply. After careful connections examination a battery may be connected (to +/- AKU terminals of LX-ZAS power supply) and then power may be switched on for transformer and programming procedure of transmitter may begin (see Chapter 6). -
Page 9: Lx-Zas Power Supply
3.3. LX-ZAS POWER SUPPLY The dedicated power supply LX-ZAS (product of EBS) possesses the following parameters: Parameter Value Served batteries Acid-leaded 12V Maximum voltage of charging battery 13.8V Charging current 0.2A or 1A (switched by jumper) Voltage of signaling of low level... -
Page 10: Operation
All programmable parameters are saved in non-volatile memory, so they are not lost on loss of power. Restoring power causes automatic transmitter activation with the previously saved settings. WX2NB Manual v.1.0 Page 10 / 40... -
Page 11: Configuration Program
5. CONFIGURATION PROGRAM 5.1. INITIAL REMARKS GPRS transmitters configurator may be downloaded at www.ebs.pl (login: ebs, password: ebs) To install program an installation wizard shall be started that performs installation in default place C:\Program Files\EBS\. During installation process shortcuts on screen and Windows menu may be created. -
Page 12: File->New
5.3.1. File->New Opens new set of parameters. Editing of configuration parameters is possible. Select type of device (WX2NB). 5.3.2. File->Open If file contains saved settings, they may be used to program next device. Firstly a catalogue where file has been saved shall be chosen and then name of file shall be provided. - Page 13 Operations are the same as with the "RS232" tab. Specify the name, the correct COM port and add a connection. Programmers MINI-PROG-BT and SP-PROG-BT have microUSB ports, through which we can connect to the computer using the USB port, but also have built-in Bluetooth interface. WX2NB Manual v.1.0 Page 13 / 40...
-
Page 14: File->Automatic Device Settings Backup
Connection name, e.g. Remote Analyser name, e.g. Primary Analyser address, e.g. www.ebs.pl Port at which the analyser listens for commands, e.g. 9000 Confirm settings by clicking [Add]. The connection will be saved (and added to the table). From now on, the software will enable connecting remotely to the device and enable reading and saving parameters to WX memory. -
Page 15: Operations->Send
If operation “Read” finishes with error message (e.g. if access code is unknown) it is possible to come back to default settings by selecting “Restore default settings”. e “Do you want to overwrite current configuration with default values?”. After confirming the following window shall appear: WX2NB Manual v.1.0 Page 15 / 40... -
Page 16: Operations->System Events History
„Events history” provides information about last events stored in WX device memory. 5.3.12. Operations->Device monitor “Device Monitor” provides real-time information on WX device state. 5.3.13. Help->About program Select this information to view additional information about program. WX2NB Manual v.1.0 Page 16 / 40... -
Page 17: Programmable Parameters
Access, Link Control, Telephone Line. Attempting to access windows with these parameters leads to an insufficient rights message. By default, the code is: 2222. WX2NB Manual v.1.0 Page 17 / 40... -
Page 18: Device Mode
This feature is strictly related to the network device (router) being equipped with a WPS button, and with the button on the WX2NB Wi-Fi module (see section 3.1WX2NB TRANSMITTER). - Page 19 This setting defines the time interval (in seconds) after which the connection attempt will be repeated, if the previous one was unsuccessful. WX2NB Manual v.1.0 Page 19 / 40...
-
Page 20: Transmission
For the purpose of maximum security of transmission, data is encrypted with AES key. This option may be used for Wi-Fi transmission. After selection of encrypted transmission you may use your own code (256 bytes – signs 0-9 and A-F) or use default settings. WX2NB Manual v.1.0 Page 20 / 40... -
Page 21: Inputs/Outputs
Actuation follows after decay. NO input remains open. At this moment of shortening to ground activation follows. EOL and DEOL are options where you use 1 or 2 resistors to distinguish alarm from sabotage WX2NB Manual v.1.0 Page 21 / 40... - Page 22 In case of temporary lock – user can set lock time and number of input state changes after which lock occurs. Lock time is counted from first input state change. Both types of lock can be deactivated by command (see RLIMIT command). WX2NB Manual v.1.0 Page 22 / 40...
- Page 23 - N and Tb parameters may be set per input - Locally there can be 2 x N – 1 input activations. In summary average number of activations during defined period of time will be preserved. WX2NB Manual v.1.0 Page 23 / 40...
-
Page 24: Partitions
Entry time, but only when partition to which input belongs will not be disarmed before Entry time period. 6.3.2.4. Exit time Partition exit time. Partition inputs will be monitored when this configured time elapses after partition input had been armed. WX2NB Manual v.1.0 Page 24 / 40... -
Page 25: Output Configuration
No Wi-Fi signal (immediately after detection); Dependent on state transitions from non-active to active of one of the inputs. Output can be also activated by internal watchdog, which can be configured in “Link control” group. WX2NB Manual v.1.0 Page 25 / 40... -
Page 26: Advanced Outputs Control
In particular, the basic configuration of existing options: “No Wi-Fi signal (immediately after detection)” and “Dependent on state transitions from non- active to active of one of the inputs” should not be used with their replacements “[Off] Server” and “[On] Input x”. WX2NB Manual v.1.0 Page 26 / 40... - Page 27 The output state does not change if the current state of the output coincides with the result of the action. 6.3.4.2. Time of output activation Parameter defining amount of time for which the output is to be turned on for the functions of advanced outputs control. WX2NB Manual v.1.0 Page 27 / 40...
-
Page 28: Monitoring
For the events “Power” and “Battery” no selection “Skip initial state” will cause sending information about the power supply / battery on boot device regardless of the power supply / battery state. WX2NB Manual v.1.0 Page 28 / 40... -
Page 29: Power Loss
Wi-Fi network or when transmission is impossible. 6.5.1. Wi-Fi Activating this function (checking the [Enable] box) provides access to parameters that define the device's reaction when Wi-Fi connection is lost. WX2NB Manual v.1.0 Page 29 / 40... -
Page 30: Phone Line
6.6.1.1. Report off-hook time longer than If a phone set is connected in parallel output of control panel communicator (to terminals T1-R1 of transmitter), picking up of a phone prevent from exchange of WX2NB Manual v.1.0 Page 30 / 40... -
Page 31: First And Second Phone Number
Transmission of this information via Wi-Fi will be possible if this number will be identical as a number entered into the transmitter. WX2NB Manual v.1.0 Page 31 / 40... -
Page 32: Firmware
- ContactID. 6.7. FIRMWARE The device is equipped with built in bootloader that allow for updating and change of firmware. During programming all information is displayed in respect of carried out operation. WX2NB Manual v.1.0 Page 32 / 40... - Page 33 Close the window after completed saving From this time on the device will work under control of new firmware. Note : The above procedure shall be carry out with due care to avoid improper device operation. WX2NB Manual v.1.0 Page 33 / 40...
-
Page 34: Device Monitor
Service code and clicking “Open” button events data will be downloaded from WX memory. After properly reading access to features such as the "Filtering" and "Charts" becomes possible. Both of them may be used to quickly diagnose the device WX2NB Manual v.1.0 Page 34 / 40... -
Page 35: Device Programming
As the device has no pre-defined Wi-Fi or OSM.Server access parameters, they must be specified first. Regardless on how this entry is made, the device must first be registered in the OSM.Server database. Follow the procedure: WX2NB Manual v.1.0 Page 35 / 40... -
Page 36: Reprogramming Of Device
Select “Send” to display a new window and select remote connection (GPRS tab). Save settings in memory of device. Saving course is displayed in special window. c) After saving completion close configuration wizard d) The device is ready to transmit data according to new settings. WX2NB Manual v.1.0 Page 36 / 40... -
Page 37: Receiving Of Message
8. RECEIVING OF MESSAGE OSM.Server supports sending remote commands in a form designed specially for WX2NB. If a message received by the device is incorrect, it is deleted automatically and the device takes no action. 8.1. LX PROTOCOL The following message format is accepted: SERVICE CODE█COMMAND█COMMAND█.. -
Page 38: Led Diodes Indication
DATA TRANSMISSION During data transmission a green diode indicates data transmitting. LED Diodes Description Green Wi-Fi Transmission 9.4. PROGRAMMING After detection of programming wire diodes indicate programming. LED Diodes Description Green Connected Service wire WX2NB Manual v.1.0 Page 38 / 40... -
Page 39: Firmware Updating
Description Green No program in device (1/sec) Software updating Received firmware 10 sec decoding 9.6. SYSTEM ERROR During operating errors may follow. Any error is indicated by constant flashing of a red diode. WX2NB Manual v.1.0 Page 39 / 40... -
Page 40: Revision History
10. REVISION HISTORY Date/Version Description 18.03.2019 / v1.0 First version WX2NB Manual v.1.0 Page 40 / 40...
