Summary of Contents for EBS EPX400-5C

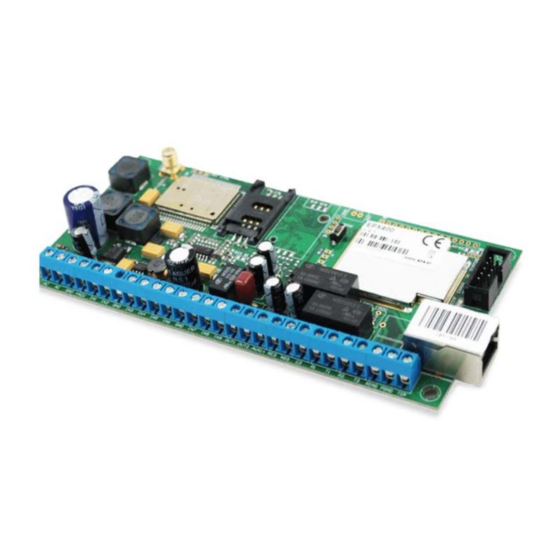

- Page 1 GPRS TRANSMITTER EPX400-5C EPX400-6C FOR CONTROL PANELS DOWNLOADING Installation and programming manual Issue: Release date: 06.09.2019 Firmware version: 2.7.1 GPRS transmitter configurator version: 1.4.96.7 OSM server version: 1.5.01.005...
- Page 2 DECLARATION OF COMPLIANCE We, EBS Sp. z o.o., declare with full responsibility that the present product meets all requirements provided for in the Directive 1999/5/EC of European Parliament and Council dated 9 March 1999. The copy of “Declaration Compliance” found http://www.ebssmart.com/...
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ..................6 FUNCTIONAL AND TECHNICAL PARAMETERS ..........7 ASSEMBLY AND WIRING ................9 3.1. EPX400-xC transmitter ................. 9 3.2. PCB version ..................10 3.3. Input configuration ................10 QUICK START PROCEDURE ..............12 OPERATION ................... 14 PRE-CONFIGURATION VIA ETHERNET PORT .......... - Page 4 8.1.1.6. Option: Embedded HTTP server ..........29 8.1.1.7. Communication parameters lock ..........29 8.1.1.8. Default restoral lock ............... 30 8.1.1.9. Temporarily block access after 3 failed service code authorization attempts 8.1.2. Server connection ................ 31 8.1.2.1. Ethernet parameters............... 31 8.1.2.2. GPRS parameters ..............
- Page 5 8.7.3.1. Disable data receiving ............. 54 8.7.3.2. Disable data sending .............. 54 8.7.3.3. Half duplex mode ..............54 8.7.3.4. Check tests send by device connected to the port ...... 54 8.8. Link control ..................54 8.8.1. Watchdog ................... 55 8.9. Phone line ..................
-
Page 6: Introduction
Instead of connecting PSTN modem to it, ModemEMU application supplied by EBS is used which translates modem communication format to GPRS transmission with EPX400-xC transmitter. EPX400-xC decodes GPRS data and translates it to the Bell103/V.21 format used by control panel. -
Page 7: Functional And Technical Parameters
NO (optional) Multiantenna steering output NO (optional) Supported modems model EPX400-5C: Cinterion BGS2-W (Quad-Band GSM: 850, 900, 1800, 1900 MHz) model EPX400-6C: Cinterion EHS6 (Five Bands UMTS: 800, 850, 900, 1900, 2100 MHz; Quad-Band GSM: 850, 900, 1800, 1900 MHz) Ethernet - 10BaseT/100Base-TX IEEE 802.3 compliant... - Page 8 YES, lead-acid 12V Battery charging current max. 220mA Threshold of signaling low AC voltage (at 13.5V / 160V (with EBS transformer) secondary / at primary) Threshold of signaling low battery voltage Cut-off battery voltage level Dimension PCB: 159 x 73 x 35mm Working temperature -10ºC …...
-
Page 9: Assembly And Wiring
3. ASSEMBLY AND WIRING Transmitter is delivered along with a power supply (see below). The manufacturer provides necessary wiring linking a power supply with the transmitter, and described procedures relate to wiring of a transmitter printed circuit board. Switch power off to perform any connection. Length of the wires connecting between the transmitter and control panel must not exceed 3 m. -
Page 10: Pcb Version
Terminal Connection description Two terminals for AC power supply (output from AC AC, AC transformer) Device ground, common for other input and output +ACU Positive terminal of the battery Signal inputs. Possible connection of detectors contacts or IN1 – IN9 alarm control panel outputs. - Page 11 resistors 2.2kΩ or as double end of line (DEOL-NO or DEOL-NC) with resistor 1.1kΩ. Examples of connecting sensors to the inputs in various configurations are shown in figure 2. Figure 2. Configuration of input lines EPX400-xC – Manual Page 11 / 73...
-
Page 12: Quick Start Procedure
4. QUICK START PROCEDURE NOTE: Do not insert SIM card before the first programming of transmitter as it may block the card if PIN code is required for the card. This chapter is purposed for users that possess experience regarding GPRS data transmission systems and who work with OSM.Server server. - Page 13 1111█SERVER=89.123.115.8█PORT=6780█APN=general.t-mobile.uk█ UN=█PW= Where: █: space character EPX400-xC – Manual Page 13 / 73...
-
Page 14: Operation
5. OPERATION EPX400-xC device is able to transmit data via channel over GSM network, via GPRS, via SMS messages and via Ethernet. Communication mode is configurable – see chapter 8. Programmable parameters for more information. As a result the transmitter may be used only at the territory covered with mobile phone operator network or with wired Ethernet network. -
Page 15: Pre-Configuration Via Ethernet Port
6. PRE-CONFIGURATION VIA ETHERNET PORT To enable the EPX400 to communicate properly, you need to provide basic server connection parameters. The simplest way to do this is via the built-in web server WWW. To access the server, connect the EPX400 using an Ethernet cable to a PC that has an RJ-45 Ethernet port and a web browser. -
Page 16: Description
6.2. DESCRIPTION “Description” item. Displays information about the type of device and its serial number. 6.3. CONFIGURATION “Configure” item. EPX400-xC – Manual Page 16 / 73... -
Page 17: Server Parameters
6.3.1. Server parameters In this section we define the server parameters in the monitoring station. 6.3.1.1. Server address This is the IP address of the monitoring system receiver (OSM.Server), e.g. “89.123.115.8”. The address can be specified as a domain name of the server, e.g. “module.gprs.com”. -
Page 18: User Password
6.3.2.3. User password In this field you can enter the user password required to connect to the GPRS network. This is usually not required with public APNs. If you have a private APN, you should ask your provider for this parameter. Note: Using a private APN increases the security of the system. -
Page 19: Contact
To flash new firmware, follow these steps: a) Open the file with the new firmware (click [Browse] to locate the file, which should have the extension “.efi2”, e.g. epx400-2.1.7.efi2). b) Click [Send]. The firmware update process will start. c) After the process is complete, you will see the update status ... - Page 20 EPX400-xC – Manual Page 20 / 73...
-
Page 21: Configuration Program
To install program an installation wizard shall be started that performs installation in default place C:\Program Files\EBS\. During installation process shortcuts on screen and Windows menu are created. If device is to be used for the first time it shall be programmed with the above program and after this procedure the SIM card may be inserted into the device. -
Page 22: File -> New
Main menu contents: Main menu is available as icons on fast access bar: 7.3.1. File -> New Opens new set of parameters. Editing of configuration parameters is possible. Select type of device EPX400-XC. 7.3.2. File -> Open If file contains saved settings, they may be used to program next device. Firstly a folder where file has been saved shall be chosen and then name of file shall be provided. -
Page 23: File -> Language
7.3.4. File -> Language Allows for selection of any available languages (determined in attached exterior language files). 7.3.5. File -> Connections Before programming of devices, a connection type shall be defined. It is possible to do it with two methods: - locally - remotely. -
Page 24: Remote Connection
Name of connection e.g.: Remote Select name of analyzer e.g.: Primary Enter analyzer address e.g.: www.ebs.pl Enter port on which analyzer operates e.g. 9000 Click on [Add] button to confirm settings. Connections shall be saved (and inserted in table). - Page 25 Notice: The following parameters: analyzer name, analyze address, port relate to settings of OSM.Server receiver of monitoring system. Remote programming is available only if above mentioned device (or software) is used. CSD connection Activate file in Main Menu and select Connection function (or after clicking on icon on fast access bar) and click on GSM Modem tab to carry out configuration of this mode.
-
Page 26: File-> Automatic Device Settings Backup
If during installation on configuring tool settings have not been changed, files will be saved as follows: C:\Program Files\ EBS\KonfiguratorLX\configs\EPX400_20000 Folder “EPX400_20000” contains all files associated with programming of the EPX400 with factory number 20000. The name contains date and time of operation and its type (saving/reading). -
Page 27: Operation -> Device Monitor
7.3.10. Operation -> Device monitor Function provides real-time information on device state. See chapter 8.11. Device monitor. 7.3.11. Operation -> System events history Function provides information about last events stored in EPX400 device memory. See chapter 8.12. Events history. 7.3.12. Operation -> Restore default settings If operation “Read”... -
Page 28: Programmable Parameters
8. PROGRAMMABLE PARAMETERS Parameters available in configuration program are divided into groups: Access, Transmission, Inputs/Outputs, Monitoring, Restrictions, SMS Notifications, RS232, Link control, Phone line and Firmware. Every from these groups will be described in detail in next part of this manual. 8.1. -
Page 29: Firmware Change Code
8.1.1.3. Firmware Change Code This option protects the device against unauthorized remote update of the firmware (eg by OSM monitoring station via Ethernet or GPRS). After enabling this option, a field for entering the code (from 4 to 7 digits long) will appear. This code have to be entered during the remote software update. -
Page 30: Default Restoral Lock
• save control panel settings to .emi file. Default service code (ATS) is 0000 – it is recommended to change it to unique, preferably 7-digit code. NOTE! In case of losing this code it will be necessary to send the device to EBS office. 8.1.1.8. -
Page 31: Server Connection
8.1.2. Server connection In “Server Connection” tab you can set the basic parameters of Ethernet, GPRS and SMS connections 8.1.2.1. Ethernet parameters Primary Server Address It is address of receiver of monitoring system (OSM.Server) or computer where “Communication Server” software has been installed , e.g. 89.123.115.8. This address may be provided in domain name of server, e.g. -
Page 32: Gprs Parameters
monitor.gprs.com. In this case it is required to provide minimum one address of DNS server. Backup Server Port It determines server port that was selected in backup server for collection of data from transmitter. Option “DHCP”: address of the device and other network settings can be assigned by the DHCP server (default setting). -
Page 33: Sms Parameters
Backup Server Address It is address of second (backup) receiver of monitoring system (OSM.Server) or computer where “Communication Server” software has been installed , e.g. 89.130.125.82. This address may be provided in domain name of server, e.g. monitor.gprs.com. In this case it is required to provide minimum one address of DNS server. -
Page 34: Communication
8.1.3. Communication 8.1.3.1. Channels used to connect to monitoring station server By the term channel we mean the data transmission channel to the monitoring station. This can be Ethernet, GPRS or SMS. The transmitter while connecting to the monitoring station is trying to select main channel first, then a backup one, and emergency channel at last. -
Page 35: Ethernet And Gprs Parameters
8.1.3.2. Ethernet and GPRS Parameters Channel Role (Channel Priority) Selecting "Advanced setting" in the “Channels used to connect to monitoring station server " section (see chapter 8.1.3.1) will unlock the fields for each channel and individually prioritize the transmission: There are four settings possible: ... -
Page 36: Sms Parameters
Number of connections attempts before switching to primary server In this filed you determine how many times the device will try to make connection to backup server. If connection fail, after execution of some connections, device will start connecting to primary server. Disconnect after If you mark this field the device will disconnect from backup server after defined time. -
Page 37: Transmission
8.2. TRANSMISSION For the purpose of maximum security of transmission, data is encrypted with AES key. This option may be used for GPRS and SMS transmission. After selection of encrypted transmission you may use your own code (256 bits – signs 0-9 and A-F) or use default settings. -
Page 38: Sensitivity
8.3.1.2. Sensitivity This parameter means minimum time for change maintenance at input so that it would be detected by transmitter.. Default setting is 400ms. 8.3.1.3. Locks With this option you can lock any input of module, and as a result condition changes on this input will be ignored and will not be reported to monitoring station. -
Page 39: Partitions
Limit: N = 2 input changes during Tb time (3rd change activates input lock) Events send to server Input activation and deactivation Event: input active Input activation and deactivation – no reaction Event: input not active Temporary input lock Event: automatic input lock Event: automatic input unlock - N and Tb parameters may be set per input - Locally there can be 2 x N –... -
Page 40: Partition Arming Input
8.3.2.1. Partition arming input Using this, partition arming input can be selected. To selected input, arming device (remote controller receiver output or electronic keyboard NO/NC output for instance) is connected. When this input is armed, partition is armed (after Exit Time, see below). -
Page 41: Outputs
8.3.3. Outputs Tabs "Output 1 (OUT1)", "Output 2 (OUT2)" and "Output 3 (NC-NO-C)" define the outputs parameters. The options for the outputs are common and are described in a single section. 8.3.3.1. Activation mode and timing Thanks to this option you may choose output operation mode. There are two operation modes available: o bistable –... -
Page 42: Additional Conditions
Note: The phone number must be entered without country code (e.g. without prefix 0048 and +48). Dependent on state transitions from non-active to active of one of the inputs. Outputs can be also activated by internal watchdog (see 8.8. Link control). 8.3.3.3. -
Page 43: Output 1 / Output 2 / Output 3
8.3.4.1. Output 1 / Output 2 / Output 3 These columns define which events are to influence the status of a specific output. Possible choices are: o Do Nothing – output status will be not changed (default action) o Turn on output – output will be permanently turned on o Turn on output temporarily –... -
Page 44: Monitoring
8.4. MONITORING Thanks to this option you may determine which of available events generated by the device shall be transmitted to monitoring station. NOTE: “Configuration changed” event refer to configuration changes made by SMS or GPRS commands. 8.4.1. Enable non-volatile events FIFO This setting protects the memory of the own events before deleting eg. -
Page 45: Ethernet
o EVENT_SERVICE_END o EVENT_INCOMING_DATACALL_BEGIN o EVENT_INCOMING_DATACALL_END o EVENT_FIRMWARE_CHANGED. o To OSM Server is sent information abort the occurrence of the event and the number of occurrences without giving a time (eg. A violation of input 2: 14 times). o Events may be sent not in chronological order, even though the transmiter is trying to send earlier, the events which occurred first. -
Page 46: Skip Initial State
8.4.5. Skip initial state This option allow for locking of sending of information on status of active inputs at power connection. Information on inputs will be sent to server after the first change from inactive to active status. For the events “Power” and “Battery” no selection “Skip initial state” will cause sending information about the power supply / battery on boot device regardless of the power supply / battery state. -
Page 47: Restrictions
8.5. RESTRICTIONS 8.5.1. SMS and data calls (CSD) In this section, you can define the restriction for the phone numbers from which incoming data calls and SMS commands are received. You can also specify SMS validity period and outgoing SMS limits. 8.5.1.1. - Page 48 e.g. 1234. As a result all numbers with this sequence will be authorized e.g.600123456 or 601234567. b) If modem connected to OSM.Server server will be used to send SMS, its number have to be entered on the list. 8.5.1.2. GSM modems authorized phones For connections on CSD channel the user may limit remote access to device from GSM modems.
-
Page 49: Sms Notifications
Limitation are defined by providing two values: SMS maximum number: determines maximum number of sent SMS messages per time unit (see SMS counter reset). This option protects user against sending too much of SMS messages e.g. in case of failure. SMS counter reset: This parameter determines time schedule (in minutes) according to which counter of sent SMS messages will be zeroed. -
Page 50: Events
Click on “Remove all” button to remove all numbers from table. 8.6.2. Events This tab is to configure and edit SMS messages to be sent to listed phone numbers. You may define SMS text message with reference to any event from the list (Input 1: Activation, Restore;... -
Page 51: Status
Then, for the event “Test message”, type your message and provide a period of the test message. To do this, mark “Send test every” and indicate the period of the test set out in the next field. The format of the test period field is “the total number of days, number of hours:the number of minutes”. -
Page 52: Sms Forward
8.6.4. SMS Forward The device is able to forward received SMS messages according to the specified rules. This function may be helpful for example when GSM operator sends messages with account state to SIM card installed within device. In this window you may provide up to 5 rules. -
Page 53: Serial Port Settings
8.7.1. Serial port settings The selected parameters shall correspond to RS-232 port settings in device which will be connected to the transmitter. Available parameters are shown in the table below: Parameter Value Baud rate (bits/sec) 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 Data bits Parity... -
Page 54: Advanced Port Options
For every option list of available values are provided, and they me be scrolled down after clicking on adequate arrow. The transmitter controls buffer contents in respect of meeting of determined criteria. It is performed with the following order: selected character, time, number of characters. -
Page 55: Watchdog
8.8.1. Watchdog In this section, you can enable the watchdog, a system that monitors the transmitter's operation. It can control the status of 3 transmission channels: Ethernet, GPRS and GSM. The watchdog can be enabled for each transmission channel separately by checking the box “Turn watchdog on”... -
Page 56: Phone Line
8.9. PHONE LINE The device is equipped with a PSTN phone line connector. It may be used to transmit data from an alarm control panel. Additionally transmitter may collect information from an control panel using its a phone communicator, and next transmit them via PSTN/GPRS/SMS link. -
Page 57: Report Off-Hook Condition
If transmission with two ways follows, it is necessary that operator of monitoring system received information on access to an external telephone line. Choice of this option will result in voltage drop on telephone line (longer that defined minimal time of decay) that will be signalized with an adequate message sent via GPRS. -
Page 58: Detect Off-Hook After
o Każdy komunikat od centrali alarmowej jest raportowany do serwera OSM w osobnej ramce / osobnym SMS. o If in the memory are unsent messages from the control panel, the newly dialled phone number will not be accepted. o If in the memory are unsent messages from the control panel and the memory will be disabled by changing the configuration, unsent events can be sent when the memory will be enabled again. -
Page 59: Firmware
Note: 1) For all protocols you may use following options: o [Enable SMS sending] which means that in case of no GPRS connection, data will be sent via SMS (if this mode will be accessible). o [Don’t transmit data when external phone line is available] which means that when the external PSTN line is available then it will be used during transmission from the control panel. - Page 60 Follow the following procedure: a) Launch configuration program. b) Open “Firmware” option of configuration wizard. c) Open file with new firmware (click [Open] button to locate where file is). d) Select file transmission mode: local or remote. Note: Procedure of assigning firmware to a device is analogous to programming device.
-
Page 61: Device Monitor
8.11. DEVICE MONITOR “Device Monitor” provides real-time information on device state. To use this function device must be connected to PC computer with GD-PROG cable (the switch in position DEBUG). Correct RS232 port must be chosen in “Port” field. “Device monitor” provides following information: o AC power indication o Battery power indication... -
Page 62: Events History
8.12. EVENTS HISTORY „Events history” provides information about last events stored in EPX400 device memory. EPX400 transmitter is able to save at least 5000 events. It is possible to read the history using a GPRS or RS232 connection. In the second case data can be send to PC via GD-PROG cable (the switch in position PROG). - Page 63 EPX400-xC – Manual Page 63 / 73...
-
Page 64: Device Programming
9. DEVICE PROGRAMMING Programming device possible with “GPRS transmitters configurator” configuration program described in chapter 7. CONFIGURATION PROGRAM. To program the device establish connection with a device. Depending on connection mode there are two ways for programming. 9.1. LOCAL PROGRAMMING To program a device locally follow the procedure: a) Connect PROG joint (on printed circuit) with COM computer port by way of service wire, defined in option ->... -
Page 65: The First Programming Of Device
devices saved in data base, the first operation during remote programming is proper registration of the device. This procedure has been described in OSM.Server Operation Manual. 9.2.1. The first programming of device As the device does not have defined access parameters in respect of GPRS network and OSM.Server, programming shall be begun with providing parameters. -
Page 66: Receiving Of Sms Message
10. RECEIVING OF SMS MESSAGE GPRS module receives specially prepared SMS. If received SMS is not correct it will be automatically cancelled and device will not operate any action. The device uses an encrypted protocol for transmission. If "Communication parameters lock" option is enabled (see chapter 8.1.1.7) , remote commands such as APN =, PORT =, SERVER =, etc. - Page 67 SERVER=server address If the role of the GPRS channel is sets as "Unused", this command sets the address of the server and the role GPRS channel as "Backup." If the role of the GPRS channel is DIFFERENT than "Unused" (it’s mean turned on), this command sets only the address of the server.
- Page 68 ETHCONFIG=parameter It is used to configure the Ethernet interface where the parameter can be set to: DHCP - ETH interface set in DHCP mode; IP, MASK, GATEWAY [, DNS1, DNS2] - command sets the static IP MASK, GATEWAY, and optional server DNS1 and DNS2 (if the address is given in the form of domain e.g.
-
Page 69: Led Diodes Indication
11. LED DIODES INDICATION LED diodes (4), mounted directly on printed circuit, are purposed to show current condition of the device. 11.1. LOGGING TO GSM NETWORK Once SIM card has been inserted into the device and power supply was turned on logging to GSM system follows. -
Page 70: Data Transmission
11.3. DATA TRANSMISSION During data transmission a green diode indicates data transmitting. LED Diodes Description DTMF ERR OK STATUS Green GPRS Transmission SMS Transmission 11.4. RECEIVING OF DTMF DATA STATUS LED (blue) and DTMF LED (yellow) indicate actual condition during receiving data from a control panel. -
Page 71: Programming
11.5. PROGRAMMING After detection of programming cable, diodes indicate programming mode. LED Diodes Description DTMF ERR OK STATUS Green Connected service cable Programming in CSD mode 11.6. FIRMWARE UPDATING During programming bootloader operating is indicated. If error follows during updating there is bootloader in device and another programming of device is possible. -
Page 72: Sim Card Error
11.7. SIM CARD ERROR In case of SIM card problems, device states this with ERROR LED (red) and OK LED (green). Signalling LED diode DTMF ERR OK STATUS (Green) ERROR (Red) 11.8. SYSTEM ERROR Errors may occure during device operation. An error is indicated by a permanent lighting of red LED. -
Page 73: Changelog
12. CHANGELOG Date / Version Description 25.06.2019 / v2.0 First version of the manual 06.09.2019 / v2.1 Schema improvement EPX400-xC – Manual Page 73 / 73...
