Optical Wavelength Laboratories
OPERATIONS GUIDE

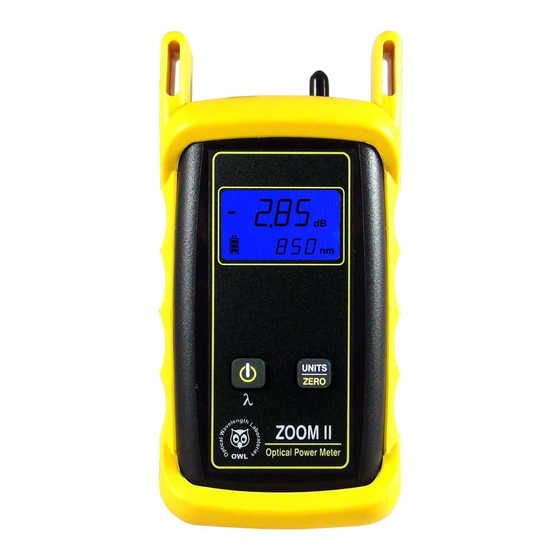

Silicon ZOOM 2 OPTICAL POWER METER
Model Numbers:
ZO2S
ZO2SV
OWL
Revision 2.1
Optical Wavelength Laboratories (OWL)
N9623 Old Hwy 12
August 27, 2021
Whitewater, WI 53190
Phone: 262-473-0643
Internet: OWL-INC.COM
OWL-INC.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Silicon ZOOM 2 and is the answer not in the manual?

Questions and answers

Summary of Contents for OWL Silicon ZOOM 2

  • Page 1 Optical Wavelength Laboratories OPERATIONS GUIDE Silicon ZOOM 2 OPTICAL POWER METER Model Numbers: ZO2S ZO2SV Revision 2.1 Optical Wavelength Laboratories (OWL) N9623 Old Hwy 12 August 27, 2021 Whitewater, WI 53190 Phone: 262-473-0643 Internet: OWL-INC.COM OWL-INC.COM...
  • Page 2: Table Of Contents

    User Controls Test Procedures Active Equipment Power Measurement Fiber Continuity Patch Cable Testing Check MM Reference Cables with a Dual OWL MM Light Source Quick Reference Guides Silicon ZOOM 2/Dual OWL MM Test Kit (P/N: KIT-Z2-D285xx) Operation/Maintenance Optional VFL Port...
  • Page 3: Introduction

    INTRODUCTION BEFORE YOU BEGIN All personnel testing optical fibers should be adequately trained in the field of fiber optics before using any fiber optic test equipment. If the user is not completely familiar with testing fiber optics, they should seek competent training. Such training can be acquired from a variety of sources, such as local hands-on training classes.
  • Page 4: Applications

    FC. A1.25mm universal connector port can be purchased for an additional charge that allows for connection to LC, MU, and other SFF connectors. The Silicon ZOOM 2 is ideal for fiber optic professionals who need to quickly measure the loss in their fiber optic links and do not require data point storage.
  • Page 5: Precautions

    PRODUCT LABEL On the back of each Silicon ZOOM 2 series optical power meter is a label similar to the one shown below containing model number, serial number, power requirements, and special cautionary information. If the unit is enclosed in its protective boot, the boot must be removed to view this label.
  • Page 6: General Features

    INTRODUCTION GENERAL FEATURES GENERAL FEATURES DETECTOR Model #: ZO-2SV Optional VFL Port - As an option, a Visual Fault Locator (VFL) can be installed. USB Charger Port - re-charges internal Lithium Polymer battery with Model #: supplied USB charger and cable. ZO-2S Universal Detector Port - includes 2.5mm ferrule adapter cap for ST, SC, and FC.
  • Page 7: Test Procedures

    Receive Power Measurement The Silicon ZOOM 2 may also be used to measure optical power levels from 1 2 3 4 5 6 7 8 9 10 11 12 1 2 3 4 5 6 7 8 9 10 11 12 a transmitter through an installed link to ensure that the Receive power at the far end is within manufacturer specifications.
  • Page 8: Fiber Continuity

    Take the Silicon ZOOM 2 optical power meter to the opposite end of the link under test, and connect into the first port. If the Silicon ZOOM 2 does not detect any optical power, the display will read “LO”. Continue connecting to subsequent optical ports until the Silicon ZOOM 2 display shows an optical power reading.
  • Page 9: Patch Cable Testing

    Silicon ZOOM 2 optical power meter, 3-jumper Reference if necessary. Method Setup Press until the wavelength on the Silicon ZOOM 2 matches the output wavelength of the light source. UNITS Press and hold for approximately 2 seconds to set the ZERO reference.
  • Page 10: Check Mm Reference Cables With A Dual Owl Mm Light Source

    STEP 1 - Connect Silicon ZOOM 2 and Dual OWL STEP 5 - Power ON the Dual OWL 850 Connect the Silicon ZOOM 2 and Dual OWL 850 together with an orange multimode patch cable as shown below. Press to power on the Dual OWL.
  • Page 11: Quick Reference Guides

    Fiber Optic Light Source: DUAL OWL 850 Thank you for your purchase of this OWL fiber optic test kit. Included in this kit is a Silicon ZOOM 2 optical power meter and a Dual OWL 850 multimode fiber optic light source. This quick reference guide provides instructions for performing a fiber optic insertion loss test.
  • Page 12 Z E R O dB m The Silicon ZOOM 2 display should change to show readings in ‘dB’, and the power reading should be approximately 0.00 dB (Figure 7). This indicates that the meter and light source have been successfully FIGURE 7 “zeroed”...
  • Page 13 PART 4 TAKE READINGS – Take the Dual OWL 850 and the mandrel-wrapped cable to one end of the link under test, and take the Silicon ZOOM 2 and its cable to the other end. Connect the Silicon ZOOM 2 and Dual OWL 850 to the link...
  • Page 14: Operation/Maintenance

    OPTIONAL VFL (visual fault locator) PORT As an option, a Visual Fault Locator (VFL) can be installed into the Silicon ZOOM 2 optical power meter in place of the charger port. The VFL is an invaluable troubleshooting tool with two important uses: Visual Fault Location.
  • Page 15: Visual Fault Location

    VISUAL FAULT LOCATION The optional VFL port in the Silicon ZOOM 2 VFL can be used as a troubleshooting tool to determine if there are breaks, micro-bends, or any other anomalies causing excessive loss within the first few feet of the fiber under test located in the splice tray. The bright red laser injects high-intensity red laser light into the near-end connector.
  • Page 16: Visual Fiber Identification

    VISUAL FIBER IDENTIFICATION The optional VFL port in the Silicon ZOOM 2 optical power meter can help take the guesswork out of identifying ports in a fiber patch panel or checking polarity of a duplex connector. Connect the VFL port to one end of a fiber link, and the high-intensity, precision- coupled red laser diode will allow the user to visually identify the port by the presence of a red glow emitting from the connector on the other end, allowing for visual port identification of fiber optic links up to 5 kilometers (3.1 miles) away.
  • Page 17: Universal Port

    UNIVERSAL PORT Universal Port The Silicon ZOOM 2 optical power meter contains a universal connector port which allows for coupling to any fiber optic connector that uses a 2.5mm ferrule (e.g. ST, SC, FC, etc.). What gives this port its flexibility is that only the ferrule is inserted into the port. Since there is no latching mechanism to speak of, any 2.5mm ferrule connector can be inserted into the same port without having to swap adapter ports.
  • Page 18: Cleaning The Detector Port

    OPERATION/MAINTENANCE CLEANING THE DETECTOR PORT Required accessories: A) Isopropyl Alcohol (91% or better) B) Round wooden toothpick with sharp point (NOTE: do not use a metal pin or needle since metal will scratch the surface of the detector) C) Cotton swab D) Jeweler’s loupe (10x magnification recommended) E) Compressed Air (not shown) Place a small amount of cotton from the swab onto the wooden...
  • Page 19: Cleaning The Optional Vfl Port

    OPERATION/MAINTENANCE CLEANING THE OPTIONAL VFL PORT This cleaning procedure applies to the optional VFL port on the Silicon ZOOM 2 optical power meter. For more information about cleaning the DETECTOR port on the Silicon ZOOM 2, see page 23. Required Accessories: Isopropyl alcohol (91% or better) In-adapter fiber optic cleaning accessories, such as 2.5mm cleaning swabs or 2.5mm HUXCleaner™...
  • Page 20: Appendices

    Repair. Repair of this unit by unauthorized personnel is prohibited, and will void any warranty associated with the unit. Cleaning. For accurate readings, the optical connectors on the Silicon ZOOM 2 and the connectors on the patch cords should be cleaned prior to attaching them to each other.
  • Page 21: Optional Upgrade Information

    Visual Fault Locator Port Upgrade The Silicon ZOOM 2 optical power meter may be upgraded to include an optional visual fault locator (VFL), useful for locating bends, breaks, and other anomalies in the near-end splice tray, as well as visual fiber identification up to 5km away!
  • Page 22: Link Budget Calculation Worksheet

    LINK BUDGET CALCULATION WORKSHEET Operating Wavelength Fiber Type Calculate System Attenuation Fiber Loss at Operating Wavelength (Distance x Fiber Loss) Total Cable Distance Individual Fiber Loss (at operating wavelength) dB/km Total Fiber Loss Connector Loss (Connector Loss x Connector Pairs) Individual Connector Loss Number of Connector Pairs Total Connector Loss...
