HPI Racing Venture Instruction Manual page 7

5

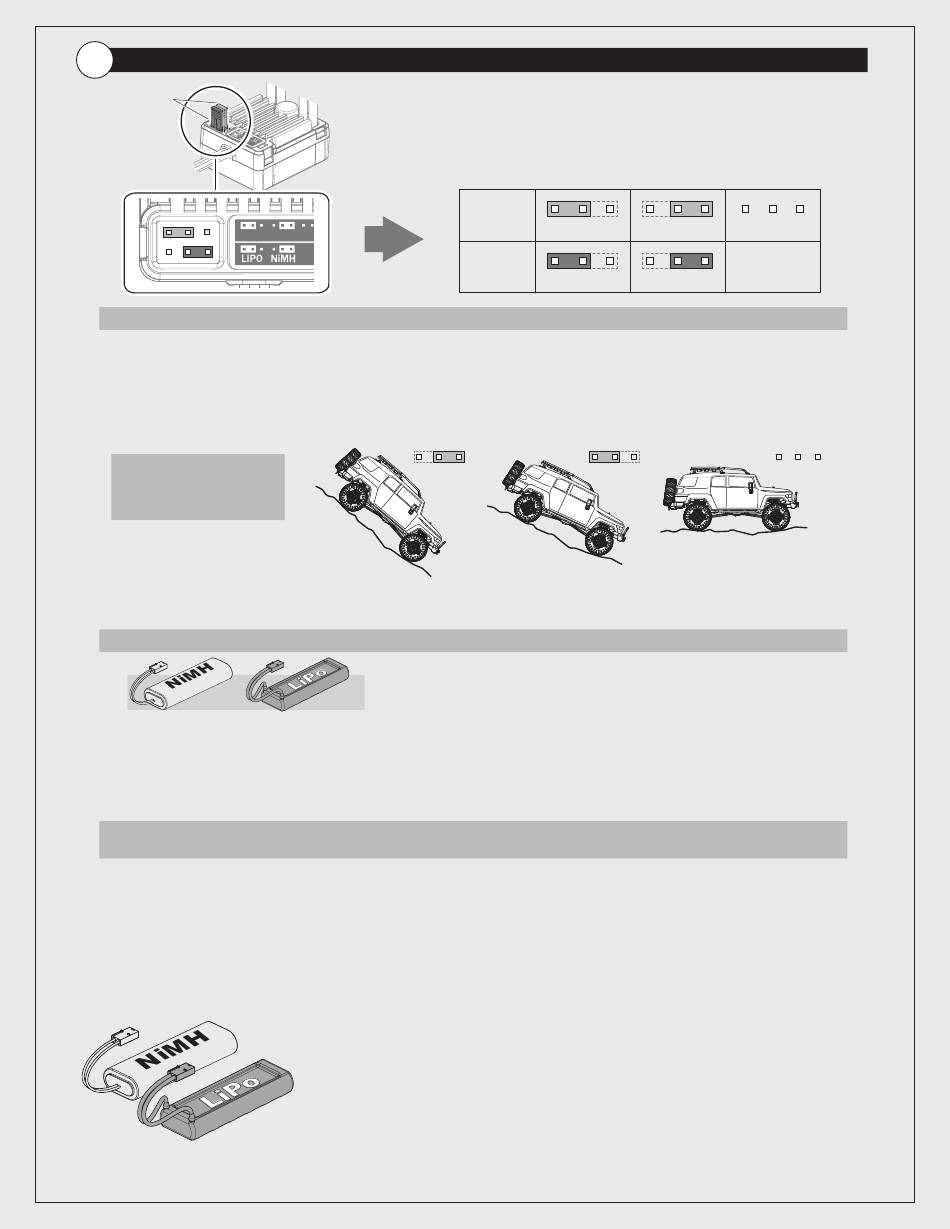

ESC Setup
Jumper
80%DB 100%DB DB OFF
Drag Brake Function
This function will maintain a smooth controlled speed while descending. When the throttle position is at neutral, brakes will be applied automatically. Additional
braking can be applied manually as needed for extreme descents. Once throttle position is returned to neutral, HDC will continue to function.
Recommended Settings
Lipo Battery Mode LiPo Akku Modus Mode batterie LiPo
If the power is cutting off and on (pulsing) while driving, the LiPo battery cutoff has been activated in the speed control. Stop driving the car im-
mediately and recharge or replace the battery.
Low voltage cut-off protection
If the voltage of the battery pack is lower than the threshold for 2 seconds, the ESC will enter the protection mode.
When the car stops, the red LED blanks on the ESC to indicate that the low voltage cut-off protection has been activated.
The ESC is programmed with the use of jumpers to select setting.
(Tweezers are recommended to plug in the jumpers)
Drag Brake
Drag Brems
Frein de traînée
80% Drag Brake 100% Drag Brake
ドラッグブレーキ
Battery type
Akkutyp
Type de batterie
LiPo NiMH
バッテリータイプ
100%
Steep and rough
terrain.
There are two battery modes to choose from (NiMH or LiPo). Factory setting is set to NiMH mode.
5-9 cells
Output reduces to 50% at 4.5V. ESC cuts off at 4.0V when battery cannot supply enough voltage.
NiMH
2S LiPo
Output reduces to 50% at 6.5V. ESC cuts off at 6.0V when battery cannot supply enough voltage.
Output reduces to 50% at 9.75V. ESC cuts off at 9.0V when battery cannot supply enough voltage.
3S LiPo
Drag Brake
80% Drag Brake 100% Drag Brake
Battery type
LiPo
Drag Brake Drag Brake
Drag Brems Drag Brems
Frein de traînée Frein de traînée
Drag Brake Off 80% Drag Brake 80% Drag Brake
ドラッグブレーキ ドラッグブレーキ
Battery type Battery type
Akkutyp Akkutyp
Type de batterie Type de batterie
LiPo LiPo
バッテリータイプ バッテリータイプ
80%
Moderately steep terrain
LiPoバッテリー設定
10
Drag Brake Off
NiMH
100% Drag Brake 100% Drag Brake Drag Brake Off Drag Brake Off
NiMH NiMH
OFF
Higher speeds. Open trail driving
