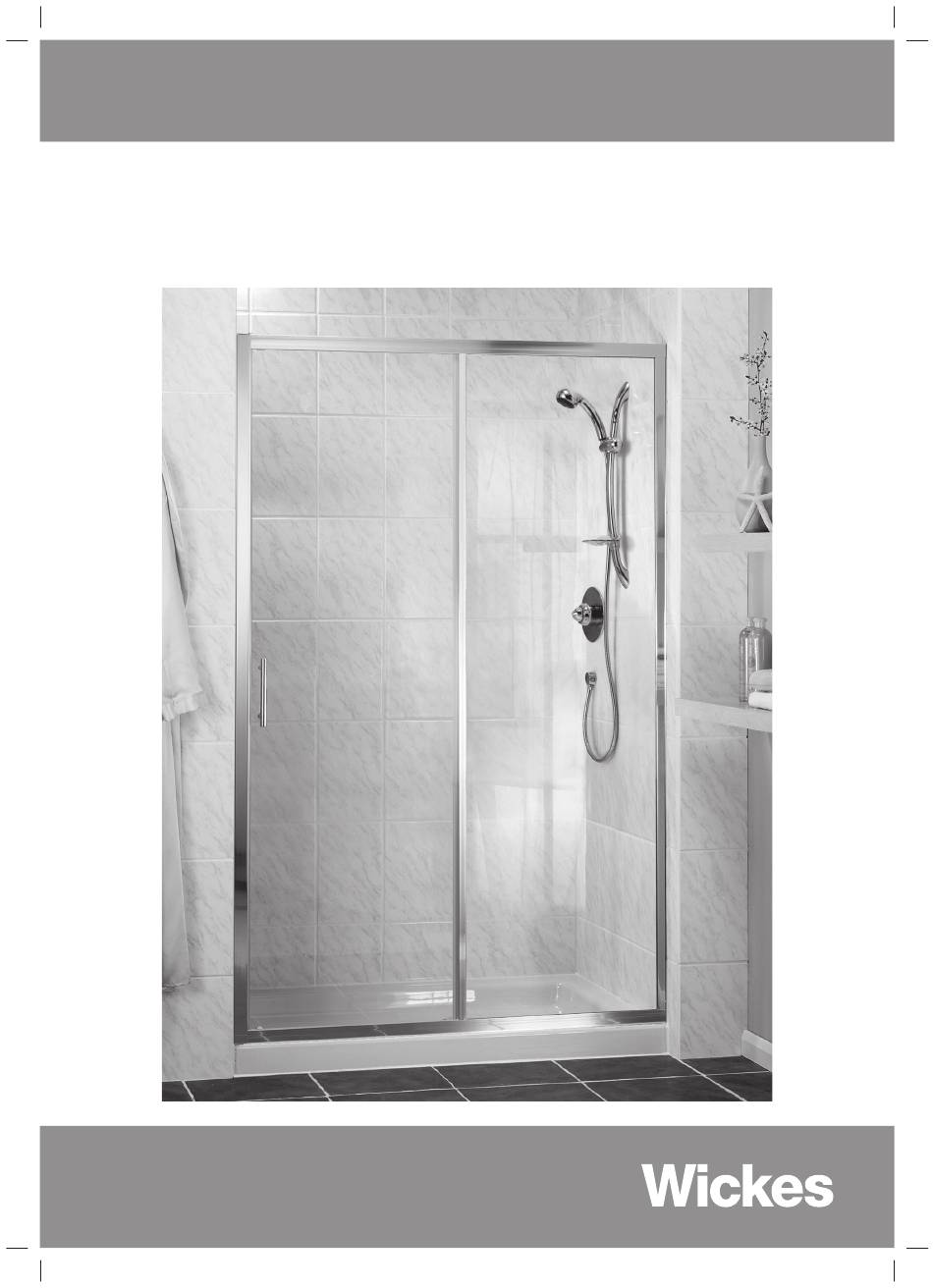

- Page 1 Step-by-Step Installation Instructions for Sliding Door (217-005) Customer helpline number: 01604 633607 8892_Step_By_Step_Sliding Door_V3.indd 1 8892_Step_By_Step_Sliding Door_V3.indd 1 1/9/10 17:54:01 1/9/10 17:54:01...
-
Page 2: Before Starting
Step-by-Step Installation Instructions for Sliding Door (217-005) Before Starting: CAUTION! Before drilling into any walls, check that there are no hidden cables or Please read and understand these pipes. Exercise great care when using power instructions. Not following these instructions tools near water. -
Page 3: Parts List
Step-by-Step Installation Instructions for Sliding Door (217-005) Parts list: H. 4 x Blanking pieces (various) A. 1 x Sliding glass panel 2 x Door knobs & Sealing washers B. 1 x Fixed glass panel 16 x 30mm screws (with frame upright pre-installed) 6 x 10mm screws C. - Page 4 Step-by-Step Installation Instructions for Sliding Door (217-005) STEP-BY-STEP INSTRUCTIONS Using a good quality spirit level, ensure the shower tray (or base of the shower) is level on all sides. Decide which side you wish the sliding door to be and with the profi le facing outwards, pre- assemble the frame;...
- Page 5 Step-by-Step Installation Instructions for Sliding Door (217-005) Drill the 8 marked locations with a 6mm masonry drill bit Fig.6. for a wall plugs. Insert the wall plug into the drilled hole, using the rubber mallet, ensuring a fl ush fi tting with the wall surface.
- Page 6 Step-by-Step Installation Instructions for Sliding Door (217-005) 14. Loosely screw the panel assembly to the corresponding end frame channel using 6 x 10mm screws (3 each side), complete with 6 screw-cap washers. Check horizontal and vertical levels of the completed assembly using the spirit level, and then tighten the upper and lowermost screws.
- Page 7 21. Insert blanking plates as required into their corresponding positions Figs.17 & 18. (Fixing should be completed using good quality, Wickes clear silicone. 22. Making sure the room is well ventilated; fi nish off by applying silicone sealant as shown in Fig.19.
-
Page 8: Maintenance
These instructions should be retained by the end user for future reference. Thank you for choosing a Wickes product if you have any diffi culties in installing this product or in the unlikely event that there are parts missing, please call our Customer Helpline number...
