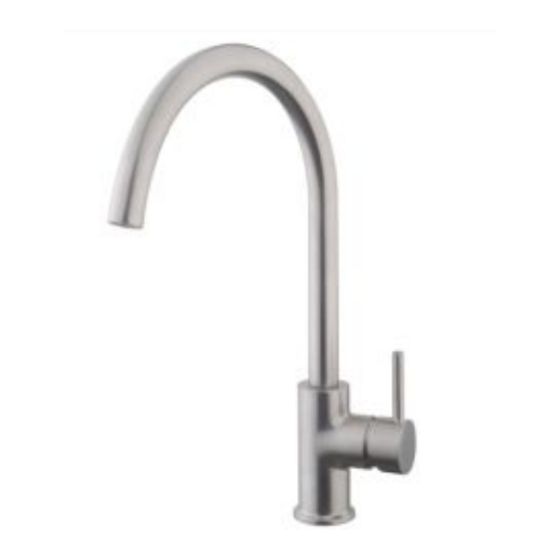

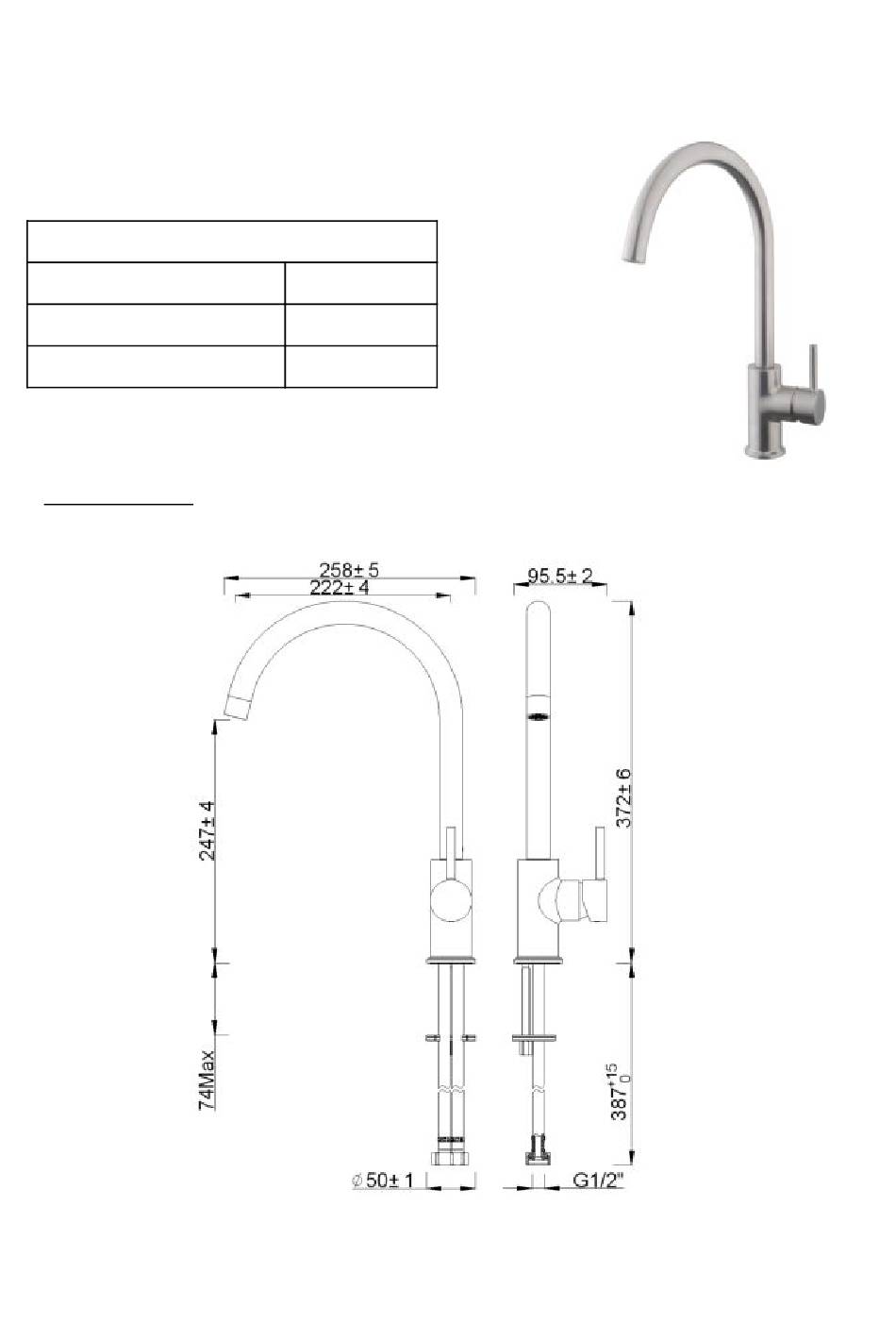

- Page 1 170098 - Fiora Mono mixer Useful Information Minimum operating pressure 0.3 bar Maximum operating pressure 5 bar Guarantee Length 5 Years Technical Diagram...
- Page 2 Exploded Diagram Spares Item Number Supplier Ref Description Quantity Available P67-BN1 Indice SC5-4SN Screw 167024-H-BN1 Handle S278-BN1 Valve Cover N31-G Cartridge Clamp LT35D-11 Cartridge Assembly 177005-01-BN1 Tap Body OR074 O ring 177005-N3 Adaptor OR186 O ring OR109 O ring 177005-N1 Adaptor 177005-N2 Block Ring...
- Page 3 OR111 O ring N28-M Fixing kit BZG10-1/2"-450 Braided Connectors Flow Rates...
- Page 4 What should I do if my tap is dripping/leaking? Cleaning the valve (if water dripping from tap) Before carrying out any maintenance, turn off the mains water supply. (1). Remove the Braided connectors(b) from the tap body(a). (2) Press the button in and pull the spout(c) vertically until remove the spout(c). (3) Remove the cap(d), grub screw(e), handle(f), cover(g) and retaining nut(h).
