INSTALLATION

3.1

REQUIREMENTS OF INSTALLATION LOCATION

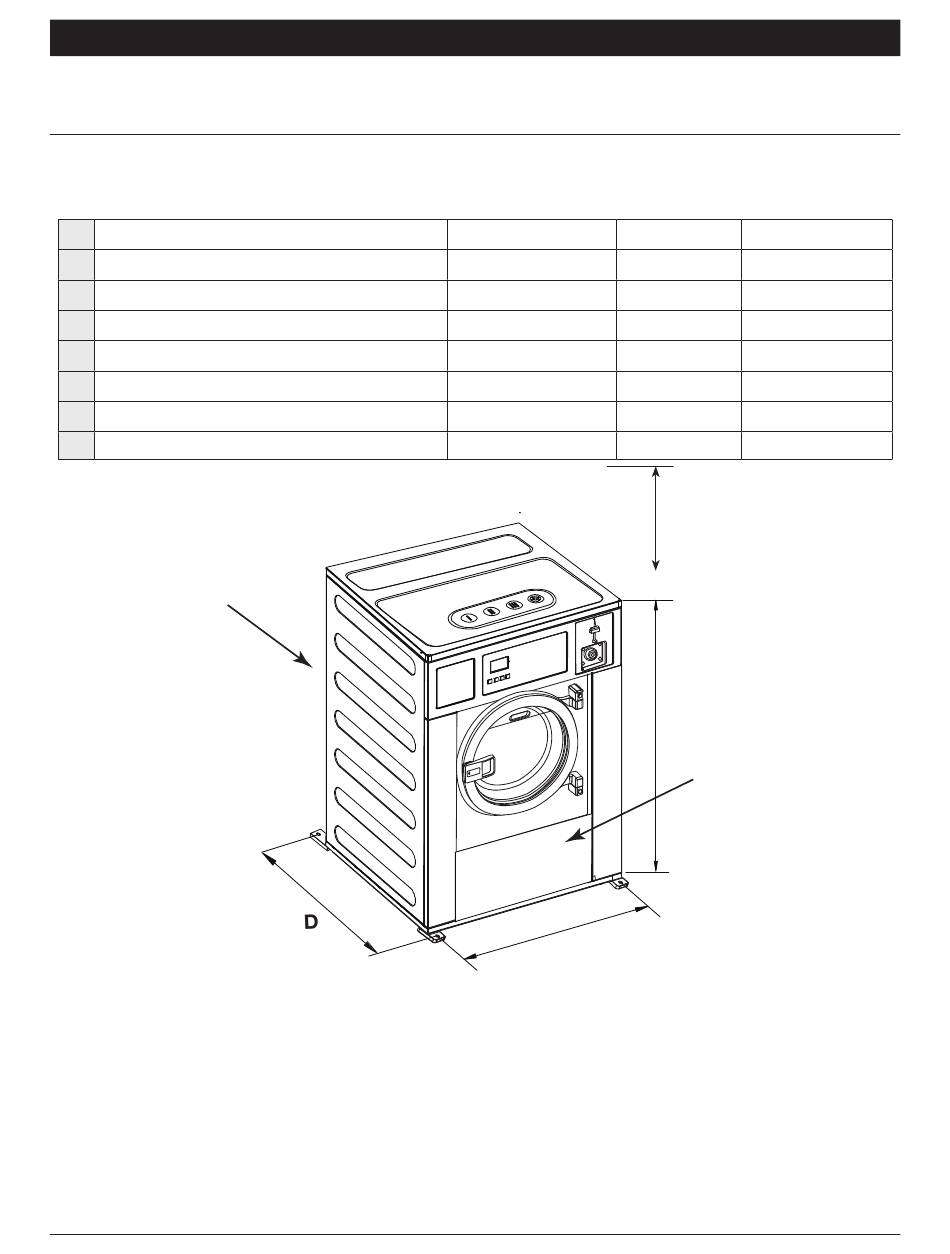

The machine must be installed meeting the minimum distances specified below to guarantee the proper operation and
maintenance access of the machine.
A Working area in front of machine - in (mm)
B Maintenance area behind machine - in (mm)
C Width - in (mm)
D Depth - in (mm)
E Height - in (mm)
F Distance between machines - in (mm)
G Minimum distance above machines - in (mm)
B
®/™ ©2022 Unity Laundry Systems. All rights reserved.
UTS29 UTS40
39.4 (1,000) 39.4 (1,000)
31.5 (800) 31.5 (800)
31.5 (800) 34.6 (880)
32.6 (830) 34.2 (870)
46.6 (1,184) 55.1 (1,400)
0.75 (19) 0.75 (19)
36 (914) 36 (914)
C
UTS62
39.4 (1,000)
31.5 (800)
45.4 (1152)
40.9 (1038)
58.4 (1,484)
0.75 (19)
36 (914mm)
G
E
A
F
