2. Hardware Installation Instructions

2.1 PCI Interfaced Analog Modem Card

1) Open PC case and insert PCI Card into an available PCI slot.
2) Close PC case, then plug one end of RJ-11 cables into modem's LINE jack and the other end into
telephone wall jack.

2.2 RS232 Analog Modem

1) Connect modem and PC with RS232 cable.
2) Plug one end of RJ-11 cable into modem's LINE jack and the other end into telephone wall jack.
3) Plug in AC power adapter.
2.3 Pocket sized RS232 and USB Analog Modem
1) Connect modem and PC with RS232/USB cable.
2) Plug one end of RJ-11 cable into modem's LINE jack and the other end into telephone wall jack.

3. Software Driver Installation

3.1 Modem Software Driver Installation Procedures

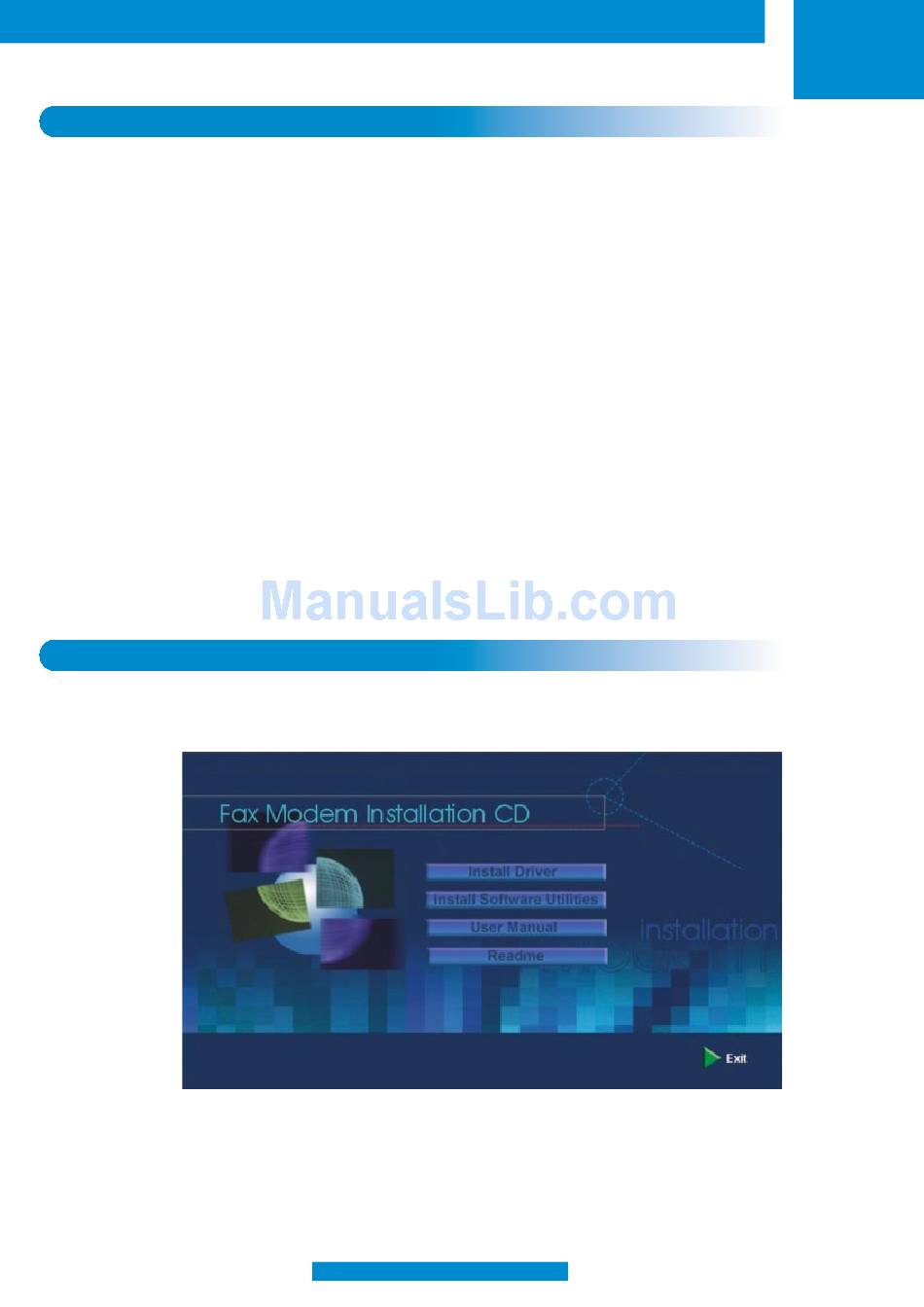

Insert FAX Modem Installation CD into CD-ROM drive then window below will appear.
56K Analog Modem 4
