EJ78X-1 / EJ79X-1 Transport Chair
Operation Manual
EJ78X-1-INS-LAB-RevD18
EJ78X-1 / EJ79X-1 Transport Chair user and attendant:
Read this manual before operating the Transport Chair.
Save this manual for future reference.
The most current version of this manual can be found online at
www.grahamfield.com.
Advertisement
Table of Contents
Related Manuals for Everest & Jennings EJ78X-1
Summary of Contents for Everest & Jennings EJ78X-1
- Page 1 EJ78X-1 / EJ79X-1 Transport Chair Operation Manual EJ78X-1-INS-LAB-RevD18 EJ78X-1 / EJ79X-1 Transport Chair user and attendant: Read this manual before operating the Transport Chair. Save this manual for future reference. The most current version of this manual can be found online at...
-
Page 2: Table Of Contents
CASTERS ..........................10 CROSSBRACE ........................10 FOOTREST—DETACHABLE, SWINGAWAY ..............11 5 TRANSPORTING THE TRANSPORT CHAIR ................. 12 PREPARING THE EJ78X-1 / EJ79X-1 FOR TRANSPORT ..........12 6 MAINTENANCE ........................14 7 TROUBLESHOOTING ......................17 8 LIMITED WARRANTY ......................18 9 INDEX ............................19... -
Page 3: Introduction
Transport Chair, fitted to their anatomy, without the need of customization or alteration to the center of gravity. The EJ78X-1 / EJ79X-1 Transport Chair is intended for indoor and/or outdoor use. The Transport Chair is intended to be propelled by an attendant at all times, who should remain behind the Transport Chair when the user is being positioned or the Transport Chair is in use. -
Page 4: Important Safety Precautions
WARNINGS WARNING: The EJ78X-1 / EJ79X-1 Transport Chair maximum weight capacity is 250 lb (113 kg), EVENLY DISTRIBUTED. WARNING: To avoid possible tilt hazard, do not leave user unattended. Attendant must always be behind and in control of Transport Chair when user is being positioned or Transport Chair is in use. - Page 5 WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov. WARNING: GF Health Products, Inc. specifically disclaims responsibility for any personal injury or property damage which may occur during any use which does not comply with federal, state, or local laws or ordinances. EJ78X-1-INS-LAB-RevD18...
-
Page 6: Operation

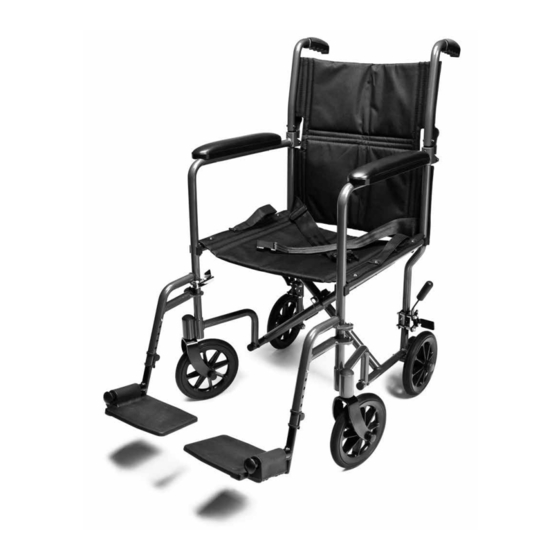

3 OPERATION GETTING STARTED Please familiarize yourself with main components, identified in EJ78X-1 / EJ79X-1 Transport Chair illustration below. push handle back upholstery hand grip armpad upper backpost positioning belt carrying strap upper back release paddle / handle fixed arm lower backpost seat upholstery wheel lock crossbrace (with serial number label) footrest rear caster tipping lever frame front caster footplate front caster fork... -
Page 7: Handling Tips
HANDLING TIPS The Everest & Jennings EJ78X-1 / EJ79X-1 Transport Chair has been designed and engineered to perform as a stable and well balanced unit when used for its intended purpose. However, it is possible to tip the Transport Chair over if it is used improperly. We urge both user and attendant to learn the characteristics of your Transport Chair. -
Page 8: For Attendant: Tilting
Curbs and steps should only be negotiated with the assistance of an attendant. The following are suggestions only for curb negotiation. It is important for you to develop your own safe technique that is best suited to your abilities. EJ78X-1-INS-LAB-RevD18... - Page 9 7. Tilt the Transport Chair back to its balance point ; this will lift the front casters off the curb. Take several small steps backward until the front casters have cleared the curb. 8. Turn the Transport Chair around, place one foot on the tipping lever, and gradually lower the front casters to the ground. EJ78X-1-INS-LAB-RevD18...
-
Page 10: Adjustments
Check the crossbraces to ensure that the bolts and nuts that fasten the crossbraces in the center of the Transport Chair are secure (crossbraces should be loose enough to fold easily, yet snug enough to take up excess play). Use the included tools to tighten the crossbraces. EJ78X-1-INS-LAB-RevD18... -
Page 11: Footrest-Detachable, Swingaway
2 inches. WARNING: The footplates’ lowest point should footplate extension, adjust length be no closer to the ground than 2 inches, to permit proper clearance. WARNING: Ensure that footplates are securely clamped before occupying or operating Transport Chair. EJ78X-1-INS-LAB-RevD18... -
Page 12: Transporting The Transport Chair
5 TRANSPORTING THE TRANSPORT CHAIR PREPARING THE EJ78X-1 / EJ79X-1 FOR TRANSPORT WARNING: This Transport Chair does not offer seating or occupant restraint equivalent to the seat provided in a motor vehicle! To increase your safety while traveling in a motor vehicle, always transfer to the vehicle seat and use the restraint provided by the vehicle manufacturer. - Page 13 3. Install footrests. WARNING: Ensure Transport Chair is unfolded as instructed and that upper back is locked into place, seat is completely open, and footrests are locked in place before occupying or operating Transport Chair. EJ78X-1-INS-LAB-RevD18...
-
Page 14: Maintenance
Check caster bearings (distributor) ✔ List of tools The tools and cleaning supplies listed will assist in the procedures outlined in this section. 30 weight oil (available at most auto parts stores) Phillips screwdriver soft cloth mild soap and water solution EJ78X-1-INS-LAB-RevD18... - Page 15 Ensure that back folding mechanisms are secure, work correctly, and that there is no play in back fold points. Contact your Graham-Field authorized distributor if you observe back play, cracking or peeling paint or plating. EJ78X-1-INS-LAB-RevD18...
- Page 16 Ensure that stems are firmly attached to forks, and that forks and stems are not bent. Evaluate all threads, locking nuts and bearings. Check caster bearings Have your Graham-Field authorized distributor check front and rear caster bearings at least every six months. EJ78X-1-INS-LAB-RevD18...
-
Page 17: Troubleshooting
Graham-Field authorized distributor at least every six months. WARNING: Unauthorized modification or the use of non-Everest & Jennings replacement parts could change the structure of the Transport Chair, void the warranty, and create a hazardous condition, which could result in serious personal injury. EJ78X-1-INS-LAB-RevD18... -
Page 18: Limited Warranty
International, federal and state regulations govern specific requirements for freight claims. Failure to abide by those regulations may result in a denial of the freight claim. GF will assist you in filing the freight claim. 3) Claims for any short shipment must be made within three (3) days of the invoice date. EJ78X-1-INS-LAB-RevD18... -
Page 19: Index
Curb ascent facing backward (for attendant) 9 Curb ascent facing forward (for attendant) 9 Curb descent (for attendant) 9 Curbs and steps, negotiating 8 EJ78X-1 / EJ79X-1 maximum weight capacity 4 EJ78X-1 / EJ79X-1 Transport Chair, illustration 6 Footplate extension length, adjust 11 Footrest, attach 11... - Page 20 1.770.368.4700 Information contained herein is subject to change. The most current and complete product information can be found on our website. www.grahamfield.com © 2010, GF Health Products, Inc. All Rights Reserved. E&J, Everest & Jennings, and Graham-Field are trademarks of GF Health Products, Inc., One Graham-Field Way, Atlanta GA 30340-3140 GF Health Products, Inc.
