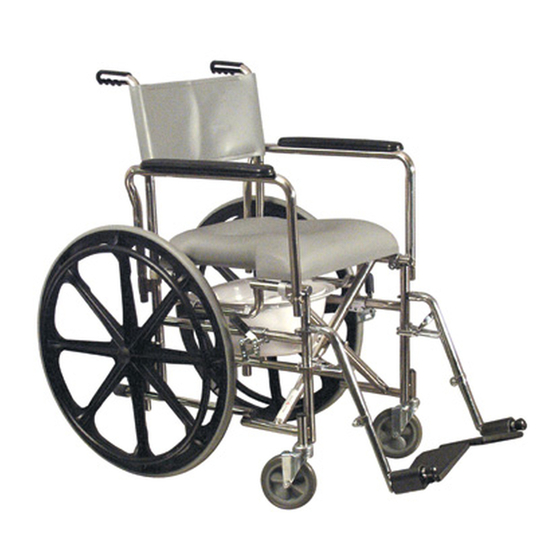

- Page 1 Rehab Shower Commode Operation Manual 12022-12023-INS-LAB-RevD18 Rehab Shower Commode user and attendant: Read this manual before operating the Rehab Shower Commode. Save this manual for future reference. The most current version of this manual can be found online at www.grahamfield.com.
-
Page 2: Table Of Contents
WARNING: Rehab Shower Commode user and attendant: Do not operate the Rehab Shower Commode without first reading and understanding this manual. If you do not understand the warnings, cautions, and instructions provided herein, contact your healthcare professional, GF authorized distributor, or technical representative before proceeding with the use of this product;... -
Page 3: Introduction
1 INTRODUCTION Thank you for choosing an Everest & Jennings product. We at GF Health Products, Inc. wish to assure you of our continuing commitment to provide innovation and quality in our products. Important safety, operating, and maintenance instructions that warrant the attention of both user and attendant are included in this operation manual. -
Page 4: Important Safety Precautions
WARNINGS WARNING: Rehab Shower Commode models 12022010, 12022011, 12022013, 12022110 and 12022111 have a maximum weight capacity of 250 lb (113 kg), EVENLY DISTRIBUTED. Rehab Shower Commode models 12023010 and 12023110 have a maximum weight capacity of 300 lb (136 kg), EVENLY DISTRIBUTED. - Page 5 WARNING: Always engage wheel locks before transferring, using a wheelchair lift or using an elevator. WARNING: Ensure that Rehab Shower Commode is on a stable, level surface and engage wheel locks before and during transfer. WARNING: Do not lean over the top of the Rehab Shower Commode back. This could cause the Rehab Shower Commode to tip over.
-
Page 6: Operation
3 OPERATION GETTING STARTED Please familiarize yourself with main components, identified in Rehab Shower Commode illustration below. handgrip backpost / push handle back upholstery " low back) armpad splash pail padded commode seat handrim removable full-length arm arm release button wheel lock footrest commode pail... - Page 7 Install seat hooks J-hook curved seat edge 1. Place the seat, cushioned side down, on a flat surface. seat, 2. Assemble a seat hook to each corner of the seat as cushioned side down shown at right in “install seat hooks”. The L-hook must be located as shown at right.
-
Page 8: Operation
OPERATION OPERATING THE WHEEL LOCKS Engage wheel locks Grasp both rubber-tipped wheel lock levers and push forward completely. Rear wheels will be locked in place. Disengage wheel locks Grasp both rubber-tipped wheel lock levers and pull back completely. Rear wheels will now be free to roll. -
Page 9: Handling Tips
HANDLING TIPS The Everest & Jennings Rehab Shower Commode has been designed and engineered to perform as a stable and well balanced unit when used for its intended purpose. However, it is possible to tip the Rehab Shower Commode over if it is used improperly. We urge both user and attendant to learn the characteristics of your Rehab Shower Commode. -
Page 10: For Attendant: Tilting
FOR ATTENDANT: TILTING Tilting the Rehab Shower Commode backward is generally required to negotiate such obstacles as ramps, inclines, thresholds, stairs and door sills. Tilting should only be performed by an attendant. To tilt the Rehab Shower Commode backward: 1. Grasp the push handles securely and ensure that the hand grips are firmly attached. - Page 11 For attendant: threshold ascent facing forward 1. Ensure that the hand grips are securely fastened and do not turn or slip. 2. Stand behind the Rehab Shower Commode, holding the hand grips, facing the threshold. 3. Advise the user that you will be tilting backward and remind the user to lean back.
-
Page 12: Adjustments
4 ADJUSTMENTS Tools required for adjustments in this section: included wrench and hex key The Rehab Shower Commode offers several adjustments to make it easier and more comfortable to operate. Section 6, MAINTENANCE, offers preventive maintenance suggestions for keeping your Rehab Shower Commode in excellent condition; ensure all components are in excellent condition before adjusting. -
Page 13: Transporting The Rehab Shower Commode
5 TRANSPORTING THE REHAB SHOWER COMMODE PREPARING THE REHAB SHOWER COMMODE FOR TRANSPORT WARNING: The Rehab Shower Commode does not offer seating or occupant restraint equivalent to the seat provided in a motor vehicle! To increase your safety while traveling in a motor vehicle, always transfer to the vehicle seat and use the restraint provided by the vehicle manufacturer. -
Page 14: Maintenance
6 MAINTENANCE Protect your E&J Rehab Shower Commode by having it serviced regularly. Proper care and maintenance are essential to keep your Rehab Shower Commode in safe working condition. Periodic inspection, adjustment, and replacement of worn parts will provide many years of superb performance. - Page 15 List of tools The tools and cleaning supplies listed will assist in the procedures outlined in this section. 30 weight oil (available at most auto parts stores) Phillips screwdriver soft cloth mild soap and water solution General care Always evaluate the overall operation of your Rehab Shower Commode. It should function with ease and should travel straight without excessive drag or pull to one side.
- Page 16 Check wheel lock engagement Check wheel lock engagement at least once a week. If a wheel lock is worn or damaged, have your GF authorized distributor replace it immediately. Inspect the hardware for looseness or signs of wear. Ensure that the locking mechanism operates smoothly. The locking assembly should be tight enough so that the wheel can not rotate or the lock slip.
-
Page 17: Troubleshooting
Rehab Shower Commode, void the warranty, and create a hazardous condition, which could result in serious personal injury. 8 SPECIFICATIONS Info: All dimensions are given in inches unless otherwise specified. Model Description 12022010 12022011 12022013 12022110 12022111 12023010 12023110 Seat Width 17" 17" 17"... -
Page 18: Limited Warranty
9 LIMITED WARRANTY SCOPE OF WARRANTY GF Health Products, Inc. (“GF”) warrants to the Original Purchaser only that it will replace or repair components, at GF’s sole discretion, that are defective in material or workmanship under normal use and service. All warranties are conditioned upon the proper use of the products strictly in accordance with good commercial practice and applicable GF instructions and manuals, including proper use and maintenance. -
Page 19: Index
9 INDEX Adjustments 12 Ramps and Inclines 10 Arms, detachable, remove and install 8 Reassembly after transporting 13 Assembly 6 Safety precautions 4 Backposts, check 16 Safety statements, significance 3 Back / upholstery assembly, install 6 Seat hooks, install 7 Back upholstery, cleaning 15 Balance 9 Threshold ascent facing backward (for attendant) 11... - Page 20 1.770.368.4700 Information contained herein is subject to change. The most current and complete product information can be found on our website. www.grahamfield.com © 2014, GF Health Products, Inc. All Rights Reserved. E&J, Everest & Jennings, and Graham-Field are trademarks of GF Health Products, Inc., One Graham-Field Way, Atlanta GA 30340-3140 GF Health Products, Inc.
