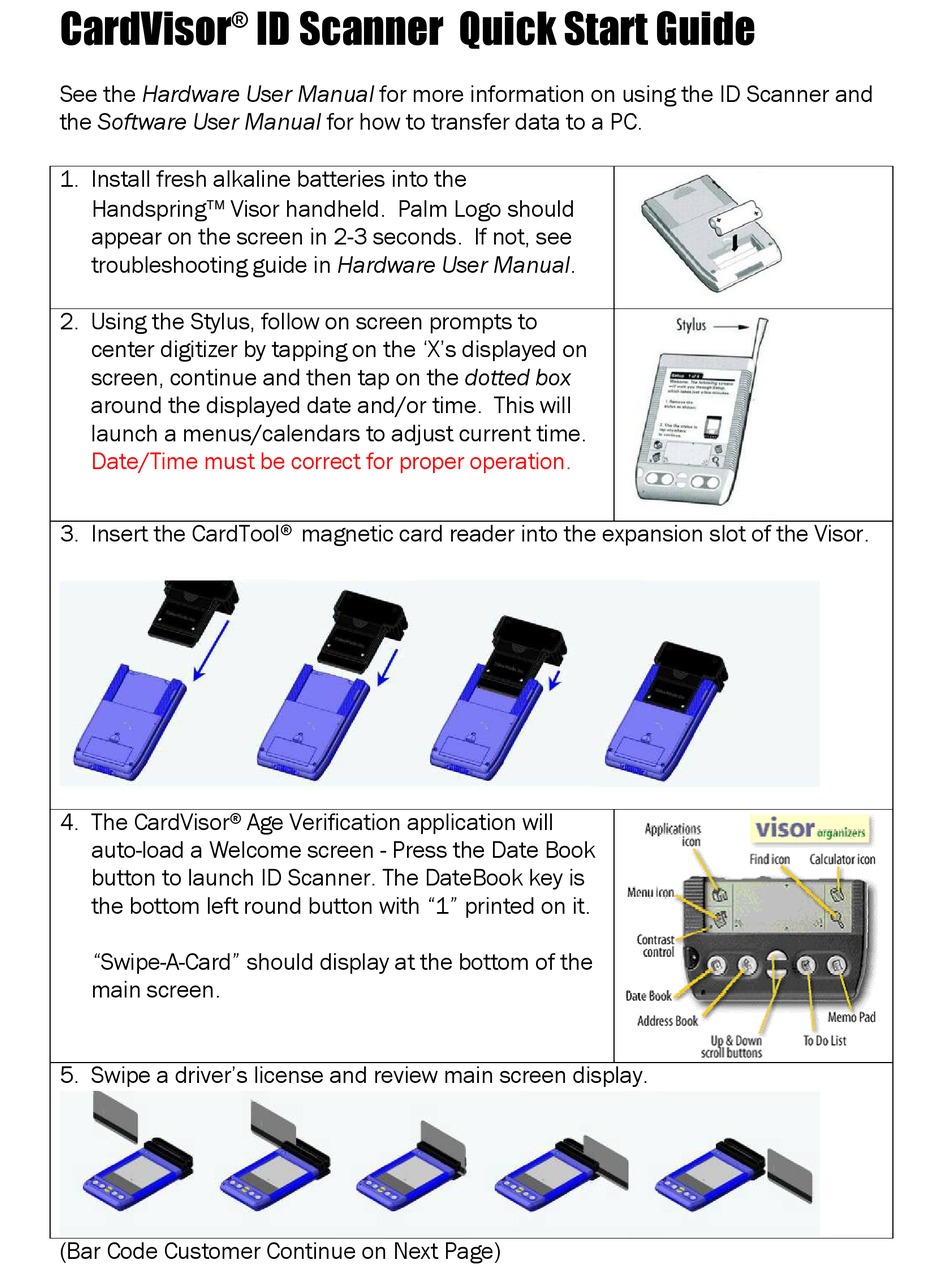

CardVisor

See the Hardware User Manual for more information on using the ID Scanner and

the Software User Manual for how to transfer data to a PC.

1. Install fresh alkaline batteries into the

Handspring Visor handheld. Palm Logo should

appear on the screen in 2-3 seconds. If not, see

troubleshooting guide in Hardware User Manual.

2. Using the Stylus, follow on screen prompts to

center digitizer by tapping on the 'X's displayed on

screen, continue and then tap on the dotted box

around the displayed date and/or time. This will

launch a menus/calendars to adjust current time.

Date/Time must be correct for proper operation.

3. Insert the CardTool

4. The CardVisor

auto-load a Welcome screen - Press the Date Book

button to launch ID Scanner. The DateBook key is

the bottom left round button with "1" printed on it.

"Swipe-A-Card" should display at the bottom of the

main screen.

5. Swipe a driver's license and review main screen display.

(Bar Code Customer Continue on Next Page)

ID Scanner Quick Start Guide

magnetic card reader into the expansion slot of the Visor.

Age Verification application will

Table of Contents

Need help?

Do you have a question about the CardVisor ID Scanner and is the answer not in the manual?

Page 1 CardVisor ® ID Scanner Quick Start Guide See the Hardware User Manual for more information on using the ID Scanner and the Software User Manual for how to transfer data to a PC. 1. Install fresh alkaline batteries into the Handspring...
Page 2 6. Place ID Scanner into Bar Code Reader Cradle. 7. Secure with Tie Down Cable 8. Press the “Address” button to Scan a 2D Bar Code license. ”Scan -A-Card” should display at the bottom of the main screen. Wait for 3 beeps, insert a licenses and withdraw.
