IWMR-3003
Industrial Multifunction VPN Router w/up to 2x WiFi 11ac + up to 2
LTE 4G + 2/4 serial ports + 3 Gigabit Ethernet Switch
IMR-3003
Industrial Multifunction VPN Router w/up to 2 LTE 4G + 2/4 serial
ports + 3 Gigabit Ethernet Switch
IWAP-3003
Industrial Multifunction VPN Router w/up to 2x WiFi 11ac + 2/4
serial ports + 3 Gigabit Ethernet Switch
User Manual (Hardware)
Dec. 2021
Advertisement
Table of Contents
Related Manuals for Lantech IWMR-3003
Summary of Contents for Lantech IWMR-3003

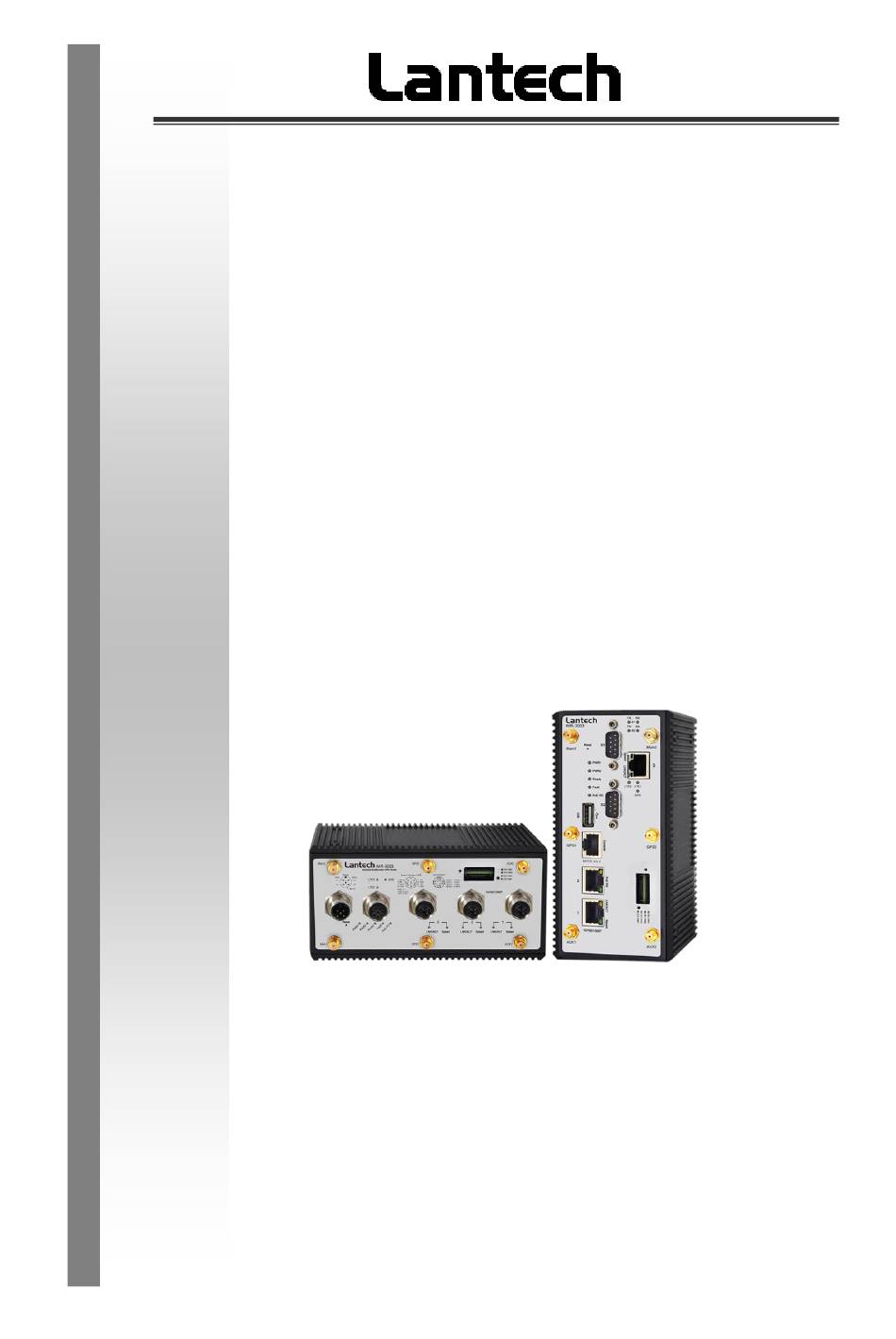

- Page 1 IWMR-3003 Industrial Multifunction VPN Router w/up to 2x WiFi 11ac + up to 2 LTE 4G + 2/4 serial ports + 3 Gigabit Ethernet Switch IMR-3003 Industrial Multifunction VPN Router w/up to 2 LTE 4G + 2/4 serial ports + 3 Gigabit Ethernet Switch...
- Page 2 Recommendation for Shielded network cables STP cables have additional shielding material that is used to reduce external interference. The shield also reduces the emission at any point in the path of the cable. Our recommendation is to deploy an STP network cable in demanding electrical environments.
- Page 3 Lantech Communications Global Inc. Products offered may contain software which is proprietary to Lantech Communications Global Inc. The offer or supply of these products and services does not include or infer any transfer of ownership.
- Page 4 FCC Warning This Equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy.
-
Page 5: Table Of Contents
Content Hardware Description ......3 1.1. Physical Dimension ........3 1.2. IP Protection ..........8 1.3. Front Panel ..........11 1.4. LED Indicators ..........14 Hardware Installation – RJ45 Models . 16 2.1. Hardware installation ......... 16 2.2. DIN-Rail Mounting ........16 2.3. - Page 6 Console Management ......34 4.1. Connecting to the Console Port ....34 4.1.1. RJ45 Models ..........34 4.1.2. M12 models ..........35 4.2. Login in the Console Interface....35...
-
Page 7: Hardware Description
1. Hardware Description Lantech IWMR-3003 / IMR-3003 / IWAP-3003 are next generation industrial multi- function VPN routers. In this paragraph, it will describe the Industrial multi-function VPN router’s hardware spec, port, cabling information, and wiring installation. 1.1. Physical Dimension IWMR-3003, RJ-45 model Metal case. - Page 8 82 (W) x 172 (D) x 152 (H) mm (WV model) IWMR-3003, M12 model Metal case. IP-43, 74(W) x 122(D) X 152 (H) mm...
- Page 9 IMR-3003, RJ-45 model Metal case. IP-30, 74 (W) x 114 (D) x 152 (H) mm (12V/24V model) 82 (W) x 172 (D) x 152 (H) mm (WV model)
- Page 10 IMR-3003, M12 model Metal case. IP-43, 74(W) x 122(D) X 152 (H) mm IWAP-3003, RJ-45 model Metal case. IP-30, 74 (W) x 114 (D) x 152 (H) mm (12V/24V model)
- Page 11 82 (W) x 172 (D) x 152 (H) mm (WV model) IWAP-3003, M12 model Metal case. IP-43, 74(W) x 122(D) X 152 (H) mm...
-
Page 12: Ip Protection
1.2. IP Protection The IP Code, Ingress Protection Rating, sometimes also interpreted as International Protection Rating, classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water in mechanical casings and with electrical enclosures. It is published by the International Electrotechnical Commission (IEC) Solid particle protection The first digit indicates the level of protection that the enclosure provides against access... - Page 13 Liquid ingress protection The second digit indicates the level of protection that the enclosure provides against harmful ingress of water. Protected Level Testing for Details against — — protected Dripping Dripping water (vertically Test duration: 10 minutes water falling drops) shall have no Water equivalent to 1 mm harmful effect.
- Page 14 water jets jets (12.5 mm nozzle) 3 minutes against the enclosure from Water volume: 100 litres per any direction shall have no minute harmful effects. Pressure: 100 kPa at distance of 3 m Immersion Ingress of water in harmful Test duration: 30 minutes up to 1 m quantity shall not be Immersion at depth of at...
-
Page 15: Front Panel
1.3. Front Panel IWMR-3003, RJ-45 model IWMR-3003, M12 model... - Page 16 IMR-3003, RJ-45 model IMR-3003, M12 model...
- Page 17 IWAP-3003, RJ-45 model IWAP-3003, M12 model...
-
Page 18: Led Indicators
1.4. LED Indicators The diagnostic LEDs that provide real-time information of system and optional status are located on the front panel of the industrial device. The following table provides the description of the LED status and their meanings for the device. Color Status Meaning... - Page 19 S1 ~ S4 The port is transmitting packets. TX (Only Green on RJ-45 The port is not transmitting packets. models) S1 ~ S4 The port is receiving packets. RX (Only Green on RJ-45 The port is not receiving packets. models)
-
Page 20: Hardware Installation - Rj45 Models
2. Hardware Installation – RJ45 Models Hardware installation 2.1. 1. Unpack the device 2. Check if the DIN-Rail is screwed on the Industrial device or not. If the DIN-Rail is not screwed on the Industrial device, please refer to DIN-Rail Mounting section for DIN-Rail installation. - Page 21 First, insert the top of DIN-Rail into the track. Then, lightly push the DIN-Rail into the track.
-
Page 22: Wall Mount Plate Mounting
Check if the DIN-Rail is tightened on the track or not. To remove the industrial device from the track, reverse above steps. 2.3. Wall Mount Plate Mounting Follow the steps below to mount the industrial device with wall mount plate. 1. -
Page 24: Wiring The Power Inputs
2.4. Wiring the Power Inputs Voltage of Power Input 12V model: The power input voltage can be from 9~56VDC. 24V model: The power input voltage can be from 9~36VDC. WV model: The power input voltage can be from 16.8~137.5VDC. 2.4.1. -
Page 25: Grounding
2. Tighten the wire-clamp screws for preventing the wires from loosing. [NOTE] The wire gauge for the terminal block should be in the range between 12 ~ 24 AWG. 2.4.2. Grounding The chassis is grounded via a separate ground nut (M3). Use toothed locking washers for a good electrical connection. -
Page 26: Wiring The Fault Alarm Contact
2.5. Wiring the Fault Alarm Contact The fault alarm contacts are in the middle of the terminal block connector as the picture shows below. Inserting the wires, the device will detect the fault status of the power failure, or port link failure (available for managed model) and then forms an open circuit. The following illustration shows an application example for wiring the fault alarm contacts. -
Page 27: Cabling
2.6. Cabling Use four twisted-pair, Category 5e or above cabling for RJ-45 port connection. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long. 2.7. SIM 1. Turn off power of the device. 2. - Page 28 Located on the bottom of the SIM card slot. For LTE2 slot Insert the SIM card into the SIM card slot with the gold contacts facing up. Located on the bottom of the SIM card slot.
-
Page 29: Serial Ports
2.8. Serial Ports Connect the DB9 connector with RS232/RS422/RS485 cable with the following PIN assignment. PIN Assignment of RS232 PIN Assignment of RS-422 PIN Assignment of RS-485... -
Page 30: Hardware Installation - M12 Models
3. Hardware Installation – M12 Models Hardware installation 3.1. 1. Unpack the device 2. Check if want to wall mount the Industrial device, please refer to Wall Mount Plate Mounting section for wall mount plate installation 3. To hang the Industrial device on the wall. 4. -
Page 31: Wall Mount Plate Mounting
3.2. Wall Mount Plate Mounting Follow the steps below to mount the industrial device with wall mount plate. 1. Place the wall mount plate on the side panel of the industrial device. 2. Use the screws to screw the wall mount plate on the industrial device. 3. -
Page 32: Wiring The Power Inputs
3.3. Wiring the Power Inputs Connect the M12 connector of power input. Voltage of Power Input 12V model: The power input voltage can be from 9~56VDC. 24V model: The power input voltage can be from 9~36VDC. WV model: The power input voltage can be from 16.8~137.5VDC. - Page 33 ECONM12-05A(F) to MCP 6P-20CM CABLE (Optional power cable for IGN models) This male connector installed at vehicle side is MCP type connector with 6 pins, TYCO reference: 8-968970-1 Blue Code A. Ignition sensing After trigger the Ignition sensing, the device will power on. The ignition pin must connect to driver power / main key with voltage 9~36VDC before you turn on the power resource.
-
Page 34: Wiring The Reset Or Usb
The chassis is grounded via a separate ground nut (M3). Use toothed locking washers for a good electrical connection. 3.4. Wiring the Reset or USB Pin assignment of Reset / Console / USB Connect the pin1 & pin7 for 10 seconds and the device will be reset to default... -
Page 35: Cabling
Connect the M12 connector to USB if needed Note: The USB port is USB 2.0 speed, not USB 3.0 3.5. Cabling Connect the M12 connector with RJ-45 data cable, ports are not used shall be caped that comes with the package to insulate the surrounding. Pin assignment of M12 10/100/1000T network connector... -
Page 36: Sim
3.6. SIM 6. Turn off power of the device. 7. Use a screwdriver to loosen the screws and remove the SIM card cover. 8. Insert one or two 3G/4G SIM cards into the SIM card slots in the correct orientation and located on the bottom of the SIM card slot. - Page 37 For LTE2 slot Insert the SIM card into the SIM card slot with the gold contacts facing up. Located on the bottom of the SIM card slot.
- Page 38 4. Console Management 4.1. Connecting to the Console Port 4.1.1. RJ45 Models The supplied cable which one end is RS-232 connector and the other end is RJ- 45 connector. Attach the end of RS-232 connector to PC or terminal and the other end of RJ-45 connector to the console port of the device.
- Page 39 4.1.2. M12 models The supplied cable which one end is M12 8-pole connector and the other end is RS- 232 connector. Attach the end of RS-232 connector to PC or terminal and the other end of M12 connector to the console port of the switch. The connected terminal or PC must support the terminal emulation program.
- Page 40 The settings of communication parameters Having finished the parameter settings, click ‘OK’. When the blank screen shows up, press Enter key to have the login prompt appears. Key in ‘admin’ (default value) for both User name and Password (use Enter key to device), then press Enter and the Main Menu of console management appears.
