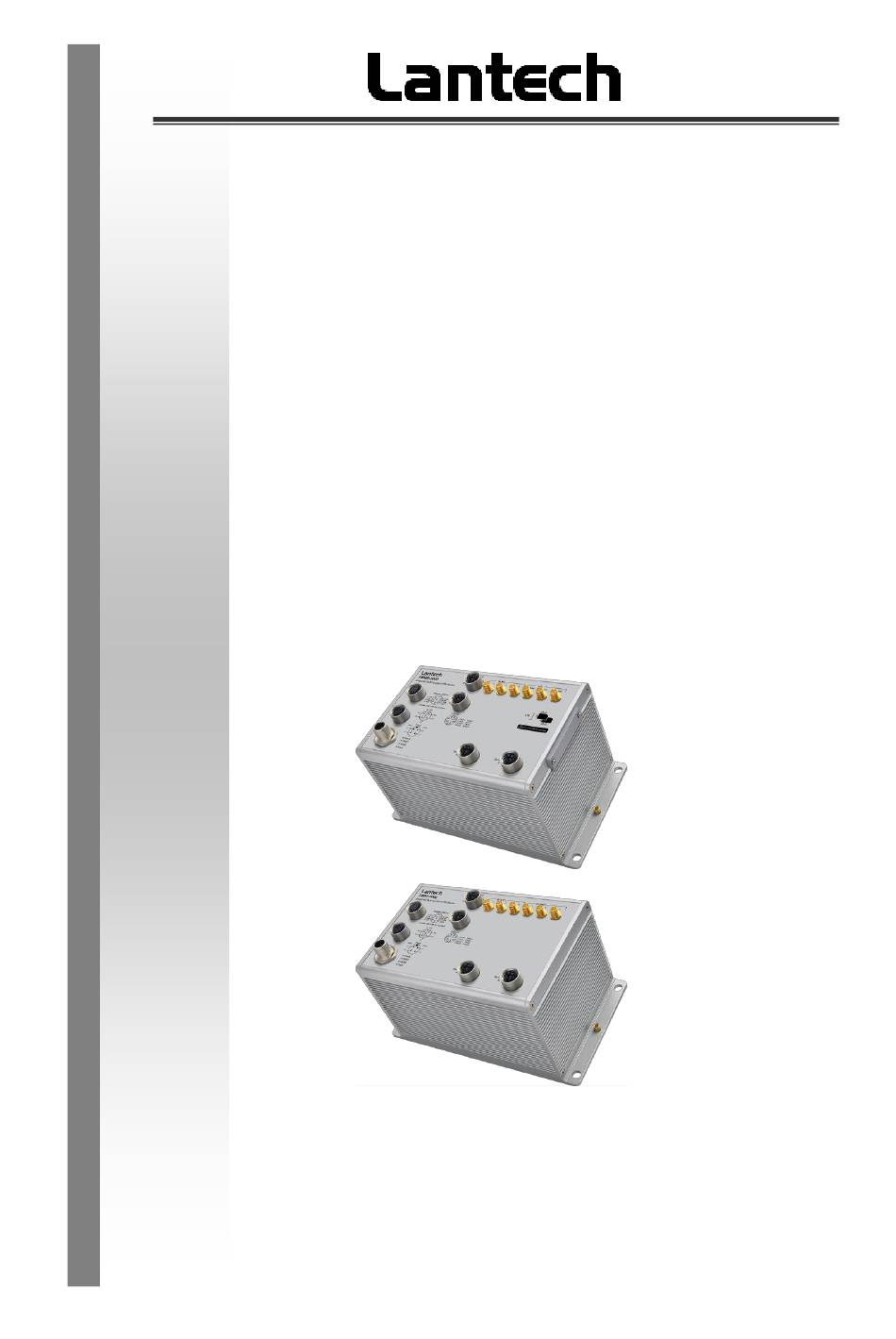

TWMR-5002
EN50155 Multifunction VPN Router w/1 WiFi 11ac + 1 LTE 4G + 2
serial ports + 2 Gigabit X-coded Ethernet (incl.1 PD)
TMR-5002
EN50155 Multifunction VPN Router + up to 2 LTE 4G + 2 serial
ports + 2 Gigabit X-coded Ethernet (incl.1 PD)
TWAP-5002
EN50155 Multifunction VPN Router w/1or2 WiFi 11ac + (2 serial
ports) + 2 Gigabit X-coded Ethernet
User Manual (Hardware)
Aug. 2020
Advertisement
Table of Contents
Related Manuals for Lantech TWMR-5002
Summary of Contents for Lantech TWMR-5002
- Page 1 TWMR-5002 EN50155 Multifunction VPN Router w/1 WiFi 11ac + 1 LTE 4G + 2 serial ports + 2 Gigabit X-coded Ethernet (incl.1 PD) TMR-5002 EN50155 Multifunction VPN Router + up to 2 LTE 4G + 2 serial ports + 2 Gigabit X-coded Ethernet (incl.1 PD)
- Page 2 Recommendation for Shielded network cables STP cables have additional shielding material that is used to reduce external interference. The shield also reduces the emission at any point in the path of the cable. Our recommendation is to deploy an STP network cable in demanding electrical environments. Examples of demanding indoor environments are where the network cable is located in parallel with electrical mains supply cables or where large inductive loads such as motors or contactors are in close vicinity to the camera or its cable.
- Page 3 Lantech Communications Global Inc. Products offered may contain software which is proprietary to Lantech Communications Global Inc. The offer or supply of these products and services does not include or infer any transfer of ownership.
- Page 4 FCC Warning This Equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy.
-
Page 5: Table Of Contents
Content Chapter 1 Hardware Description ......5 Physical Dimension ........5 Package Content:......... 10 IP Protection ..........10 LED Indicators..........13 Chapter 2 Hardware Installation ......15 Hardware installation........15 Chapter 3 Console Management ......21 3.1. Connecting to the Console Port ....21 3.2. -
Page 6: Chapter 1 Hardware Description
Chapter 1 Hardware Description In this paragraph, it will describe the Industrial router’s hardware spec, port, cabling information, and wiring installation. 1.1 Physical Dimension TWMR-5002 / TMR-5002 Aluminum case. IP-65/54, 178mm(W)x99mm(H)x103mm(D) TWAP-5002 (With 2 serial ports) Aluminum case. IP-65/54, 178mm(W)x99mm(H)x103mm(D) - Page 7 TWAP-5002 (Without 2 serial ports) Aluminum case. IP-65/54, 178mm(W)x99mm(H)x103mm(D)
- Page 8 Port description of IP-65/54 series router TWMR-5002...
- Page 9 TMR-5002 TWAP-5002 (With 2 serial ports)
- Page 10 TWAP-5002 (Without 2 serial ports)
-
Page 11: Package Content
1.2 Package Content: Industrial Router x1 Console cable x1 1.3 IP Protection The IP Code, Ingress Protection Rating, sometimes also interpreted as International Protection Rating, classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water in mechanical casings and with electrical enclosures. - Page 12 satisfactory operation of the equipment; complete protection against contact No ingress of dust; complete protection against Dust tight contact Liquid ingress protection The second digit indicates the level of protection that the enclosure provides against harmful ingress of water. Protected Level Testing for Details...
- Page 13 Water jets Water projected by a Test duration: at least nozzle (6.3 mm) against 15 minutes enclosure from any Water volume: 12.5 litres per direction shall have no minute harmful effects. Pressure: 30 kPa at distance of 3 m Powerful Water projected in powerful Test duration: at least water jets...
-
Page 14: Led Indicators
it produces no harmful effects. — Powerful Protected against close- high range high pressure, high temperature temperature spray downs. water jets 1.4 LED Indicators The diagnostic LEDs that provide real-time information of system and optional status are located on the front panel of the industrial router. The following table provides the description of the LED status and their meanings for the router. - Page 15 WLAN is inactive Normal operate Blinking (On 0.5, Init LTE Module Failed Off 0.5s) Green Blinking (On 2s, Off Searching or Signal is too weak Blinking (On 1, Off PIN Code or PUK failed SIM card detection failed GPS is positioned Green Blinking GPS is positioning...
-
Page 16: Chapter 2 Hardware Installation
Chapter 2 Hardware Installation Hardware installation 2.1.1Unpack router and check the accessory with packing content list 2.1.2 Mount the router on desired position. For the best ventilation, it is suggested to mount the router on metallic surface. 2.1.3 Connect the M12 connector of power input. ... - Page 17 report a power failure. You can disable this power fail event via web browser. Pin assignment of DI/DO 2.1.4 Fitting the device, grounding Install the system in a dry and clean area to protect the router to get exposed with dirt. Plug the connector to the power supply plug then turn on the power supply.
- Page 18 Ground screw of router 2.1.5 Connect the M12 connector with RJ-45 data cable, ports are not used shall be caped that comes with the package to insulate the surrounding. Pin assignment of M12 10/100/1000T network connector...
- Page 19 2.1.6 Connect the M12 serial connector with RS232/RS422/RS485 cable, ports are not used shall be caped that comes with the package to insulate the surrounding. (Only on -2S, -2SA or -2SB models) Note: The serial connectors are only for connecting RS232 or RS422 or RS485, depending on models.
- Page 20 Note: The USB port is USB 2.0 speed, not USB 3.0 2.1.9 For LTE models, insert the card into SIM slot in the correct orientation. 1. Turn off power of the router 2. Use a screwdriver to loosen the screws and remove the SIM card cover.
- Page 21 The protection class IP65/54 is only achieved when bolted together. The other components attaching to the system have to meet with the IP65/54 protection class in order to reach the whole system IP65/54 protection. Empty ports must be sealed with the protective caps supplied.
-
Page 22: Chapter 3 Console Management
Chapter 3 Console Management 3.1. Connecting to the Console Port The supplied cable which one end is M12 8-pole connector and the other end is RS-232 connector. Attach the end of RS-232 connector to PC or terminal and the other end of M12 connector to the console port of the router. - Page 23 Flow control: None The settings of communication parameters Having finished the parameter settings, click ‘OK’. When the blank screen shows up, press Enter key to have the login prompt appears. Key in ‘admin’ (default value) for both User name and Password (use Enter key to router), then press Enter and the Main Menu of console management appears.
