Roush Billet Shifter Arm with Damper
Application: 2005-07 Ford Mustang GT with Roush Short Throw Shifter
IMPORTANT: Before installing your Roush Performance Product(s), read through the entire installation
procedure and check to make sure all items are present.

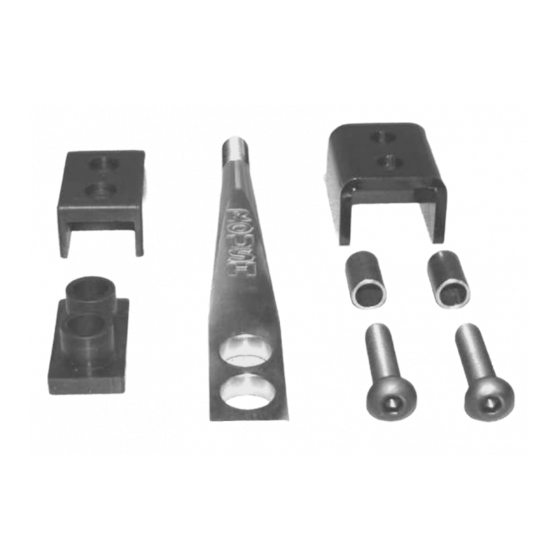

Packaging List for Complete Roush Billet Shifter Arm with Damper
Item
Billet Shifter Arm (#R15040034)
Steel Damper Clamp (#R15040035)
Rubber Damper – Male (#R15040036)
Rubber Damper – Female (#R15040037)
Steel Sleeve – 3/8" ID x ½" OD x 0.85" L (#R15040038)
3/8-24 x 1.75" Bolts (#R18100003)
Shifter Boot Retainer (#R15040030)
Installation Instructions (#R15040039)
1307-R15040039-AA
Part #R15040033
Installation Instructions
Must reuse ROUSH shifter knob
Page 1 of 10
Quantity
1
1
1
1
2
2
1
1
1-800-59-ROUSH
Advertisement
Related Manuals for ROUSH R15040033
Summary of Contents for ROUSH R15040033
- Page 1 Application: 2005-07 Ford Mustang GT with Roush Short Throw Shifter Must reuse ROUSH shifter knob IMPORTANT: Before installing your Roush Performance Product(s), read through the entire installation procedure and check to make sure all items are present. Packaging List for Complete Roush Billet Shifter Arm with Damper...
- Page 2 Equipment and Supplies Required 7/32” Hex Driver or Allen wrench 17mm Wrench Torque Wrench Recommended Supplies ® Loctite 242 Medium Strength Thread Locker (or equivalent) Glass Cleaner 1307-R15040039-AA Page 2 of 10 1-800-59-ROUSH...
- Page 3 The information contained in this publication was accurate and in effect at the time the publication was approved for printing and is subject to change without notice or liability. Roush Performance Products (RPP) reserves the right to revise the information presented herein or to discontinue the production of parts described at any time.
- Page 4 Disassembly ( ROUSH Billet Shifter Handle Removal) Use a 17mm wrench to loosen the jam nut below the shifter knob. Turn the jam nut clockwise to unlock it from the knob.
- Page 5 Remove the shifter handle. The center console may need to be elevated, by lifting up on it, to access the bolts. Assembly ( ROUSH Shifter Damper) Push male rubber damper into shifter handle. 1307-R15040039-AA Page 5 of 10...
- Page 6 Make sure that the spacers are flush with the outside surface. Again using a non-oil based lubricant (as in step 3), push the damper clamp over the female rubber damper on the shifter handle. 1307-R15040039-AA Page 6 of 10 1-800-59-ROUSH...
- Page 7 Assembly ( ROUSH Billet Shifter Handle with Damper Installation) Install the shifter handle with damper onto the short throw shifter. Slide the shifter handle and damper assembly over the short throw shifter (the dust boot will have to be pressed down).
- Page 8 Re-install the shifter boot over the top of the shifter handle and snap it into place on the console. Slide the shifter boot collar down on the handle until “ROUSH” is visible. Re-install the jam nut onto the handle until it bottoms on the threads.
- Page 9 Note: If items are missing or for any questions regarding the installation of this kit, please contact Roush Performance toll free at 1-800-59-ROUSH. 1307-R15040039-AA Page 9 of 10 1-800-59-ROUSH...
-
Page 10: Warranty
(e.g.: oil, anti-freeze, battery acid, brake fluid, etc.); (vii) acts of God, natural disasters and other similar causes beyond the reasonable control of Roush; or (viii) application of chemicals that affect the parts. This Limited Warranty does not cover surface deterioration of paint, trim, and appearance items that result from use and/or exposure to the elements, such as stone chips, scratches, bird droppings, lightning, hail, windstorm, dings, dents, earthquake, road salt, tree sap, water or flood.
