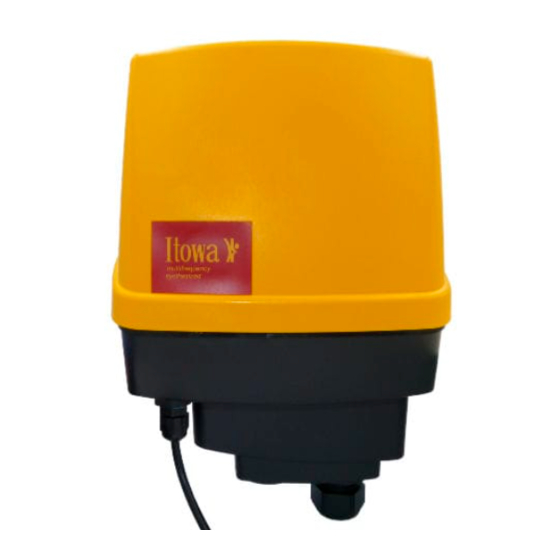

Itowa IT3R16 User Manual

Hide thumbs Also See for IT3R16:
Table of Contents

Advertisement

Quick Links

Download this manual
USER MANUAL
RECEIVER
IT3R16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IT3R16 and is the answer not in the manual?

Questions and answers

Related Manuals for Itowa IT3R16

Summary of Contents for Itowa IT3R16

  • Page 1 USER MANUAL RECEIVER IT3R16...
  • Page 3 IT IS FORBIDDEN TO FULLY OR PARTIALLY REPRODUCE THIS MANUAL, WITHOUT THE PRIOR WRITTEN AUTHORISATION FROM ITOWA. IN THE EVENT OF INFRINGEMENT, ITOWA RESERVES THE RIGHT TO TAKE THE ACTION IT DEEMS NECESSARY, IN ACCORDANCE WITH CURRENT LAW. ITOWA RESERVES THE RIGHT TO MODIFY THIS MANUAL WITHOUT PRIOR NOTIFICATION.

  • Page 5: Table Of Contents

    RECEIVER IT3R16 USER MANUAL CONTENTS: 1. INTRODUCTION 2. GENERAL RULES FOR THE CORRECT AND SAFE USE OF THE RECEIVER 3. DESCRIPTION OF THE SET 4. TECHNICAL SPECIFICATIONS 5. INSTALLATION AND START - UP 5.1. INSTALLATION OF THE RECEIVER 5.1.1. STANDARD FASTENING OF THE RECEIVER 5.1.2.

  • Page 6: Introduction

    RECEIVER IT3R16 USER MANUAL 1. INTRODUCTION This user manual is a guide for the correct use of the ITOWA Multi-frequency RECEIVER IT3R16 correctly. This receiver is specially designed for the wireless remote control of all types of electro-mechanical machinery. FM frequency and FFSK codification are used for the radio transmission of control signals. The most advanced technology and the latest generation microprocessors have been incorporated in the electronic design.

  • Page 7: General Rules For The Correct And Safe Use Of The Receiver

    RECEIVER IT3R16 USER MANUAL 2. GENERAL RULES FOR THE CORRECT AND SAFE USE OF THE RECEIVER For maximum safety when handling the receiver, the user must follow the rules described in this manual. To perform any operation of the machine, the radio control operator must be in a place where he can view the whole manoeuvre being performed.
  • Page 8 RECEIVER IT3R16 USER MANUAL 3. RECEIVER DESCRIPTION The receiver set consist of a cabinet which houses the various the different electronic systems to receive the orders and to activate or deactivate the corresponding relays for each manoeuvre. The receiver set can be divided in 3 blocks (Figure 3.1), UHF receiver, Control circuit and relays circuit.
  • Page 9 RECEIVER IT3R16 USER MANUAL 3.3. IT3R16 IGURE RECEIVER VIEW...

  • Page 10: Technical Specifications

    RECEIVER IT3R16 USER MANUAL 4. TECHNICAL SPECIFICATIONS System MULTIFREQUENCY Frequency ISM-BAND Number of orders Till 40 (option till 56) Possibility of incorrect operation ≥6 Distance of Hamming Programmable code 16777216 Order response time <50 ms Active emergency time <50 ms...

  • Page 11: Installation And Start-Up

    RECEIVER IT3R16 USER MANUAL 5. INSTALLATION AND START-UP 5.1. INSTALLATION OF THE RECEIVER The receiver should be installed in an accessible location to be able to work on it easily. * Remember, in accordance with Spanish Standard RD 171/2004 Coordination of Business Activities, you must ensure security conditions for the maintenance of the machine in question, specially in its accessibility and traffic areas to the points where the operator can carry out their work.

  • Page 12: Magnetic Fastening Of The Receiver (Optional)

    RECEIVER IT3R16 USER MANUAL 5.1.1. MAGNETIC FASTENING OF THE RECEIVER (OPTION) 5.2. IT3R16 ( IGURE MAGNETIC FASTENING OF THE RECEIVER OPTION Magnetic fastening has to be placed in a metallic surface with a MINIMUM THICKNESS OF 4 MM and the 4 magnets have to be in contact in flat with the metallic surface.
  • Page 13 RECEIVER IT3R16 USER MANUAL 5.2. CONNECTING It is recommended to connect the set with a standard multi-cable flexible hose. This hose will be connected to the set at one end by the terminal strip supplied on the mother board, and the other end...

  • Page 14: Power Supply

    ¡ATTENTION! BEFORE FEEDING THE UNIT, MAKE SURE THAT THE SELECTOR OF TENSION (J25, J26 Y J27) IS IN THE CORRECT POSITION. Itowa will not be responsible for an inappropriate installation. 5.4. START-UP Once the receiver is installed and when the general switch of the machine is turned on, the leds of the receiver will light up as a test.

  • Page 15: Maintenance Of The Receiver

    RECEIVER IT3R16 USER MANUAL 6. MAINTENANCE OF THE RECEIVER The equipment you have purchased is manufactured using top quality materials to ensure perfect working order and operation. Similarly to all machinery or equipment, this receiver requires minimum basic maintenance tasks that should be performed. In order to increase the life span of the receiver and avoid unnecessary repair costs, we advise you to follow carefully these preservation and maintenance recommendations.
  • Page 16 RECEIVER IT3R16 USER MANUAL BEFORE HANDLING THE RECEIVER, TURN OFF THE GENERAL ATTENTION: SWITCH OF THE MACHINE. If you have any doubt or enquiry, do not hesitate to contact our Technical Assistance Service or any of our authorized technicians.
  • Page 17 RECEIVER IT3R16 USER MANUAL 7. DISPLAYING OF THE WORKING CHANNEL It is important to know the working channel the equipment is working with. This will allow us either to change the frequency or to detect interferences of other equipments within the communication of our transmitter and receiver.

  • Page 18: Possible Incidents And Solutions

    RECEIVER IT3R16 USER MANUAL 8. SCAN The receiver has several systems for the detection of abnormalities in case other equipments or systems may interfere within the communication between transmitter and receiver. Among these systems there is the scanning of frequencies, which allow the tracking of the whole band in order to find which channels are or have been occupied by any other system that transmits in the same band.
  • Page 19 RECEIVER IT3R16 USER MANUAL The fuses of the stop relays are blown. They should be replaced with new fuses of the The receiver starts up same value. The receiver is connected to but the machine does the machine, but it still does Place the pushbuttons of the cable/cabin not work.
  • Page 20 RECEIVER IT3R16 USER MANUAL 10. DISPLAY OF THE LEDS The LEDs are located inside the computer and to see them you must remove the top cover of the receiver. The LEDs are in the lower left part of the base circuit as shown in the following picture: 10.1.
  • Page 21 RECEIVER IT3R16 USER MANUAL Mode Led S3 Not assigned Mode Led S4 E2p OK. Error in eeprom, flashes the number of times corresponding to the detected error (see table of errors). Mode Led LINK Set in stand-by Radio frequency signal received recognized as its own.
  • Page 22 RECEIVER IT3R16 USER MANUAL 11. RECYCLING NFORMATION FOR THE PROPER MANAGEMENT OF ELECTRIC AND ELECTRONIC DEVICES At the end of its life span, the receiver’s refuses should never be mixed with general refuses. These refuses can be delivered, without any extra cost, to the centers of refuse collection. For further information please contact with your locals authorities.
