Summary of Contents for Itowa IT3R10

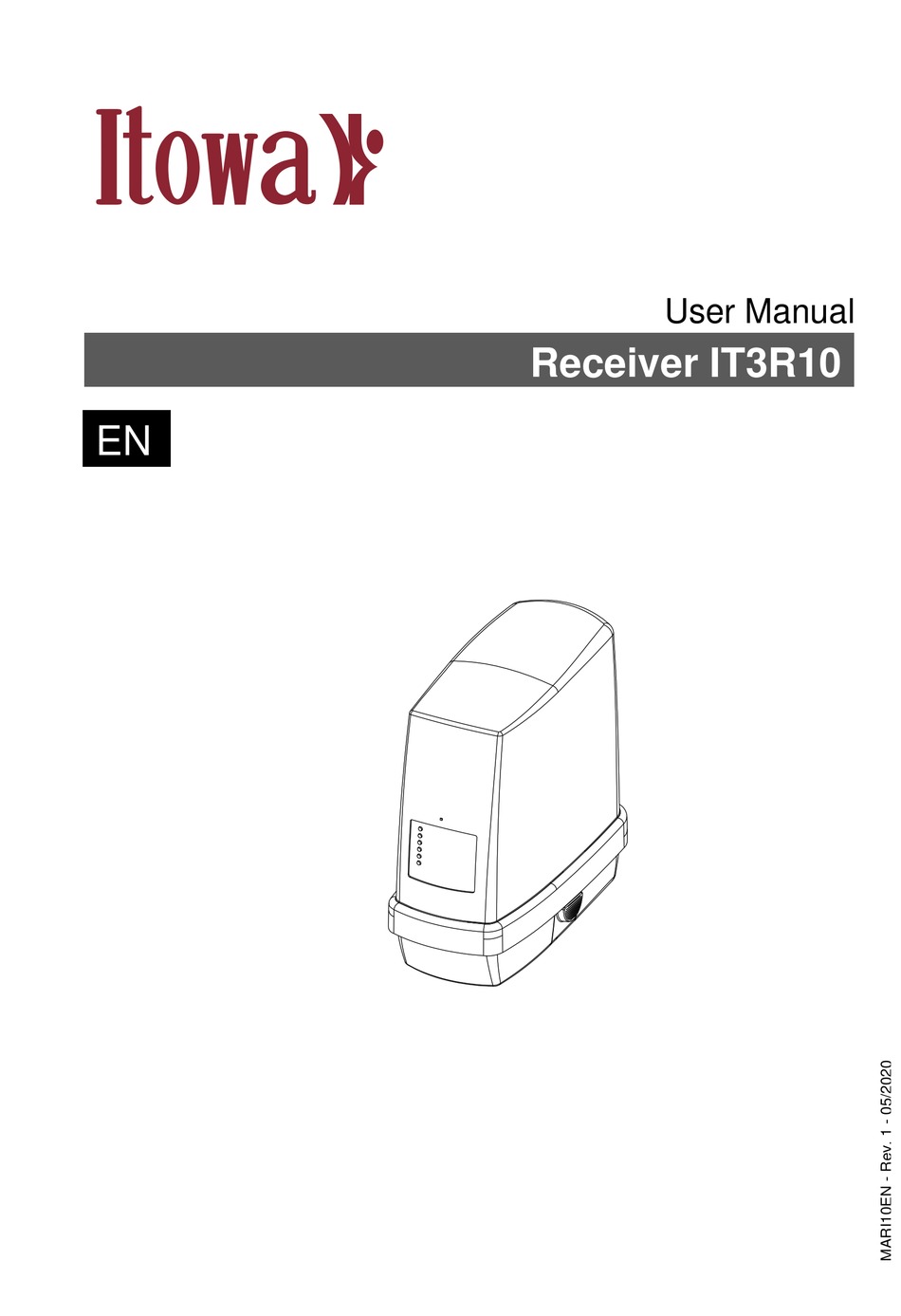

- Page 1 User Manual Receiver IT3R10 ...
- Page 2 IT’S FORBIDDEN TO FULLY OR PARTIALLY REPRODUCE THIS MANUAL WITHOUT THE PRIOR WRITTEN AUTHORISATION FROM ITOWA. IN THE EVENT OF INFRINGEMENT, ITOWA RESERVES THE RIGHT TO TAKE THE ACTION IT DEEMS NECESSARY IN ACCORDANCE WITH THE CURRENT LAW. ITOWA RESERVES THE RIGHT TO MODIFY THIS MANUAL WITHOUT PRIOR...
- Page 3 RECEIVER IT3R10 USER MANUAL INDEX: 1. INTRODUCTION 2. GENERAL TERMS FOR THE CORRECT AND SAFE USE OF RADIO REMOTE CONTROL 3. DESCRIPTION OF THE RECEIVER 4. TECHNICAL SPECIFICATIONS 5. INSTALLATION AND START-UP 5.1. INSTALLATION OF THE RECEIVER 5.1.1. FASTENING OPTIONS 5.2.
- Page 4 USER MANUAL 1. INTRODUCTION The manual you have in your hands is a guide for the correct use of the multi-frequency receiver IT3R10. This receiver, together with the associated remote control, has been specifically designed for the wireless remote control of electromechanically operated machinery.
-
Page 5: Description Of The Receiver
The control module is in charge of verifying that the information received is free of errors, preparing the pertinent orders to activate the appropriate relay. For further safety, all surveillance systems are duplicated, both, at the software and hardware levels Receiver IT3R10 and support base. -
Page 6: Technical Specifications
0,155 A (24 Vac) 0,135 A (24 Vdc) 0,160 A (12 Vdc) Fuses: Emergency Stop Operation: 3 A Connection: Through a 26- pins Itowa connector Dimensions: External: 190 x 83 x 165 mm Weight: With fastening: 890 g. Fastening: With bolts, DIN rail or magnetic (optionally) -
Page 7: Installation And Start-Up
It is recommended to connect the equipment with a standard multi-cable hose. This hose will be connected to the equipment at one end using the supplied Itowa terminal strip, while a multi-pin connector will be placed on the other, identical to the one used in the machine to connect it to your conventional pushbutton box. - Page 8 RECEIVER IT3R10 USER MANUAL The connection will be made through the terminal board that is screwed to the inside of the receiver cover. View of the unscrewed terminal block of Terminal numbering. the housing cover. The below table indicates each operation and the terminals to be connected for the corresponding relay in...
- Page 9 ¡ATTENTION!: AS A SAFETY MEASURE, IT IS IMPERATIVE TO MAKE SURE THE UNIT IS EARTHED WITH THE CORRESPONDING PIN OF THE CONNECTOR. Itowa will not be responsible for an inappropriate installation. 5.3. START-UP Once the receiver is installed and connected, when the general switch of the machine is turned on, the...
-
Page 10: Maintenance
RECEIVER IT3R10 USER MANUAL 6. MAINTENANCE The product you have purchased is made with the highest quality materials that ensure the perfect functioning and operability of the radio remote control. Like any other machine or equipment, the remote control requires a minimum of basic maintenance that must be done. - Page 11 RECEIVER IT3R10 USER MANUAL 7. DISPLAY THE EQUIPMENT CODE The code of the equipment is a unique hexadecimal code shared between the transmitter and the receiver, and identifies and links them by radio frequency. In case you need to know the equipment code, the receiver allows its display by acting on jumper J1 on the motherboard.
-
Page 12: Led Information
RECEIVER IT3R10 USER MANUAL 8. LED INFORMATION ICON INDICATION LED switch off Slow blink Fast blink LED Fix switch on STATE LED S1 Set On Weak signal Stop set by time or by STOP BUTTON STATE LED S2 Stand-by mode or operation without changes... - Page 13 RECEIVER IT3R10 USER MANUAL 9. POSSIBLE INCIDENTS AND SOLUTIONS INCIDENT STATE SOLUTION Eeprom fault. Check in the RX that it is inserted in its housing. If it is and still Led S4 of the RX flashes does not work, contact the Technical...
- Page 14 RECEIVER IT3R10 USER MANUAL 10. RECYCLABILITY INFORMATION FOR THE CORRECT MANAGEMENT OF ELECTRICAL WASTE AND ELECTRONIC (RAEE) At the end of the lifetime of the device, it must not be disposed together with general waste. t can be delivered, free of charge, to specific collection centers, differentiated by local authorities, Or distributors that provide this service..
- Page 15 RECEIVER IT3R10 USER MANUAL www.itowa.com SINDITO, S.L. Faraday, 159 08224 Terrassa (Barcelona) España Tel. +34 93 733 98 50...
