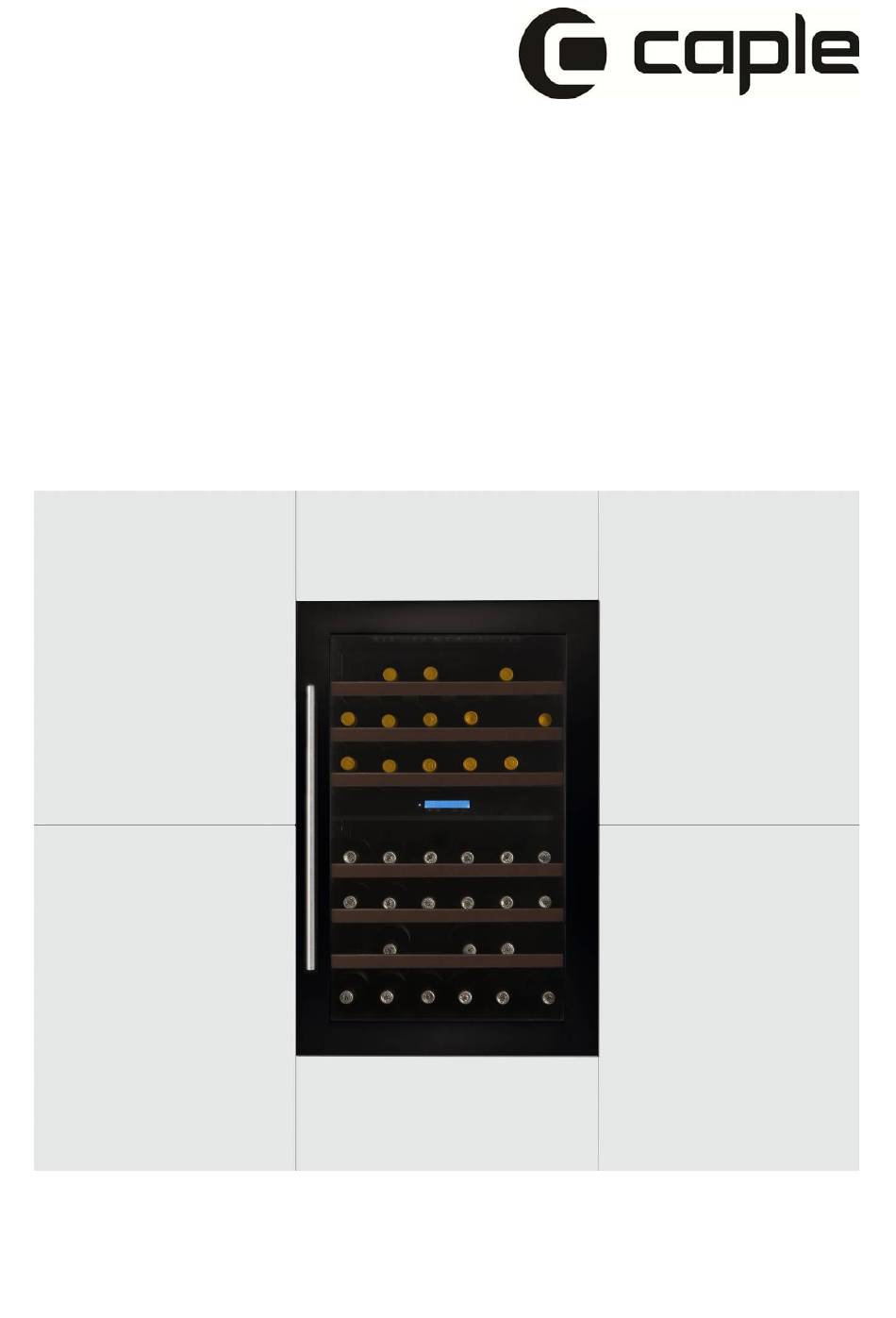

- Page 1 Instruction manual for in column wine cabinet Model code: WC6218 Contact Caple on 0117 938 7420 or for spare parts www.caple.co.uk...
-
Page 2: Important Warnings And Advice
Thank you for buying your new Caple Wine Cabinet. To ensure that you get the best results from your new purchase, we strongly suggest that you read this instruction manual thoroughly before use. This manual contains installation advice, usage instructions and other important facts about your Caple Wine Cabinet. -
Page 3: Installation Instructions
INSTALLATION INSTRUCTIONS BEFORE TURNING THE WINE CABINET ON ENSURE IT IS PERFECTLY LEVEL. This will minimise any vibrations. Your cabinet is equipped with 4 adjustable feet. However, we recommend that you tighten the back feet to the maximum and then use the front feet to level the cabinet. IMPORTANT: WAIT 12 HOURS BEFORE TURNING THE WINE CABINET ON FOR THE FIRST TIME. - Page 4 OPERATING YOUR WINE CABINET AND SETTING THE TEMPERATURE CONTROL The wine cabinet should be placed where the ambient temperature is between 16-32 deg centigrade. If the ambient temperature is above or below this range, the performance of the unit may be affected. For example, placing your unit in extreme cold or hot conditions may cause interior temperatures to fluctuate and maybe cannot reach the setting temperature.
- Page 5 The factory set temperature is as below: • Upper compartment: 6 ºC Lower compartment: 12ºC When the system enters the temperature set up. Each press on the button, • the temperature setting of the upper zone will increase by 1 ºC, When the temperature setting reaches the upper limit of 10ºC, the temperature will return to 5ºC.
- Page 6 Storage diagram Total: 42 bottles (Max) (for 750 ml Bordeaux bottles) Internal Light In order to reduce energy consumption, the LED light within this wine cabinet will automatically switch off when the door is closed. If you would prefer the LED light to remain on continuously, this is possible.
- Page 7 How to change the door opening This appliance has reversible doors but is delivered with a right hinged door. The left hand hinge kit comes with the unit (in the box), should you wish to reverse the hinge on your unit. 1.
- Page 8 Installation specifications for built-in purposes 1. After installed wine cellar into cabinet, please adjust limited block (a) close to cabinet (b) 2. Please fix the 3 screws through the limited block (a) screw into cabinet (b), please find below picture for reference a、Limited block b、Cabinet c、Screw...
-
Page 9: Care And Maintenance
CARE AND MAINTENANCE Cleaning Turn off the power, unplug the appliance, and remove all items including shelves and rack. • Wash the inside surfaces with a warm water and baking soda solution. The solution should • be about two tablespoons of baking soda to one litre of water. Wash the shelves with a mild detergent solution. -
Page 10: Troubleshooting Guide
PROBLEMS WITH YOUR WINE CABINET? You can solve many common Wine cabinet problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer. TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE Not plugged in. -
Page 11: Recommended Temperature Settings
DEFROSTING/CONDENSATION Your wine cellar is designed with an “Auto-cycle” defrost system. When the RUN cycle is OFF, the refrigerated surface of the wine cellar (interior rear wall) defrosts automatically. The defrost water is channelled into a drain pan which is located at the back of the wine cellar next to the compressor from where it evaporates. - Page 12 Caple Fourth Way Avonmouth Bristol BS11 8DW www.caple.co.uk...
