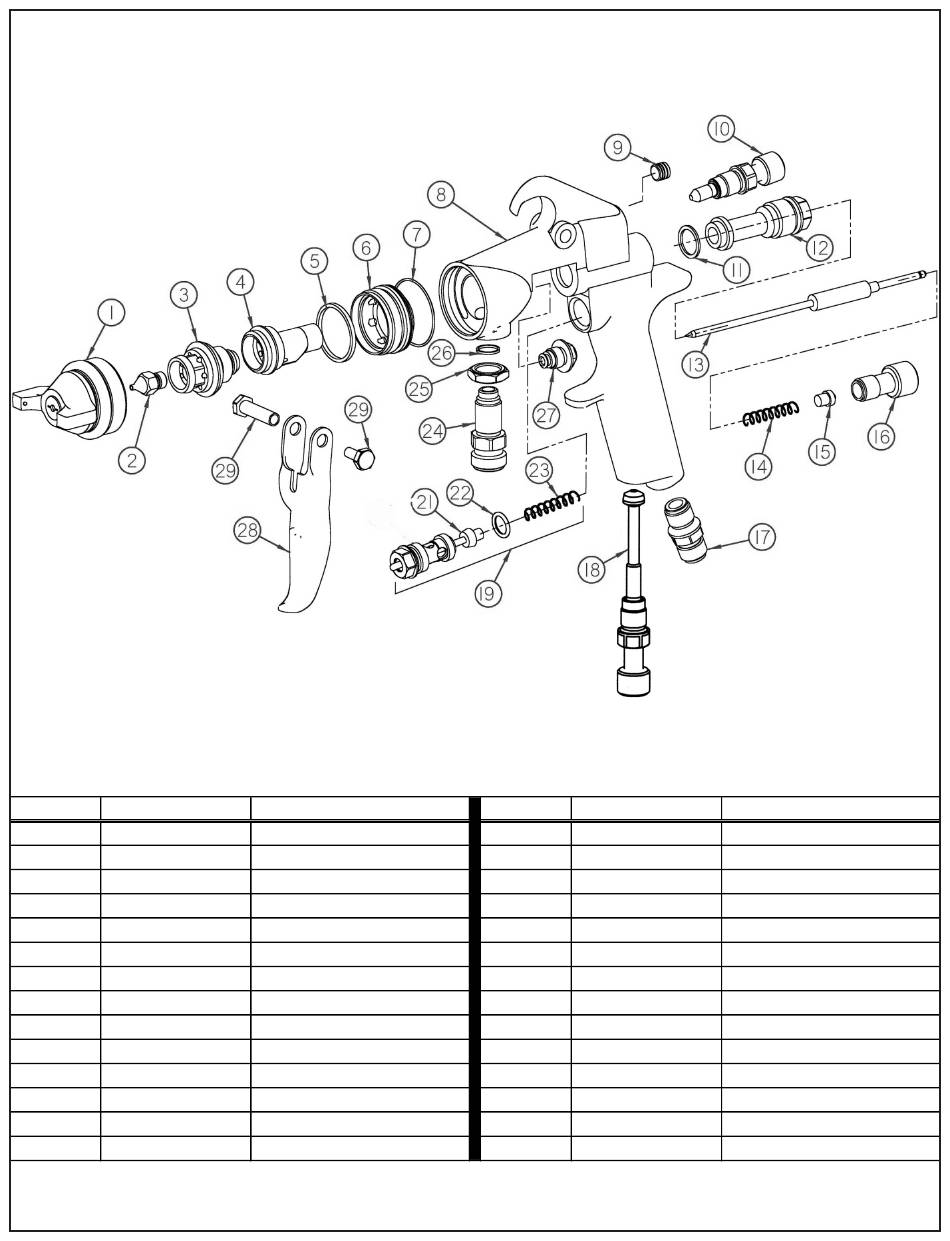

C.A. Technologies Lynx 100C Product Information page 3

ITEM NO. PART NO.
1 See Air Cap Chart
2 See Air Cap Chart
3 31-2201
4 60-L11C
5 61-1005
6 60-12C
7 60-131
8 60-1124
9 98-0109
10 See Air Cap Chart
11 60-119
12 60-201
13 See Air Cap Chart
14 60-204
**See air cap selection chart on page 1
*Indicates part included in repair kit # 10-106
*
*
DESCRIPTION
Air Cap**
Fluid Tip**
Fluid Nozzle Body
Nozzle Body Carrier
Seal*
Air Cap Adapter
O-Ring*
Lynx Gun Body Conventional
Allen Plug
Fan Control Assembly**
Seal*
Rear Bushing
Fluid Needle**
Needle Return Spring*
*
*
*
*
ITEM NO. PART NO.
15 60-205
16 60-202
17 60-104
18 60-1510
19 60-1520
21 60-302
22 60-125
23 61-1003
24 60-126
25 60-128
26 60-124
27 60-1400
28 60-2101
29 60-1033
*
*
*
DESCRIPTION
Spring Seat*
Fluid Control Knob
Air Inlet Fitting
Inlet Air Control
Air Valve Assembly
Air Valve Poppet
Seal*
Air Valve Spring*
Fluid Inlet
Locknut
Seal*
Needle Seal*
Trigger
Trigger Pivot Set
