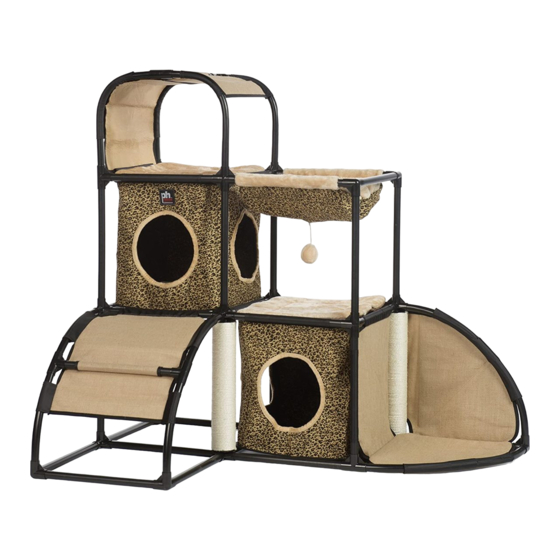

TOWNHOME
Catville
™
Model: # 7235 (Leopard)
Instructions online at www.prevuepet.com
very helpful tips
• Loosely lay out all parts for each step.
• Slide tubes into fabric sleeves first—then add connectors.
• Use appropriate force when assembling connectors and tubes
to avoid unnecessary damage.
connectors
& parts
A1
Sisal Post
(2pcs)
D1
Hideaway Den (1 pcs)
a
1
To form the BASE (pt.1),
you will need these pieces:
PARTS NAME
3C
3-Way Corner
4C
4-Way Corner
5C
5-Way Corner
A35
Long Tube
Foam Pads
7235 — 12 / 16 — USL.1
2S
( 2 pcs)
A35
B28
Long Tube
Short Curve
(37pcs)
(8pcs)
D3
Hideaway Den (1pcs)
QTY
( 3 )
( 2 )
( 1 )
( 7 )
( 6 )
FIRST, lay out the components in position.
NEXT, insert tubes into connectors to form the base.
Made in China for Prevue Pet Products, Inc., 224 N Maplewood Ave, Chicago IL 60612 USA • www.prevuepet.com • 1 [800] 243-3624 • customerservice @ prevuepet.com
read first
• Designed for hand assembly.
No tools required.
• Check regularly to ensure all
components are connected.
• Place finished unit in an area
with room for cats to play and
interact with all features.
3S
3C
( 4 pcs)
(6 pcs)
B40
R1
Long Curve (4pcs)
Roof (1pcs)
E2
Corner (1pcs)
REVIEW BEFORE ASSEMBLY
For assistance or replacement
parts, please contact Prevue Pet
Products:
PHONE
ONLINE
EMAIL
4C
5C
(8 pcs)
( 6 pcs)
H
Hammock
(1pcs)
M1
S1
Square Plush Mat
Ramp (1pcs)
(3pcs)
312.243.3624
www.prevuepet.com
customerservice@prevuepet.com
6C
(1 pcs)
Foam footer pads
(9pcs )
Self-adhesive foam pads
(if used) should be placed
on the underside of all
connectors.
