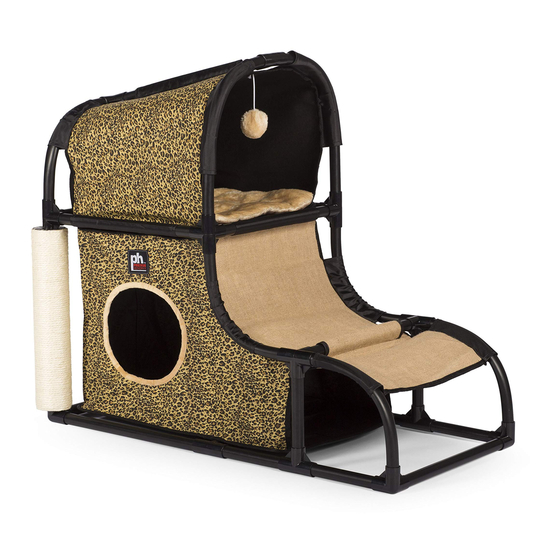

Prevue Pet Products Catville LOFT Read First

LOFT
Catville
Model: # 7220 (Leopard) / # 7221 (Gray)
read first
REVIEW BEFORE ASSEMBLY
• Designed for hand assembly.
No tools required.
• Check regularly to ensure all
components are connected.
• Place finished unit in an area
with room for cats to play and
interact with all features.
very helpful tips
• Loosely lay out all parts for each step.
• Slide tubes into fabric sleeves first—then add connectors.
• Use appropriate force when assembling connectors and tubes
to avoid unnecessary damage.
1
To form the BASE, you will
need these pieces:
PARTS NAME QTY
S
3-Way Straight ( 4 )
3C
3-Way Corner ( 4 )
A35
Long Tube ( 5 )
A16
Short Tube ( 4 )
To finish the base, you will
need these pieces:
PARTS NAME QTY
A35
Long Tube ( 1 )
A16
Short Tube ( 2 )
A1
Sisal Post ( 1 )
7220 / 7221 — 07 / 15 — USL
For assistance or replacement
parts, please contact Prevue Pet
Products:
312.243.3624
PHONE
www.prevuepet.com
ONLINE
customerservice@prevuepet.com
EMAIL
Made in China for Prevue Pet Products, Inc., Chicago IL USA
connectors & parts
3S 3 C
(6 pcs)
A35 B40
Long Tube Long Curved Tube
(12pcs) (2pcs)
A16 B31
Short Tube Curved Tube
(6 pcs) (6pcs)
After the base has been
assembled and firmly
tightened, add the vertical
tubes and Sisal post.
www.prevuepet.com
4C
( 4 pcs) (6 pcs)
A1
Sisal Post
(1pcs)
M1
Plush Mat
(1pcs)
Lay out the components on the
floor, then begin to assemble,
inserting posts into connectors
to form the base.
800 243-3624 customerservice
R2
Hideaway
Arch
(1pcs)
L2
Hideaway
with Ramp
(1pcs)
@
