Prevue Pet Products Silverado Assembly Instructions

cage assembly instructions

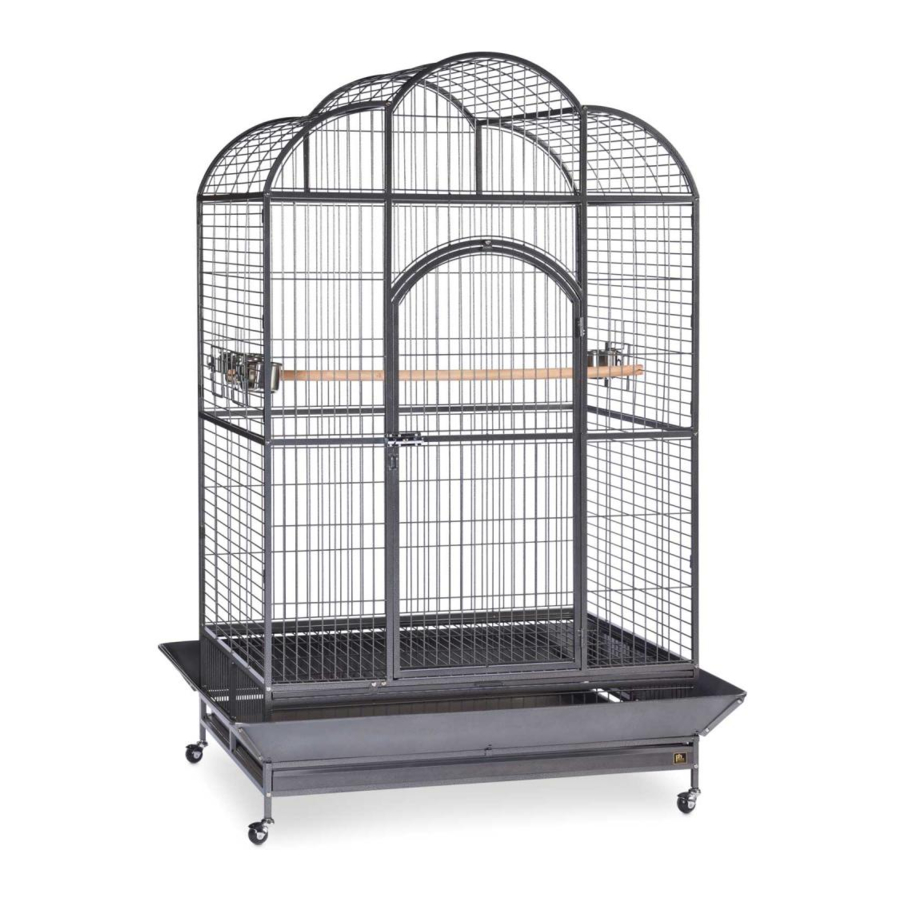

Silverado Macaw Cage
Model: # 3155S

getting started!

READ THESE NOTES FIRST:
• Enlist A Friend: This is a large cage and requires two
people to assemble.
• Count Hardware: If any screws are missing, please
contact Prevue Customer Service.
• Review All Parts: If parts are bent during shipping,
pieces may be straightened with needle nose pliers. For seriously
damaged pieces, please contact Prevue Customer Service.

parts

U3
L3 T2 T1
KEY:
T = top
U = upper
L = lower
SG = seed guard
touch-up paint
& brush included
cage: 46"L × 36"W × 78¼"H
w/seed guard: 54¾"L × 44¾"W
interior: 45½"L × 35½"W × 63"H
wire: [gauge] 9 & 9 [spacing] 1⅜"
• Tools: An allen wrench is included. You may use your own
hand tool with an allen wrench bit. We
DO NOT
power drills! Parts can be over-tightened and damaged/stripped.
Prevue is not responsible for this type of damage.
Review these instructions thoroughly before attempting to
assemble cage. If you still require assistance, please contact
Prevue Customer Service at 800.243.3624 or through links
online at prevuepet.com
{ 22} hex head screws { 4 } rolling casters
{ 8 } short hex head
U2
{ 3 } cup hangers
screw & nut pairs for
seed guard
{ 3 } stainless steel cups
{ 1 } allen wrench
{ 1 } wood dowel perch
L2
U4
T2 L4
U1
SG1
C
SG2
L1
SG1

steps

1
Attach casters to legs of lower front (L1)
and lower back (L2) panels.
a
2
THIS STAGE REQUIRES TWO PEOPLE.
Attach left side lower (L3) panel to
front lower (L1) panel.
recommend
→ Channels on (L3) face toward interior of cage.
Install bottom and middle screw only.
Leave top screw out until STEPS 4a & b.
b
2
Attach right side lower (L4) panel to
front lower (L1) panel.

Attach back lower (L2) panel to sides,

continuing to attach with only bottom and
middle screws.
A
3
After lower cage has been assembled,
slide in the grille (A) and drawer (B).
B
SG2
L1
L3
L2
A
B
L2
L4
