KI Tattoo Pedestal Assembly Instructions

plate-mount plate-mount
caster (locking) caster (non-locking)
stem-mount
caster (non-locking)
Detail A

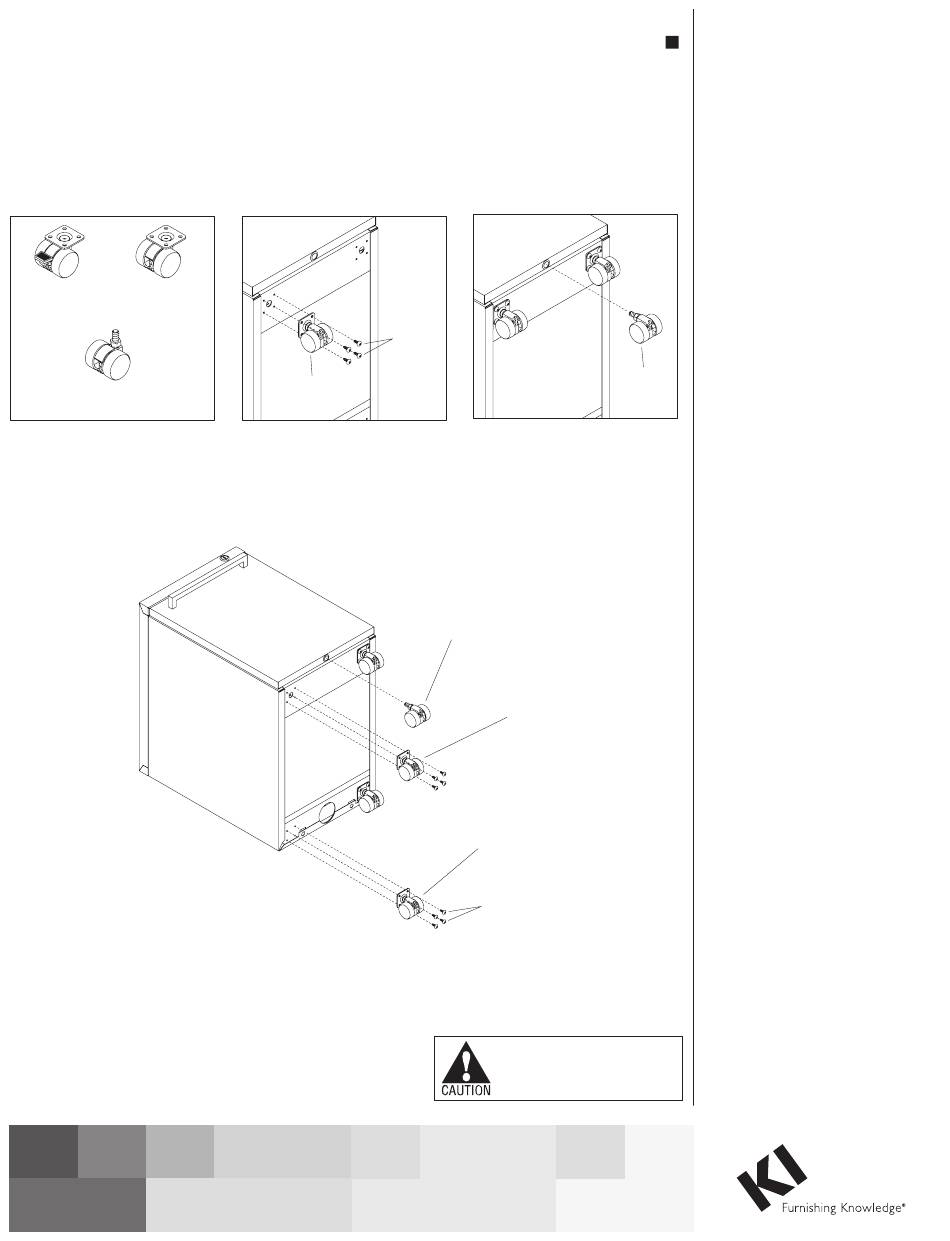

Figure 1
Assembly Instructions
pedestal
#10 x / "
screws
plate-mount
caster (locking)
Detail B
Tattoo™ Pedestal
January 2019
pedestal
1
2
Detail C
stem-mount
caster
plate-mount
caster (locking)
plate-mount
caster (non-locking)
#10 x / " 1
2
screws
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Required Tools
• 12mm Hex Wrench
• Power Drill Driver
• #2 Phillips Tip
Caster Installation
1. Carefully lay pedestal onto a soft,
protective surface, on it's back-side
as illustrated (Figure 1).
stem-
Note: Leg posts are not available on
mount
pedestals. Four plate-mount casters
caster
(two locking and two non-locking)
are provided, and are installed
directly to the underside of the
base. A stem-mount caster is also
provided, and installs to the bottom
of the drawer face (Detail A).
2. Align the mounting holes of each
plate-mount caster with the pilot
holes on the underside of the
pedestal, making sure to position
the two locking caster towards the
front, user side of the pedestal and
the non-locking casters at the back.
Using a #2 Phillips tip and power
drill driver, secure each caster to the
underside of the pedestal with four
#10 x / " screws (Figure 1 &
1
2
Details A & B).
3. Using a 12mm hex wrench, fasten
the stem-mount caster into the
threaded insert at the underside
of the pedestal drawer and tighten
securely (Figure 1 & Detail C).
4. Once all casters have been installed
to the underside of the pedestal,
carefully turn the pedestal to the
upright position.
