KI Tattoo Low Cupboard Assembly Instructions Manual

storage unit
(low cupboard
shown)
Detail A
storage unit
(low cupboard
shown)
leg post
(caster)

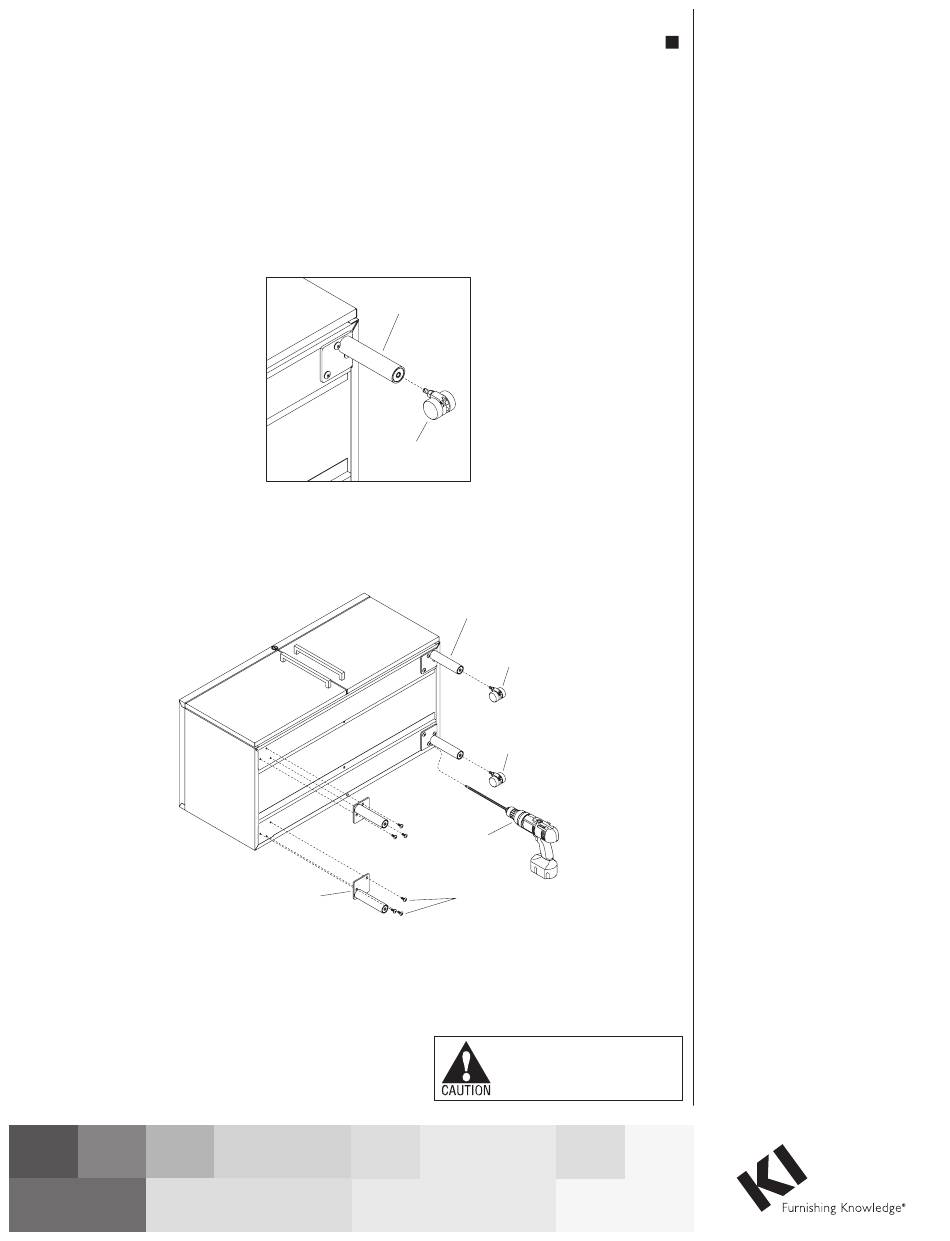

Figure 1
Assembly Instructions
Tattoo™ Low Cupboard
August 2019
leg post
(caster)
stem-mount
caster
leg post
(caster)
stem-mount
caster (locking)
stem-mount
caster
(non-locking)
power drill
driver with 8"
drill extension and
#3 Phillips bit
1 / -20 x / " 5
4 8
machine
screws
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Required Tools
• 12 mm Hex Wrench
• #2 Phillips Screwdriver
• Power Drill Driver
• #3 Phillips Tip
• 8" Drill Extension
• / " Hex Wrench (raised
7
16
worktop only)
Note: Leg posts are designed to
receive either casters or glides,
based on their overall length. Leg
posts at 5 / " long are designed for
7
16
casters, while 6 / " long leg posts
3
4
are for glides. If your installation
contains a mix of units with casters
and units with glides, take care to
not mix up the leg components, or
disassembly and re-assembly will be
required to correct the unit heights.

Leg Installation

1. Carefully lay the low cupboard onto
a soft, protective surface on it's
back-side. Caution: The assistance
of a second person may be required
to turn the unit onto its back
(Figure 1).
2. Align the mounting holes of each
leg post with the mounting holes on
the underside of the low cupboard.
Using a power drill driver with 8"
drill extension and #3 Phillips bit,
secure each leg post to the low
cupboard using three / -20 x / "
1 5
4 8
machine screws. Take care to not
scratch the legs with the drill when
assembling the legs (Figure 1).
3. If the low cupboard being assembled
is a caster leg unit, go to "Caster
Installation" instructions on this
page. If low cupboard has adjustable
glide legs, go to "Glide Installation"
instructions on the next page.

Caster Installation

1. Thread the stem of each stem-mount
caster into the threaded insert at the
underside of each leg post, making
sure to position the two locking
casters toward the front, user side of
the low cupboard and the
non-locking casters at the back.
Tighten the casters to the underside
of the low cupboard using a 12 mm
hex wrench (Figure 1 & Detail A).
2. Once all casters have been installed
to the caster leg posts, carefully
turn the unit to the upright position.
Caution: The assistance of a second
person may be required to turn the
unit upright.
