Summary of Contents for Nice MC824HR
- Page 1 Nice MC824HR Control unit EN - Instructions and warnings for installation and use...
-
Page 2: Table Of Contents
ENGLISH GENERAL SAFETY WARNINGS AND PRECAUTIONS Translation of the original instructions in full GENERAL SAFETY WARNINGS AND PRECAUTIONS WARNING! Important safety instructions. Observe all the instructions as improper installation may cause serious damages. CONTENTS WARNING! Important safety instructions. It is important to comply with these instructions to GENERAL SAFETY WARNINGS AND PRECAUTIONS . -
Page 3: Product Description And Intended Use

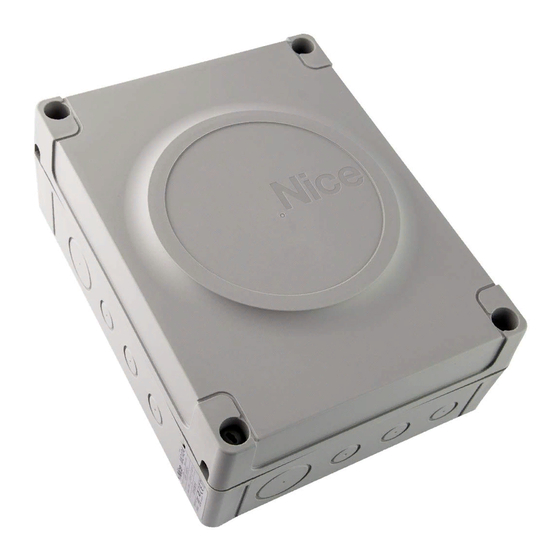

PRODUCT DESCRIPTION AND INTENDED USE MC824HR is an electronic control unit for automating swing gates. MC824HR is able to command electromechanical actuators of PRODUCT DESCRIPTION AND INTENDED USE the type indicated in “Table 4”. It incorporates a system that verifies the force of the motors connected to it (amperometric function). -
Page 4: Installation
3.4 TYPICAL INSTALLATION INSTALLATION “Figure 3” shows an example of an automation system constructed using Nice components. INSTALLATION 3.1 PRE-INSTALLATION CHECKS Before proceeding with the product’s installation, it is necessary – check the integrity of the supply – check that all the materials are in good working order and suited to the intended use –... -
Page 5: Installing The Control Unit
TECHNICAL SPECIFICATIONS OF ELECTRICAL CABLES Identification Cable characteristics MOTOR POWER SUPPLY cable 1 cable 3 x 1.5 mm Maximum length 10 m [note 4] ELECTRIC LOCK CONNECTION cable 1 cable 2 x 1 mm Maximum length 10 m ENCODER CONNECTION cable 1 cable 2 x 1 mm Maximum length 10 m [note 4] Note 1 If the power supply cable is longer than 30 m, a cable... -
Page 6: Electrical Connections
Nice “Bluebus” system. For the other connections, refer to that in sight of the automation. If located in a concealed specified below. -
Page 7: Operations For Connection
ELECTRICAL CONNECTIONS Terminals Function Description Cable type Output for warning light mounting a 12 V (maximum 21 W) lamp. The Warning light output can be programmed (refer to the “Level 1 programming (ON- 2 x 0.5 mm Flash OFF)” paragraph). Output for 12 Va (maximum 15 VA) electric lock. -
Page 8: Connecting Other Devices To The Control Unit
4.3 CONNECTING OTHER DEVICES TO THE PHOTOCELL ADDRESSES CONTROL UNIT Position of the Photocell jumpers If the user needs to power external devices, such as a proximity FOTO 2 (PHOTO 2) reader for transponder cards or the light of the key selector Internal photocell triggered during the switch, power can be tapped as shown in the figure. -
Page 9: Motor Selector
Table 4 SELECTING THE MOTOR TYPE Visualisation on Motor type Motor selector Oview T05624I - Bluebus Stop Open Close 2 3 4 5 6 7 8 9 10 11 12 TO5624I TTN3724RHS - 1 2 3 4 5 6 7 8 9 10 11 12 TTN6024RHS 4.8 LEARNING OF THE MECHANICAL STOP POSITIONS... -
Page 10: Learning In Automatic Mode
at the end of the closing manoeuvre (d) of the two motors, PROGRAMMING POSITIONS LEDs “L3” and “L4” switch off to signal that the procedure Position Description was performed correctly. Desired opening position: position in which the leaf associated with motor 2 must stop If, during the automatic learning procedure, the at the end of an opening manoeuvre. -
Page 11: Learning In Mixed Mode
LED “L2” flashes: position 0 of M2 LED “L8” flashes: position 1 of M2 – to command and move motor 2 to position “0” (“Figure – to command and move motor 2 to position “1” (“Figure 14”): press and hold the button. -
Page 12: Checking The Gate Movement
Refer to the instruction manuals of the individual instructions for all the automation’s devices. devices. For all the above-mentioned documentation, Nice – 5.1 TESTING through its technical assistance service – provides The sequence of steps to be performed when running the the following: pre-completed forms. -
Page 13: Programming
6.1 USING THE PROGRAMMING BUTTONS PROGRAMMING Button for commanding the gate opening Selection button during the programming phase. There are 3 buttons on the control unit: PROGRAMMING (“Figure 19”) which can be used both to command the control unit during the testing phase and to programme the Button used to stop a manoeuvre available functions. -
Page 14: Level 2 Programming (Adjustable Parameters)
LEVEL 1 FUNCTIONS (ON-OFF) Function Description Function ENABLED: 1 minute after the manoeuvre is completed, the control unit will turn off the “Bluebus” output (connected devices) and all the LEDs, with the exception of the Bluebus LED, which will flash at a slower speed. - Page 15 LEVEL 2 FUNCTIONS (ADJUSTABLE PARAMETERS) Entry Parameter Set value Description (level) Open - Stop - Close - Stop Open - Stop - Close - Open Open - Close - Open - Close CONDOMINIUM During the opening manoeuvre, the “Step-by-Step” and “Open”...
-
Page 16: Special Functions
LEVEL 2 FUNCTIONS (ADJUSTABLE PARAMETERS) Entry Parameter Set value Description (level) 1000 Adjusts the number of manoeuvres 1500 after which the automation 2500 Maintenance maintenance request is triggered notification 5000 (see the ““Maintenance notice” 10000 function” paragraph). 15000 20000 Result of 1 manoeuvre (most recent) Result of 2 manoeuvre... -
Page 17: Troubleshooting Guide
TROUBLESHOOTING... (troubleshooting guide) Some devices are configured for signalling the operating status or the presence of any anomalies. TROUBLESHOOTING GUIDE 7.1 SIGNALLING THROUGH WARNING LIGHT If a warning light is connected to the FLASH output (A) on the control unit, the light will flash once every 1 second while the manoeuvre is being performed. -
Page 18: Signals On The Control Unit
7.2 SIGNALS ON THE CONTROL UNIT The control unit has LEDs “L1-L8” on the buttons and LEDs “L9- L13” on the control unit terminals (“Figure 22”). Each of these LEDs can emit special signals both during normal Bluebus Stop Open Close operation and in case on anomalies. -
Page 19: Anomaly Log
Table 11 SIGNALS OF LED (L1..L4) (“FIGURE 22”) Status Meaning Possible solution LEDs L1 - L2 Change in the number of It is necessary to run the device learning procedure (refer to the “Learning devices connected to the Slow flashing of connected devices”... -
Page 20: Connecting The Ibt4N Interface
“Table 12” and “Table 13” show the “Receiver outputs” and the 8.2 CONNECTING THE IBT4N INTERFACE “Control unit inputs” associated with each. The control unit is equipped with a “IBT4N”-type connector for the IBT4N interface, which allows for connecting all devices Table 12 equipped with BusT4 interface, such as, for example, Oview SMXI / SMXIS OR OXI / OXIFM / OXIT / OXITFM IN MODE 1 OR MODE... -
Page 21: Connecting The Ps324 Back-Up Battery
8.3 CONNECTING THE PS324 BACK-UP BATTERY PRODUCT MAINTENANCE The control unit is configured for being powered with PS324 back-up batteries that intervene in case of a power outage. Being an electronic part, the control unit does not require PRODUCT MAINTENANCE Before installing a back-up battery, disconnect the any special maintenance. -
Page 22: Technical Specifications
TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS All technical specifications stated in this section refer to an ambient temperature of 20°C (± 5°C). Nice S.p.A. reserves the right to apply modifications to the product at any time when deemed necessary, without altering its functions and intended use. -
Page 23: Conformity
“partly completed machinery” Note - The contents of this declaration correspond to declarations in the official document deposited at the registered offices of Nice S.p.a. and in particular to the last revision available before printing this manual. The text herein has been re-edited for editorial purposes. A copy of the original declaration can be requested from Nice S.p.a. (TV) I. - Page 24 NOTES 24 – ENGLISH...
-
Page 25: Instructions And Warnings For The User
INSTRUCTIONS AND WARNINGS FOR THE USER Before using the automation for the first time, ask the installer to Safety devices out of order: the automation can also be used explain the origin of any residual risks and take a few minutes when one or more safety devices are defective or out of order. - Page 26 NOTES 26 – ENGLISH...
- Page 27 NOTES ENGLISH – 27...
- Page 28 Nice SpA Via Callalta, 1 31046 Oderzo TV Italy www.niceforyou.com info@niceforyou.com...
