- Page 1 Nice MC824H Control unit EN - Instructions and warnings for installation and use...
-
Page 2: Table Of Contents
ENGLISH GENERAL SAFETY WARNINGS AND PRECAUTIONS Translation of the original instructions in full GENERAL SAFETY WARNINGS AND PRECAUTIONS WARNING! Important safety instructions. Observe all the instructions as improper installation may cause serious damages. CONTENTS WARNING! Important safety instructions. It is im- portant to comply with these instructions to ensure GENERAL SAFETY WARNINGS AND PRECAUTIONS . -
Page 3: Product Description And Intended Use

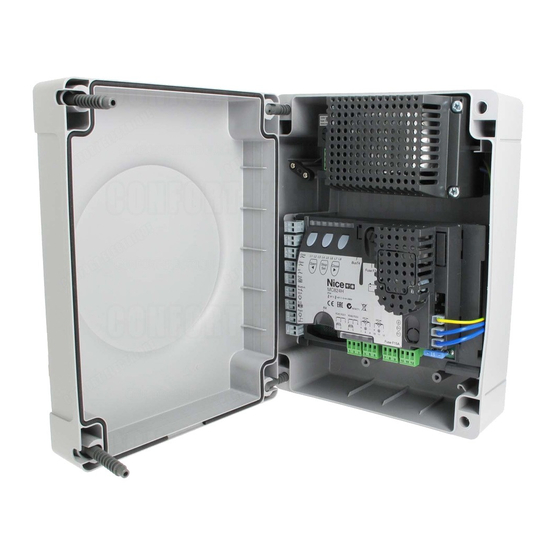

PRODUCT DESCRIPTION AND INTENDED USE MC824H is an electronic control unit for automating swing gates. MC824H is able to command electromechanical actuators of the PRODUCT DESCRIPTION AND INTENDED USE type indicated in “Table 4”. It incorporates a system that verifies the force of the motors connected to it (amperometric function). -
Page 4: Installation
3.4 TYPICAL INSTALLATION INSTALLATION “Figure 3” shows an example of an automation system con- structed using Nice components. INSTALLATION 3.1 PRE-INSTALLATION CHECKS Before proceeding with the product’s installation, it is necessary – check the integrity of the supply – check that all the materials are in good working order and suited to the intended use –... -
Page 5: Installing The Control Unit
TECHNICAL SPECIFICATIONS OF ELECTRICAL CABLES Identification Cable characteristics MOTOR POWER SUPPLY cable 1 cable 3 x 1.5 mm Maximum length 10 m [note 4] ELECTRIC LOCK CONNECTION cable 1 cable 2 x 1 mm Maximum length 10 m ENCODER CONNECTION cable 1 cable 2 x 1 mm Maximum length 10 m [note 4] Note 1 If the power supply cable is longer than 30 m, a cable... -
Page 6: Electrical Connections
(photocells, digital keypads, transponder card mains power and therefore must be positioned in sight readers, etc.) to the control unit must be made through the Nice of the automation. If located in a concealed position, “Bluebus” system. For the other connections, refer to that spec- it must be equipped with a system that prevents inad- ified below. -
Page 7: Operations For Connection
ELECTRICAL CONNECTIONS Terminals Function Description Cable type Output for warning light mounting a 12 V (maximum 21 W) lamp. The Warning light output can be programmed (refer to the “Level 1 programming (ON- 2 x 0,5 mm Flash OFF)” paragraph). Output for 12 Va (maximum 15 VA) electric lock. -
Page 8: Connecting Other Devices To The Control Unit
4.3 CONNECTING OTHER DEVICES TO THE At the end of the installation procedure, or after CONTROL UNIT photocells or other devices have been removed, it is necessary to complete the learning procedure (see In any additional devices belonging to the system (e.g. tran- the “Learning of connected devices”... -
Page 9: Motor Selector
Table 4 SELECTING THE MOTOR TYPE Visualisation on Motor type Motor selector Oview Bluebus Stop Open Close MB4024 - MB5024 - 2 3 4 5 6 7 8 9 10 11 12 1 2 3 4 5 6 7 8 9 10 11 12 MB4024 HY7024 - HY7124 2 3 4 5 6 7 8 9 10 11 12... -
Page 10: Learning In Automatic Mode
If the first two manoeuvres (a and b) are not “clos- PROGRAMMING POSITIONS ing” but “opening” manoeuvres, press the Position Description button to stop the learning phase. At maximum closing position: when the leaf Position 0 this point, invert the control wires (external posi- relative to motor 2 strikes the closing (motor 2) tions with respect to the terminal) on the motor that... -
Page 11: Learning In Mixed Mode
LED “L2” flashes: position 0 of M2 LED “L8” flashes: position 1 of M2 – to command and move motor 2 to position “0” (“Fig- – to command and move motor 2 to position “1” (“Fig- ure 13”): press and hold the ure 13”): press and hold the button. -
Page 12: Checking The Gate Movement
“Maintenance schedule”, containing the maintenance in- structions for all the automation’s devices. 5.1 TESTING For all the above-mentioned documentation, Nice – The sequence of steps to be performed when running the test- through its technical assistance service – provides ing phase, as described below, refers to a typical system (“Fig- the following: pre-completed forms. -
Page 13: Programming
6.1 USING THE PROGRAMMING BUTTONS PROGRAMMING Button for commanding the gate opening Selection button during the programming phase. There are 3 buttons on the control unit: PROGRAMMING (“Figure 18”) which can be used both to command the control unit during the testing phase and to programme the Button used to stop a manoeuvre available functions. -
Page 14: Level 2 Programming (Adjustable Parameters)
LEVEL 1 FUNCTIONS (ON-OFF) Function Description Function ENABLED: the “electric lock” output switches its operation to “courtesy light”. Warning / Courtesy light Function NOT ENABLED: the output functions as an electric lock. Function ENABLED: the warning light starts flashing 3 seconds before the start of the manoeuvre to Pre-flashing signal in advance a dangerous situation. - Page 15 LEVEL 2 FUNCTIONS (ADJUSTABLE PARAMETERS) Entry Parameter Set value Description (level) Open - Stop - Close - Stop Open - Stop - Close - Open Open - Close - Open - Close CONDOMINIUM During the opening manoeuvre, the “Step-by-Step” and “Open”...
-
Page 16: Special Functions
LEVEL 2 FUNCTIONS (ADJUSTABLE PARAMETERS) Entry Parameter Set value Description (level) 1000 Adjusts the number of manoeuvres 1500 after which the automation 2500 Maintenance maintenance request is triggered notification 5000 (see the ““Maintenance notice” 10000 function” paragraph). 15000 20000 Result of 1 manoeuvre (most recent) Result of 2 manoeuvre... -
Page 17: Troubleshooting Guide
TROUBLESHOOTING... (troubleshooting guide) Some devices are configured for signalling the operating status or the presence of any anomalies. TROUBLESHOOTING GUIDE 7.1 SIGNALLING THROUGH WARNING LIGHT If a warning light is connected to the FLASH output (A) on the control unit, the light will flash once every 1 second while the manoeuvre is being performed. -
Page 18: Signals On The Control Unit
7.2 SIGNALS ON THE CONTROL UNIT The control unit has LEDs “L1-L8” on the buttons and LEDs “L9- L13” on the control unit terminals (“Figure 21”). Each of these LEDs can emit special signals both during nor- Bluebus Stop Open Close mal operation and in case on anomalies. -
Page 19: Anomaly Log
Table 11 SIGNALS OF LED (L1..L4) (“FIGURE 21”) Status Meaning Possible solution LEDs L1 - L2 Change in the number of It is necessary to run the device learning procedure (refer to the “Learning devices connected to the Slow flashing of connected devices”... -
Page 20: Connecting The Ibt4N Interface
“Table 12” and “Table 13” show the “Receiver outputs” and the 8.2 CONNECTING THE IBT4N INTERFACE “Control unit inputs” associated with each. The control unit is equipped with a “IBT4N”-type connector for the IBT4N interface, which allows for connecting all devices Table 12 equipped with BusT4 interface, such as, for example, Oview SMXI / SMXIS OR OXI / OXIFM / OXIT / OXITFM IN MODE 1 OR MODE... -
Page 21: Connecting The Ps324 Back-Up Battery
8.3 CONNECTING THE PS324 BACK-UP BATTERY PRODUCT MAINTENANCE The control unit is configured for being powered with PS324 back-up batteries that intervene in case of a power outage. Being an electronic part, the control unit does not require any PRODUCT MAINTENANCE Before installing a back-up battery, disconnect the special maintenance. -
Page 22: Technical Specifications
TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS All technical specifications stated in this section refer to an ambient temperature of 20°C (± 5°C). Nice S.p.A. reserves the right to apply modifications to the product at any time when deemed necessary, without altering its functions and intended use. -
Page 23: Conformity
“partly completed machinery” Note - The contents of this declaration correspond to declarations in the official document deposited at the registered offices of Nice S.p.a. and in particular to the last revision available before printing this manual. The text herein has been re-edited for editorial purposes. A copy of the original declaration can be requested from Nice S.p.a. (TV) I. - Page 24 NOTES 24 – ENGLISH...
-
Page 25: Instructions And Warnings For The User
INSTRUCTIONS AND WARNINGS FOR THE USER Before using the automation for the first time, ask the installer to Safety devices out of order: the automation can also be used explain the origin of any residual risks and take a few minutes when one or more safety devices are defective or out of order. - Page 26 NOTES 26 – ENGLISH...
- Page 27 NOTES ENGLISH – 27...
- Page 28 Nice SpA Via Callalta, 1 31046 Oderzo TV Italy www.niceforyou.com info@niceforyou.com...
