Removing & Installing
Bobbin Case

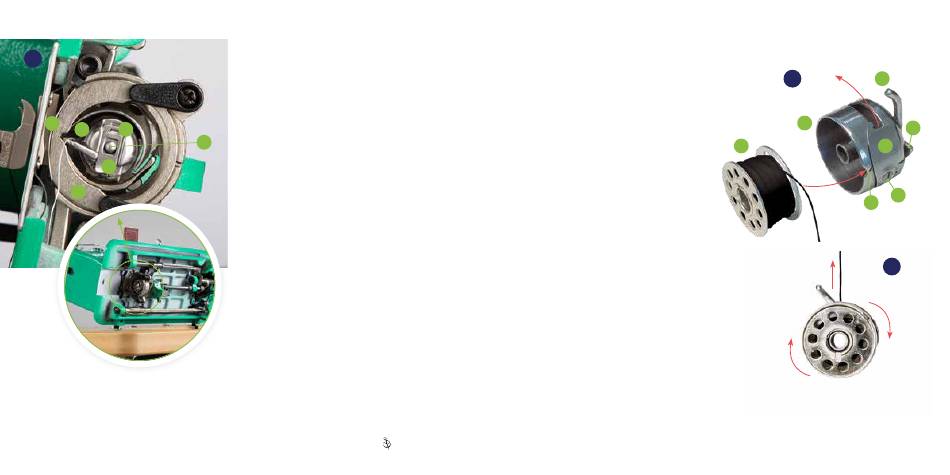

The bobbin case (B) is located
on the underside of the machine
beneath the presser foot (11)�
Removing — Lift the spring-loaded lever (E)
and pull the bobbin case out� With the lever held
open, the bobbin is captive in the bobbin case�
Release the lever and the bobbin will fall out�
Installing — Pull and hold the spring-loaded
lever outward to keep the bobbin from falling
out and push the case onto the axle of the gib
hook (F). The finger of the bobbin case (G)
should fit into the retaining ring's notch (H)�
If the lever (E) is held up until the bobbin
case is completely installed, the lever, when
released, will lock onto the axle and there will
be no clicking sound� If the lever is released
before the bobbin case is pushed completely
in place, there is a clicking sound when the
case is pushed all the way on. The finger of
the bobbin case will drop into the notch in the
hook's retaining ring (H)� Bobbin thread should
loosely dangle�
Sailrite�com
Installing Bobbin
in Bobbin Case
1� Insert a threaded bobbin (A) into the bobbin
case (B) as shown in image (12)�
2� Hold the tail of the thread while pushing the
bobbin into the bobbin case�
3� Pull the thread through the slit (C) in the
edge of the bobbin case�
4� Continue pulling the thread under the
tension plate (D)�
5� Snap thread into position under tension
plate and pull out about 12 to 18 inches of
thread, checking for consistent tension�
6� Holding the case with a view of the bobbin,
the bobbin should turn clockwise when pulling
on the thread tail (13)� If it is not, take the
bobbin out and flip it over.
