- Page 1 D9-DCR USER MANUAL INNOSILICON CONFIDENTIAL...
-
Page 2: Table Of Contents
INNOSILICON D9-DCR Table of Contents 1. OVERVIEW 2. ASSEMBLE THE MINER 2.1 Check the miner before power on 2.2 Connect the PSU 2.3 Connect the Ethernet Cable 3. OPERATE THE MINER 3.1 Enter the miner console 3.2 Set up the pool 3.3 Check the hashrate of the miner... -
Page 3: Overview

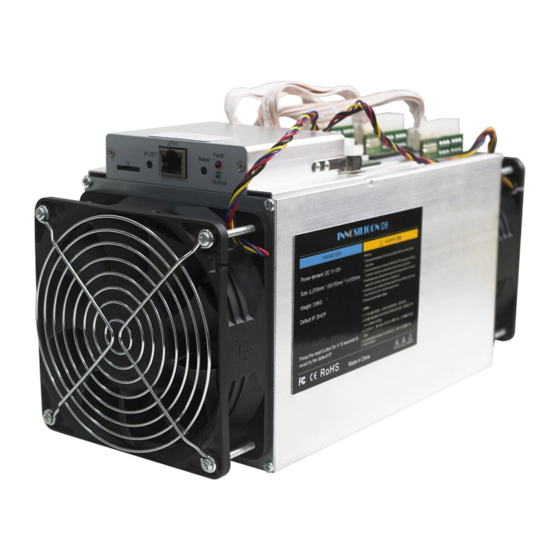

D9-DCR 1. OVERVIEW Part Number Algorithm Blake256 Hash Rate 2.4Th/s (+-8%) Power 1000W +/-8% Size (L×W×H) (L)310mm*(W)130mm*(H)155mm Net Weight 3.6KG (without PSU) Operating Temperature 0-40 ℃ Required rated PSU 1400W or above, 7 * PCI-E 6Pin Network Connection Ethernet INNOSILICON CONFIDENTIAL... -
Page 4: Assemble The Miner
D9-DCR 2. ASSEMBLE THE MINER 2.1 CHECK THE MINER BEFORE POWER ON · Check the warranty sticker is well or not, especially the hashboards PSU port side. If the warranty sticker is damaged when you received the miner, please contact our After-sales. -
Page 5: Connect The Psu
D9-DCR 2.2 CONNECT THE PSU Every hash board needs to be inserted with 2 PSU cables, controller only needs 1 PSU cable according to the following image . 2.3 CONNECT THE ETHERNET CABLE Insert one end of the Ethernet cable into the router and the other end into the slot shown in the following... -
Page 6: Operate The Miner
D9-DCR 3. OPERATE THE MINER 3.1 ENTER THE MINER CONSOLE DHCP(the Normal led on the control board should be blinking) is the default IP mode of the miner, find the IP via the router or the IP scanner.Enter the IP of the miner on the browser and press the Enter button. -
Page 7: Check The Hashrate Of The Miner
D9-DCR 3.3 CHECK THE HASHRATE OF THE MINER After set up the pool, the miner will mine for you. 3.4 NETWORK CONFIGURATION INNOSILICON CONFIDENTIAL... -
Page 8: Other
D9-DCR 3.5 OTHER PAGES 3.5.1 OVERVIEW 3.5.2 UPGRADE INNOSILICON CONFIDENTIAL... -
Page 9: Modify The Password
D9-DCR 3.5.3 MODIFY THE PASSWORD 3.5.4 REBOOT 3.5.5 FACTORY RESET INNOSILICON CONFIDENTIAL...
