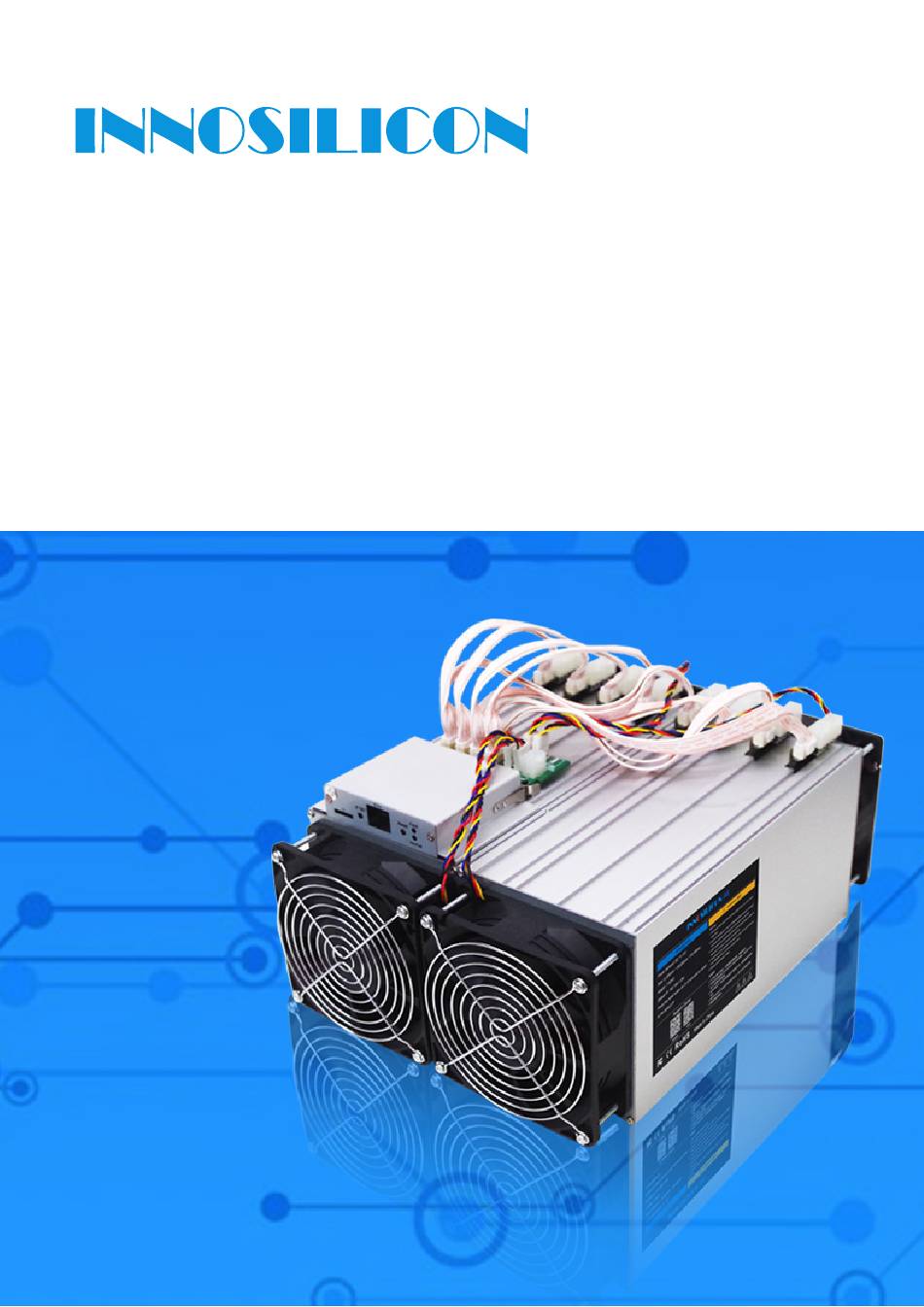

- Page 1 A6 LTCMaster USER MANUAL INNOSILICON CONFIDENTIAL...
-
Page 2: Table Of Contents
INNOSILICON A6 LTCMaster High Efficient LTCMaster Table of Contents 1. OVERVIEW 2. MINER ASSEMBLE 2.1 Check the miner before power on 2.2 Connect the PSU 2.3 Connect the Ethernet Cable 3. ENTER THE MINER CONSOLE 4. CONFIG THE MINER 5. APPENDIX 5.1 Modify the login password... -
Page 3: Overview

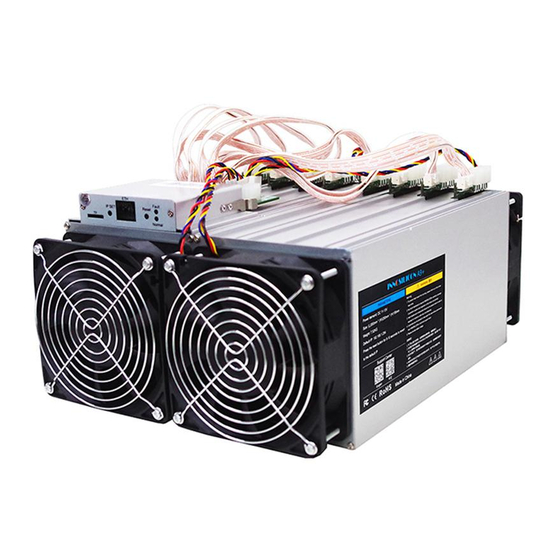

A6 LTCMaster 1. OVERVIEW Part Number A6 LTCMaster Hash Rate 1.23Gh/s (+-8%) Power 1500W+/-8% Size (L×W×H) (L)350mm*(W)250mm*(H)155mm (dual tube) Net Weight 8.46KG (without PSU) Operating Temperature 0-40 ℃ Required rated PSU 1800W or above, 17 * PCI-E 6Pin Network Connection... -
Page 4: Miner Assemble
A6 LTCMaster 2. CABLE CONNECTION 2.1 CHECK THE MINER BEFORE POWER ON · Check the warranty sticker is well or not, especially the hashboards PSU port side. If the warranty sticker is damaged when you received the miner, please contact our After-sales. -
Page 5: Connect The Psu
A6 LTCMaster 2.2 CONNECT THE PSU Every hash board needs to be inserted with 2 PSU cables, controller only needs 1 PSU cable according to the following image . 2.3 CONNECT THE ETHERNET CABLE Insert one end of the Ethernet cable into the router and the other end into the slot shown in the following... -
Page 6: Enter The Miner Console
A6 LTCMaster 3. ENTER THE MINER CONSOLE By default, the miner uses Static IP to access the control webpage of the miner. Input 192.168.1.254 into the browser, then click ‘Enter’ to enter the miner’s control webpage (Chrome is the suggested browser). - Page 7 A6 LTCMaster · Press the OK button twice to confirm the changes.Then modify the IP address of the miner (Do it as the follow step 4.4) to guarantee the miner and the router have the same network segment.Then connect the miner with the router,connect the PC with the router and select the “Obtain the IP address automatically”.Now you can enter the IP through the browser into the control interface...
-
Page 8: Config The Miner
A6 LTCMaster · Press the OK button twice to confirm the changes.Then modify the IP address of the miner (Do it as the follow step g) to guarantee the miner and the router have the same network segment.Then connect the miner with the router,connect the PC with the router and select the “Obtain the IP address automatically”.Now you can enter the IP through the browser into the control interface... - Page 9 A6 LTCMaster Password is wrong/error?—Please contact our after-sales people. 4.3 Enter the mining pool’s URL, Worker, password according to the following image, then click .The miner will start mining, and the page will return to the ‘Miner Configuration’ page. It will show the user’s modified setting.
- Page 10 A6 LTCMaster 4.4 To avoid IP conflict when using 2 or more miners at the same time, the IP address needs to be changed. Enter the network interface shown in the following image, and modify the IP address to you need, then click the “Save”...
- Page 11 A6 LTCMaster HW: means error in calculating INNOSILICON CONFIDENTIAL...
-
Page 12: Appendix
A6 LTCMaster 5. APPENDIX 5.1 MODIFY THE LOGIN PASSWORD Select the “Administration” interface at System, then you can modify your password. Then click to save your new password. Note: As the factory reset will not reset the password to the default password, you must take care your new password.
