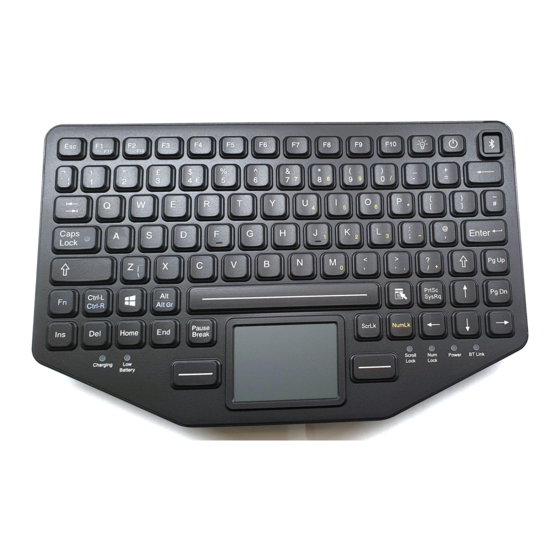

iKey BT-870-TP Instruction Manual

BT-870-TP
Esc F1
~ !
` 1
Caps
Lock
Shift
Ctrl-L
Fn
Ctrl-R
Ins Del
Charging
KEY SWITCH
MATERIAL: Industrial Silicone Rubber
LIFE: Greater Than 10 Million Cycles
TRAVEL: 0.055 in.
ACTUATION FORCE: 7.03 oz. +/- 1.06oz (200g +/- 30g)
FEEDBACK: Tactile with Mechanical Snap
POWER
Rechargeable Lithium Ion battery.
PROPRIETARY AND CONFIDENTIAL
iKey, Ltd.
Key Key
2621 Ridgpoint Dr. Suite 235
Austin, Texas 78754
12.01"
F2 F3 F4 F5 F6
F11 F12
%
@ # ^
$
5
2 3 4 6
Q W E R T Y
A S D F G H
Z X C V B
Alt-L
Alt-R
Pause
Home End
Break
Low
Battery
TEMPERATURE RANGE
HUMIDITY
©2017 iKey,Ltd. Part Number: BT-870-TP
Drawing Title: BT-870-TP-MKT
Voice: (512) 837-0283 Voice: (512) 837-0283
Fax: (512) 927-8530 Fax: (512) 927-8530
F7 F8 F9 F10
& * ( _ +
)
7 7 8 8 9 9 0 / - =
{ }
U I O P
4 5 6 * [ ]
:
J K L "
-
1 2 3 ;
'
< >
N M ?
Shift
, .
0 . +
/
PrtSc
SysRq
NumLk
ScrLk
Scroll Num BT Link
Power
Lock Lock
STORAGE: -40°F to +149°F (-40°C to +65°C)
OPERATING: 32°F to +140°F (0°C to +60°C)
100% Humidity Resistant
DATE CHANGES
01.05.17 Original
|
\
Enter
Pg Up
Pg Dn
VIBRATION
POWER SPECTRAL DENSITY: .04g/HZ
FREQUENCY RANGE: 20Hz-2Khz
DURATION OF TEST PER AXIS: 3 hours
SHOCK
3 X 11 ms pulses of 50g on each of 3 axis
WEIGHT
2.00 lbs +/- 0.10 lbs (0.91 kg +/- 0.05 kg)
Drawing Number: MKT0396
Revision: 1.0
INTL REV
AH 1.0
2.03"
0.71"
Sheet: 1 OF 3
ALH
Date: 01.05.17
