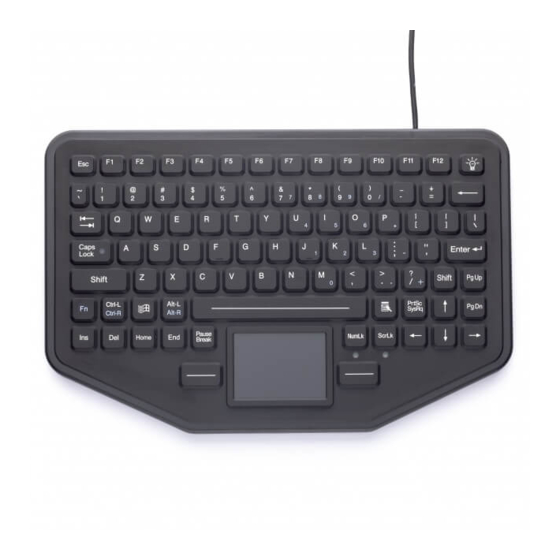

iKey SL-86-911 Features & Dimensions

SL-86-911-TP
F1
Esc
EMERGENCY
F11
~
! @ #
`
1 2 3
Q W
Caps
A S
Lock
Z
Shift
Ctrl-L Alt-L
Fn
Ctrl-R Alt-R
Ins Del Home End
KEY SWITCH
MATERIAL: Industrial Silicone Rubber
LIFE: Greater than 10 million cycles
TRAVEL: 0.055 in.
ACTUATION FORCE: 5.6 oz. (160g)
FEEDBACK: Tactile with Mechanical Snap
HUMIDITY
100% Humidity Resistant
©2007 IKEY,LTD
IKEY, LTD
2621 Ridgepoint Dr. Suite 235
Voice: (512) 837-0283
Austin, Texas 78754
Fax: (512) 927-8530
11.400"
F2 F3 F4 F5 F6
F12
%
$ ^ & *
5
4 6 7 8
7
E R T Y U
4
D F G H J
X C V B N
Pause
Break
POWER
KEYBOARD: 5V@20ma (from CPU port)
TOUCHPAD: 5V@6ma (from mouse connection port)
MAX POWER: ~200ma (with backlight)
FLAMMABILITY
PRINTED CIRCUIT BOARD: 94VO
SILICONE OVERLAY: 94HB
INTERFACE CABLE: 94VO
Part Number: SL-86-911-TP
Drawing Title: DIMENSIONS / FEATURES
F7 F8 F9 F10
( _
) +
9 -
0 =
8 9 /
{ }
I O P
[ ]
5 6 *
:
"
K L
Enter
; -
1 2 3
'
< >
?
M
Shift
, .
.
0 . / +
PrtSc
SysRq
NumLk
ScrLk
Drawing Number: MKT0080
Revision: 1.000
1.860"
|
\
Pg Up
Pg Dn
TEMPERATURE
STORAGE: -40 F to +194 F (-40 C to +90 C)
OPERATING: 32 F to +140 F (0 C to +60 C)
SHOCK
3 X 11 ms pulses of 50g on each of 3 axes
VIBRATION
POWER SPECTRAL DENSITY:
FREQUENCY RANGE:
DURATION OF TEST PER AXIS:
Sheet:
Date: 02.21.07
0.920"
.04g/HZ
20Hz-2Khz
3 hours
1 OF 2
JAE
