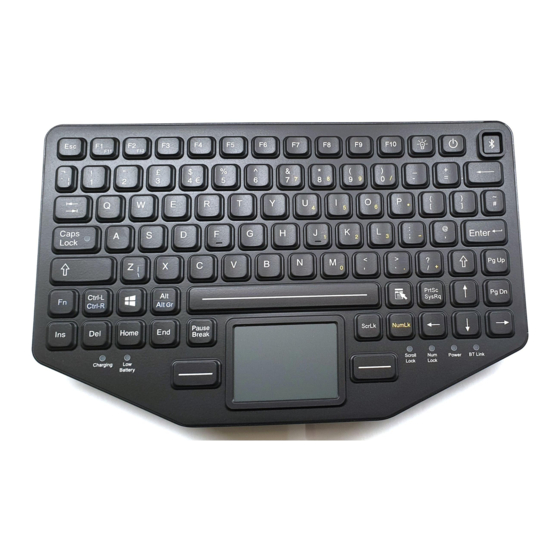

iKey BT-870-TP Operation Manual

Pairing Instructions

iKey's BT-870-TP unit is compatible with
any Windows or Android Operating
System device that has built in Bluetooth®
functionality.
-POWER ON: Press and hold the Power
Button for 3 seconds. Caps/Scroll/Num Lock
Indicators will flash twice and the Power
indicator will illuminate.
-POWER OFF: Press and hold the Power
Button for 3 second. All LED indicators will
turn off.
1. Power the keyboard ON.
2. Press and hold the Bluetooth Button until
the BT Link indicator begins to rapidly flash.
The BT-870-TP is now is search mode.
3. Follow the Bluetooth pairing instructions
provided by your host computer.
4. The BT Link will become solid once a
connection is made and will turn off after 30
seconds.
NOTE: A slow flashing BT Link indicates the
keyboard is attempting to re-pair to the last
connected Bluetooth host computer.
Backlight Button
www.iKey.com • 512.837.0283
©2017 iKey, Ltd. All rights reserved.
BT-870-TP
Operation Guide
Power Button
Bluetooth®
Button
Note:
from iKey with the internal
battery fully charged and
ready to use out of the box.

Sleep Mode

•
The BT-870-TP will go into sleep mode af-
ter 30 minutes of inactivity. To wake simply
press any key.
•
To wake the unit from sleep mode press
any key. The BT-870-TP will automatically
re-pair to the last connected Bluetooth host
computer.

Charging Instructions

•
To charge the keyboard, insert the provided
Micro USB charging cable into the back of the
keyboard and plug the other end of the cable
into a powered USB port on any computer.
The Charging LED indicator will illuminate
orange when charging and will turn off when
fully charged. In a fully discharged state,
the battery takes 5-6 hours to completely
recharge.
•
With average usage of the keyboard, the
anticipated battery life is three to four weeks.
The BT-870-TP ships
