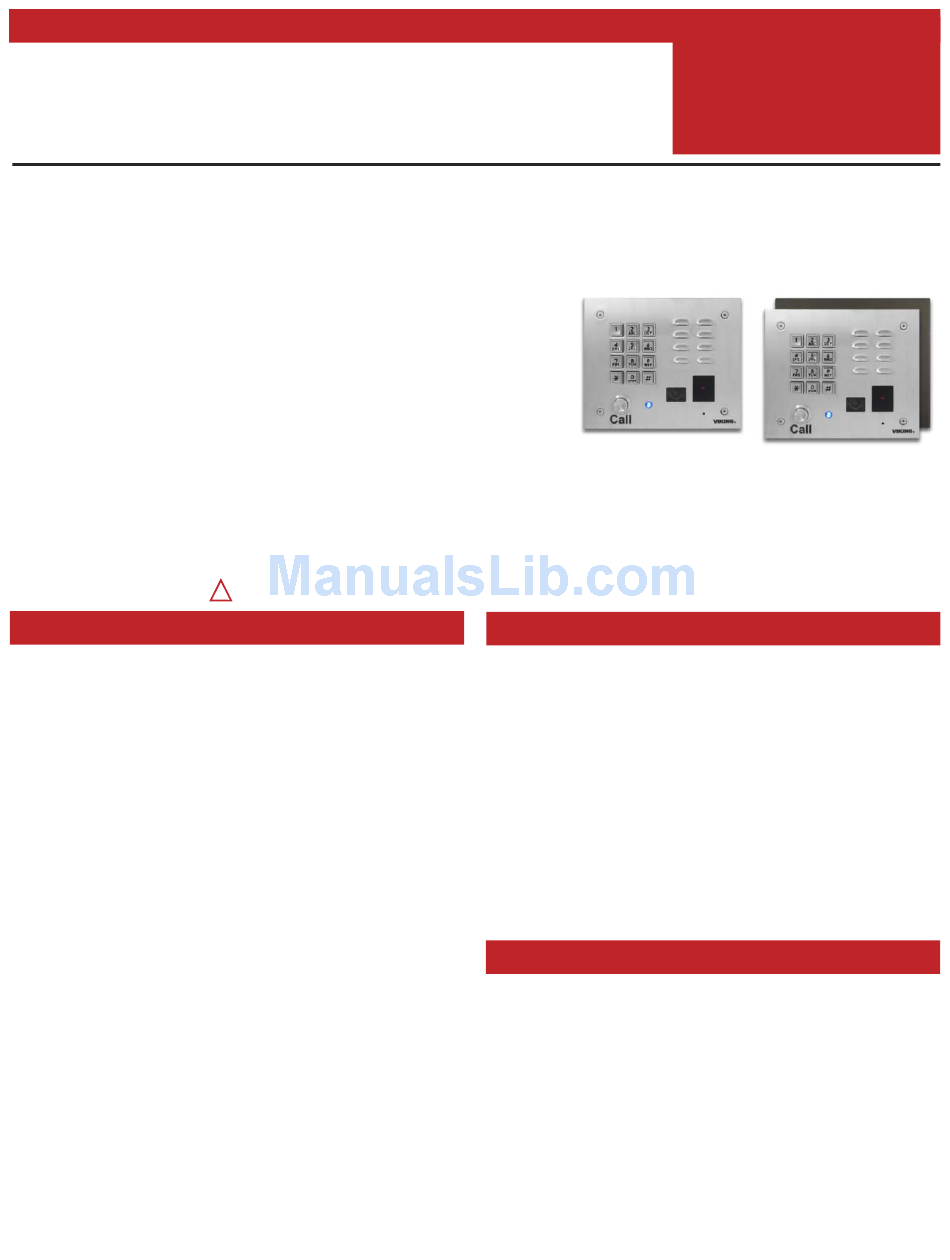

Designed, Manufactured and Supported in the USA
VIKING
C O M M U N I C A T I O N & S E C U R I T Y S O L U T I O N S
Vandal Resistant VoIP Entry Phones with
Built-In Entry System, Proximity Card Reader &
The K-1775-IP Series entry phones provide a tough and attractive handsfree phone for apartment, and residential
door entry or applications requiring a vandal resistant VoIP speaker phone with built-in 125kHz proximity card
reader and Analog Color Video Camera. The K-1775-IP Series VoIP Entry Phones are designed to provide quick
and reliable handsfree communication for SIP VoIP phone systems with PoE. The K-1775-IP Series entry
phones can be programmed from any PC on the same LAN or remotely using a Static IP Address. The Entry
phones can dial up to 250 programmable numbers, read up to 1,000 proximity card numbers and provide analog
CCTV video of who is at your door or gate.. The K-1775-IP Series entry phones are available in two attractive
finishes: "brushed stainless steel" and "oil rubbed bronze".
When a call initiated by the K-1775-IP is answered by an apartment or business tenant, a built-in contact closure
may be activated to control an electric gate or doorstrike. Up to 1,000 keyless entry codes may also be
programmed, providing tenants with keyless entry. The K-1775-IP also has a buit-in proximity card reader with
capacity to program up to 1,000 card numbers. Keyless entry codes and card numbers can be programmed to only allow access at specific times and/or day of the week. A request for exit
(REX) input is included for easy exiting. The K-1775-IP also has automatic call logging allowing you to review the time and date of the call, which door was open/closed, what keyless entry
code or proximity card was used, request for exit usage and whether it was an inbound or outbound call.
The K-1775-IP-EWP shares all of the features of the K-1775-IP in addition to Enhanced Weather Protection (EWP) for outdoor installations where the unit is exposed to precipitation or
condensation. EWP products feature foam rubber gaskets and boots, sealed connections, gel-filled butt connectors, as well as urethane or thermal plastic potted circuit boards. For more
information, see DOD# 859.
Features
• Built-in high resolution analog NTSC color video camera with wide viewing angle
tilt/swivel adjustments and wide operating temperature of -40°F to 140°F
• Built-in 125KHz 26-bit Wiegand proximity card reader with LED and beep card read
confirmation and EWP board protection
• Vandal Resistant Features: 14 gauge louvered 316 stainless steel faceplate with
permanent laser etched graphics, speaker/mic screen, heavy duty metal keypad and
"Call" button,scratch resistant powder coating (K-1775-BN-IP) and T-10 Security Torx
drive mounting screws
• Weather Resistant Features: Marine grade 316 stainless steel faceplate, screws and
push button switch. Switch internally sealed per IP67. Mylar speaker. Self-draining mic
mount. Faceplate, mic and speaker gaskets. Weather resistant powder paint
(K-1775-BN-IP)
• Compatible with the following Viking proximity cards and Fobs: PRX-C, PRX-C-ISO and
PRX-FOB, see DOD # 198
• Available in 2 standard faceplate finishes: 316 brushed stainless steel with laser etched
graphics or oil rubbed bronze powder paint with Copper metallic graphics
• Two sets of SPDT 2 Amp relay contacts for door/gate or camera control
• Optional RC-4A for Secure Remote Relay Control, See DOD# 582
• Blue "Call /Status" LED indicator
• SIP compliant (see pg 2 for list of compatible IP-PBX phone systems)
• PoE powered (class 2, <6.5 watts)
• Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
• Programmable to speed dial up to 250 numbers
• Cycles to roll over phone number on busy or no-answer
• Program up to 1,000 keyless entry codes and/or proximity card numbers
• Keyless entry codes and proximity card numbers can be programmed to only
allow access at specific times and day of week
• Call logging with time and date stamp
• Optional Enhanced Weather Protection (EWP), EWP products are designed to meet IP66
Ingress Protection Rating, see DOD# 859
• Hangs up on busy signal, time-out or touch tone command
• Extended temperature range (-40°F to 140°F)
• Volume adjustments for microphone and speaker
• Zinc plated steel rough-in box included
• Optional VE-6x7 Surface Mount Box available, See DOD# 424
• Optional VE-LIGHT kit to illuminate the front panel at night, See DOD# 428
• Self diagnostic reports via email (testing com, mic, speaker & switch)
PRODUCT MANUAL
Analog Color Video Camera
Installation requires the assistance of a Network Administrator / IT Technician.
!

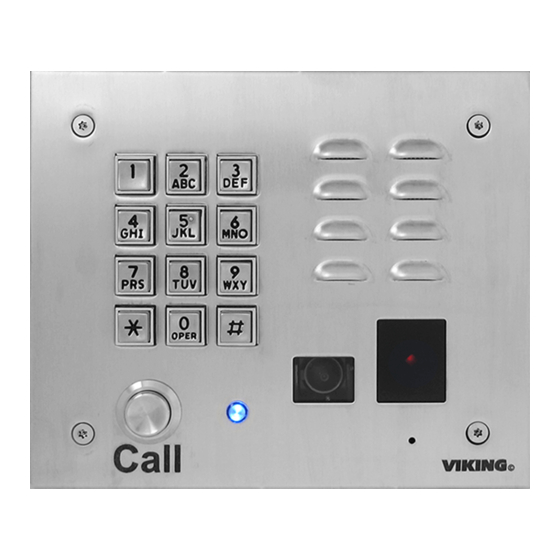

K-1775-IP
"Brushed 316 Stainless
Steel" (similar to brushed nickel)
(showing optional VE-6x7
surface mount box)
Applications
• Apartment Entry Phone
• Residential Gate Entrance or Door Entry Phone
• Courtesy and Customer Assistance Phone
• Automated Teller (ATM) Phone
• Security or Emergency Phone
• Hot-Line Phone
• Kiosk Phone with up to 250 number speed dialing
• Use with any of Viking's Proximity Cards: PRX-C,
PRX-C-ISO and PRX-FOB, see DOD # 198
www.vikingelectronics.com
Information: (715) 386-8861
Specifications
Power: PoE class 2 (<6.5 watts)
Dimensions: See Installation and Specifications
Operating Temperature: -40° C to 60° C (-40°F to
140°F)
Humidity - Standard Products: 5% to 95% non-
condensing
Humidity - EWP Products: Up to 100%
Audio Codecs: G711u, G711a, G722
Network Compliance: IEEE 802.3 af PoE, SIP 2.0
RFC3261, 100BASE-TX with auto cross over
Connections: (1) RJ45 10/100 Base-T, (12) gel-filled
butt connectors
K-1775-IP Series
VoIP Entry Phones with
Built-In Entry System, Proximity
Card Reader & Camera
September 25, 2015
K-1775-BN-IP
"Oil Rubbed Bronze"
(satin dark brown powder paint
with fine copper metallic)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Viking K-1775-IP Series
Summary of Contents for Viking K-1775-IP Series
- Page 1 250 programmable numbers, read up to 1,000 proximity card numbers and provide analog CCTV video of who is at your door or gate.. The K-1775-IP Series entry phones are available in two attractive finishes: “brushed stainless steel” and “oil rubbed bronze”.
- Page 2 Viking VoIP SIP System Compatibility List NOTE: Exclusion from this list means only that compatibility has not been verified, it does not mean incompatibility. For detailed configuration instructions for certain vendors below, see Configuring Viking VoIP Phone and SIP Servers, DOD# 944. Infrastructure Class...
-
Page 3: Camera Specifications
The standard camera is NOT compatible with IR illumina- tors. If IR illumination is required, you will need to replace the existing camera with a Viking model VCAM-1IR. For more information, see DOD# 190. -
Page 4: Features Overview
Condensation Drain Hole push again to disconnect. Solid 316 stainless steel internally sealed per IP67. Mounting Screws: (4) 6-32 X 3/4” Marine VIKING © grade 316 stainless steel, flat head, T-10 Laser Etched Graphics: For long lasting easy Torx security screws and drive bit (included) to read graphics (Copper Metallic on model K-1775-BN-IP). - Page 5 Installation and Specifications A. Mounting 5.5” Adhere gasket to front panel, centering over mounting holes Mounting Screws: (4) 6-32 X 3/4” Marine grade 316 stainless steel, flat head, T-10 Torx security 4.5” screws and drive bit (included) 3/4” Conduit Marine grade 316 stainless steel faceplate Knockouts and push button switch (sealed per IP67) Condensation Drain Hole...
- Page 6 * Note: RG59 or RG6 with solid center conductor and 95% bare copper braid shield. ** Note: For ease of installation, a Viking Female "F" to Wire Converter Cable can be used (Part # 261217) or "BNC" to wire converter cable (Part # U213510) can be used.
- Page 7 Vertical (Tilt) beyond 30 degrees or tilt beyond 20 degrees. OPER Adjustment +/- 20 degrees maximum VIKING © Typical Installation on SIP Based VoIP Phone System 100m (328 ft) max* Viking K-1770-IP Entry Phone...
- Page 8 For applications requiring additional security a Viking model RC-4A remote relay controller can be used. The relay controller is mounting securely inside the building connected to the same LAN as the K-1775-IP. The on board door strike relays would not be used in this case as the K-1775-IP will send an encrypted message to the RC-4A to activate its relays which control the door strikes/gates.
- Page 9 Programming” Viking K-1700-IP Phone Programming” application, click on the Viking K-1700-IP Tech Tool icon on your desk top. The Main screen will appear, allowing the user to program any K-1700-IP phone connected to that LAN. A. Manually Muting SIP/Network Failure Alarm Beeps...
- Page 10 C. Manually Resetting All Network Parameters to Factory Default Step 1. Power down the K-1775-IP phone by disconnecting the RJ45 plug. Step 2. Press and hold the CALL button, then reconnect the RJ45. Continue to hold the button until you hear 2 beeps, (approximately 6 seconds). Continue to hold the button until you hear 4 more beeps, approximately 6 seconds later, then release the button.
- Page 11 Programming Features Index DESCRIPTION Page, Section Connect/Disconnect 12, 1 Phone Number Database 12, 2 Event Log 13, 3 Entry Code Database 13, 4 Phone Name 14, 5 Mute Alarm Until Next Failure 14, 6 Phone Firmware 14, 7 IP Firmware 14, 8 Import/Export 14, 9...
-
Page 12: Programming Features
Programming Features 1. Connect/Disconnect To connect to a K-1775-IP shown in the upper left VoIP Phones Discovered window, simply click the unit then click the “Connect” button. The preprogrammed settings should then fill the tech tool window. When you are finished writing the programming changes, the disconnect button allows you to disconnect from the unit you have finished programming and connect to the next unit. - Page 13 3. Event Log The Event Log button is used to open the Event Log screen. The Event Log screen shows you the time and date of each event, the event type, relay action (which door/gate was opened or closed), entry code index and speed dial lo- cation.
- Page 14 An alternative method of updating can be done by clicking the phone firmware “Up- date” button. You can then browse to the folder that contains the HEX file for updating the unit’s firmware. This method is typically only used when Viking Technical Support has sent you updated firmware. 8. IP Firmware If new K-1775-IP firmware is available, after opening the programming software a pop window will come up asking you if you would like to update firmware.
- Page 15 15. Ring Cadence When “Auto Answer/Ring” on the K-1775-IP is set to “Loud Ring” or “Loud Ring with AGC” the Loud Ring cadence can be programmed to one of 4 different cadence. Normal Ring (single ring, 2 sec on 4 sec off), Double Ring (double ring, 1 sec on .5 sec off 1 sec on 3.5 sec off), Short-Short-Long (triple ring, .5 sec on .5 sec off .5 sec on .5 sec off 1 sec on 3 sec off), Short-Long-Short (triple ring, .5 sec on .5 sec off 1 sec on .5 sec off .5 sec on 3 sec off).
- Page 16 6 = Loud Ring Flash Mode. When programmed for Loud Ring Flash Mode the relay will momentarily turn on and off in a 400ms on/off cadence while the ringing extension is called. This mode is useful for activating a Viking LPL-1 Remote Visual Indicator, etc.
- Page 17 29. Latch Commands (Enable/Disable Relay Latching Commands) When programmed to “Enable” (factory default) the Remote Access Operation Commands (Q0 and Q1) to Un-Latch or Latch the relay are enabled. When programmed to “Disable” the Remote Access Operation Commands (Q0 and Q1) to Un-Latch or Latch the relay are disabled.
-
Page 18: Operation
38. Dial Next Number on Busy If enabled and a busy is detected, the K-1775-IP phone will dial the “Roll Over” speed dial number. Notes: This feature is enabled in the factory default setting. If the busy signal is interrupted with a promotional message, contact your central office to have it removed. -
Page 19: Troubleshooting
You may silence the error beeps, per instance, by pressing and holding the CALL button for 5 seconds or by clicking the “Mute Alarm Until Next Failure” button in the Viking K-1700-IP Programming Software (see section A on page 9). The error... -
Page 20: Related Products
The VE-3x5, VE-5x5, VE-6x7 and VE-5x10 add vandal and weather resistance, as well as ver- satility to many Viking products. The VE-Series backboxes are available in black fine texture pow- der painted steel or Marine Grade 316 stainless steel. The weather resistant boxes are designed to be surface mounted to a wall, post, single gang box, or a VE-GNP gooseneck pedestal. - Page 21 The RC-4A can be configured to work as a remote relay for Viking VoIP series entry phones, controlling door strikes and gates when a remote relay is required for security reasons. It can also be programmed to send an email or text message in response to a change in one or more of the sensor inputs.
-
Page 22: Warranty
TWO YEAR LIMITED WARRANTY Viking warrants its products to be free from defects in the workmanship or materials, under normal use and service, for a period of two years from the date of purchase from any authorized Viking distributor. If at any time during the warranty period, the product is deemed defective or malfunctions, return the product to Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI., 54016.
