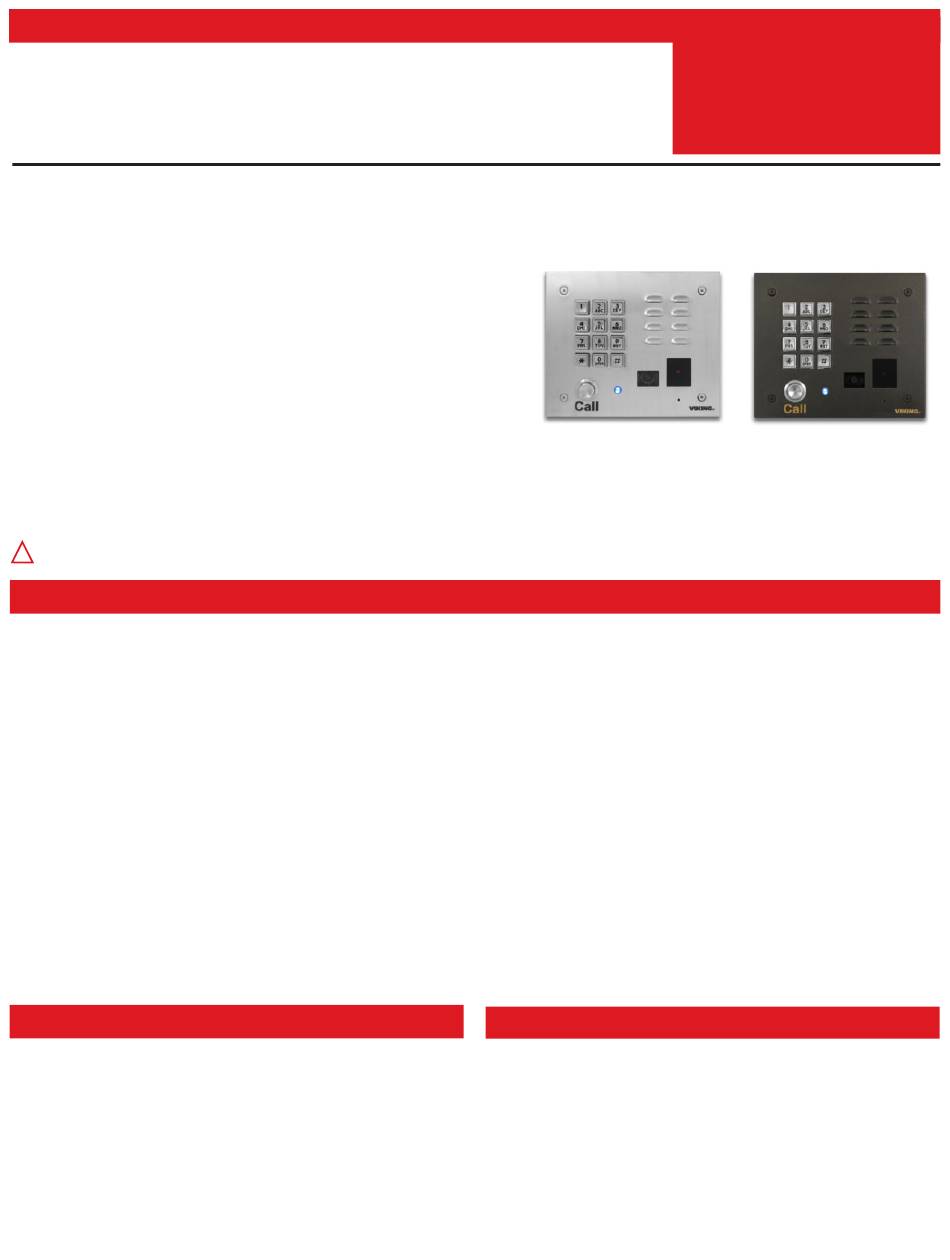

Designed, Manufactured and Supported in the USA
VIKING
S E C U R I T Y & C O M M U N I C A T I O N S O L U T I O N S
Vandal Resistant VoIP Entry Phone System with Integrated
Proximity Card Reader and Analog Color Video Camera
The K-1775-IP Series entry phones provide a durable and attractive hands-free phone for apartment
and residential door entry or applications requiring a vandal resistant VoIP speaker phone with an
integrated 125 KHz Proximity Card Reader and analog Color Video Camera. The K-1775-IP phone is
designed to provide quick and reliable hands-free communication for SIP VoIP phone systems with
PoE. The unit can be programmed from any PC on the same LAN or remotely using a Static IP
Address. The K-1775-IP entry phone can dial up to 250 programmable numbers and another 250
rollover numbers, read up to 1000 proximity card numbers and provide CCTV video of the entry area.
They are available in two attractive finishes: "Brushed Stainless Steel" and "Oil Rubbed Bronze".
When the K-1775-IP phone is connected to an apartment or business tenant, a built-in contact closure
may be activated to control an electric gate or door strike. Up to 1,000 keyless entry codes may be
programmed, providing tenants with keyless entry. The K-1775-IP has a built-in Proximity Card Reader
with capacity to program up to 1,000 card numbers. Keyless entry codes and card numbers can be
programmed to only allow access at specific times and/or day of the week. The K-1775-IP includes a
request for exit (REX) input and also offers activity logging.
Installation requires the assistance of a Network Administrator / IT Technician.
!
• Built-in high resolution analog NTSC color video camera with wide viewing angle,
tilt/swivel adjustments and wide operating temperature: -40°F to 140°F
• Built-in 125KHz 26-bit Wiegand proximity card reader with LED and beep card
read confirmation and EWP board protection
• Vandal Resistant Features: 14 gauge louvered 316 stainless steel faceplate with
permanent laser etched graphics. Speaker/mic screen. Heavy duty metal keypad
and "Call" button. Scratch resistant powder coating (K-1775-BN-IP). T-10 Security
Torx drive mounting screws.
• Weather Resistant Features: Marine grade 316 stainless steel faceplate, screws
and push button switch. Switch internally sealed per IP67. Mylar speaker. Self-
draining mic mount. Faceplate, mic and speaker gaskets. Weather resistant
powder paint (K-1775-BN-IP)
• Available in 2 standard finishes: 316 brushed stainless steel with laser etched
graphics or oil rubbed bronze powder paint with copper metallic graphics
• Two sets of SPDT 2 Amp relay contacts for door/gate or camera control
• Optional RC-4A for Secure Remote Relay Control, see DOD 582
• Blue "Call /Status" LED indicator
• SIP compliant (see page 2 for list of compatible IP-PBX phone systems)
• PoE powered (class 2, <6.5 watts)
• Outbound Proxy, Authentication ID, Peer to Peer, VLAN Tagging
• Automatic Noise Canceling (ANC) feature for operation in noisy environments
Applications
• Apartment Entry Phone
• Residential Gate Entrance
• Door Entry Phone
• Courtesy Assistance Phone
• Customer Service Phone
• Automated Teller (ATM) Phone
• Security or Emergency Phone
Information: 715-386-8861
www.VikingElectronics.com
PRODUCT MANUAL
Features
• Hot-Line Phone
• Kiosk Phone with up to
250 number speed dialing
• Use with any of Viking's
Proximity Cards: PRX-C,
PRX-X-ISO and PRX-FOB,
see DOD 198
K-1775-IP
"Brushed 316 Stainless Steel"
(similar to brushed nickel)
The K-1775-IP-EWP shares all of the features of the K-1775-IP in addition to
Enhanced Weather Protection (EWP) for outdoor installations where the unit is
exposed to precipitation or condensation. EWP products feature foam rubber
gaskets, sealed connections, gel-filled butt connectors, as well as urethane or
thermal plastic potted circuit boards. See DOD 859 for more on EWP.
• Viking's proprietary VOX switching eliminates the need for "Push to Talk" mode
• Network downloadable firmware
• 26 Bit Wiegand input for additional proximity card readers, see DOD 221 & 228
• Programmable to speed dial up to 250 numbers
• Cycles to roll over phone number on busy or no-answer
• Program up to 1,000 keyless entry codes and/or proximity card numbers
• Keyless entry codes and proximity card numbers can be programmed to only allow
access at specific times and day of week
• Event logging with time and date stamp
• Optional Enhanced Weather Protection (EWP), EWP products are designed to meet
IP66 Ingress Protection Rating, see DOD 859
• Hangs up on busy signal, time-out or touch tone command
• Remotely programmable
• Extended temperature range (-40°F to 140°F)
• Programmable volume adjustments for microphone and speaker
• Selectable auto-answer feature for monitoring
• Zinc plated steel rough-in box included
• Optional VE-6x7 Surface Mount Box available, see DOD 424
• Optional VE-LIGHT kit to illuminate the front panel at night, see DOD 428
• Diagnostics (for testing mic, speaker, relays and proximity cards)
Specifications
Power: PoE class 2 (<6.5 watts)
Dimensions: Overall: 5.5" x 6.5" x 2.6" (140mm x 165mm x 66mm)
Rough-in box: 4.5" x 5.5" x 2.5" (114mm x 140mm x 64mm)
Shipping Weight: 3.4 lbs (1.5 kg)
Operating Temperature: -30°F to 140°F (-34° C to 60° C)
Humidity - Standard Products: 5% to 95% non-condensing
Humidity - EWP Products: Up to 100%
Audio Codecs: G711u, G711a, G722
Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with
auto cross over
Regulatory Compliance: CE, FCC Part 15 and Canada ICES-003 Class A
Connections: (1) RJ45 10/100 Base-T, (14) gel-filled butt connectors
K-1775-IP Series
VoIP Entry Phone System
with Built-In Proximity Card
Reader and Color Camera
November 6, 2019

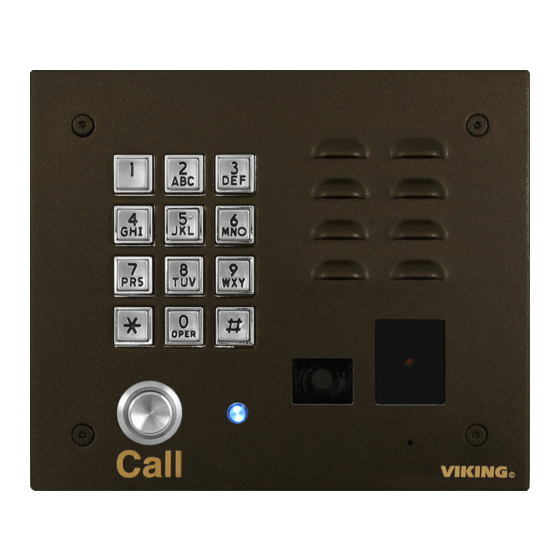

K-1775-BN-IP
"Oil Rubbed Bronze"
(satin dark brown with fine copper metallic)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K-1775-BN-IP and is the answer not in the manual?

Questions and answers

Related Manuals for Viking K-1775-BN-IP

Summary of Contents for Viking K-1775-BN-IP

  • Page 1 See DOD 859 for more on EWP. Features • Viking’s proprietary VOX switching eliminates the need for “Push to Talk” mode • Built-in high resolution analog NTSC color video camera with wide viewing angle, • Network downloadable firmware tilt/swivel adjustments and wide operating temperature: -40°F to 140°F...
  • Page 2 VoIP SIP System Compatibility For compatibility and vendor specific detailed configuration instructions, see the Viking VoIP SIP System Compatibility List, DOD 944. To open and download this PDF file: Scan the QR code below to open 1. Go to www.vikingelectronics.com...

  • Page 3: Camera Specifications

    The standard camera is NOT compatible with IR illumina- tors. If IR illumination is required, you will need to replace the existing camera with a Viking model VCAM-1IR. For more information, see DOD# 190.

  • Page 4: Features Overview

    316 stainless steel, flat head, T-10 © Laser Etched Graphics: For long lasting easy Torx security screws and drive bit (included) to read graphics (Copper Metallic on model K-1775-BN-IP). Camera Rear (PCB) View of K-1775-IP Optional: Connect to an additional Power...

  • Page 5: Installation And Mounting

    Installation and Mounting 2.5” Peel paper liner and adhere gasket to back of Rough-In Box panel, centering over mounting holes. (included) 5.5” Caution: For rough surfaces (ie: brick, stucco, etc.) additional caulking may be required. Earth Ground the Green/Yellow wire 4.5”...
  • Page 6 * Note: RG59 or RG6 with solid center conductor and 95% bare copper braid shield. ** Note: For ease of installation, a Viking Female "F" to Wire Converter Cable can be used (Part # 261217) or "BNC" to wire converter cable (Part # U213510) can be used.

  • Page 7: Adjusting The Camera

    Important: To prevent the edge of the faceplate from being viewed in the video image, do not rotate the camera beyond 30 degrees or tilt beyond 20 degrees. Horizontal (Rotation) Adjustment +/- 30 degrees maximum Vertical (Tilt) OPER Adjustment +/- 20 degrees maximum VIKING ©...
  • Page 8 2. Click K-1775-IP in the search results 3. Scroll down the page to Downloads, click IP Programming Software 4. Install the programming software by saving or opening the file and then clicking on setup Viking IP Programming.exe 5. Follow the prompts on your screen to complete software installation.

  • Page 9: Connect / Disconnect

    Call button for 5 seconds (2 beeps will then be heard) or by clicking the “Mute Alarm Until Next Failure” tab in the Viking VoIP programming software. The LED will continue to flash allowing you to trouble shoot the failure.
  • Page 10 C. Configuring the K-1775-IP Network Settings Open the “Viking IP Programming” software on a windows PC that is connected to the same LAN as the K-1775-IP Step 1. Series phone to be programmed. The window in the upper left corner of the menu will show you each K-1775-IP Series phone that is connected to that LAN.
  • Page 11 D. Configuring K-1775-IP VLAN Settings Step 1. Click on the “VLAN” tab Step 2. Disable or enable VLAN tagging by setting the value of “VLAN Tagging”. Step 3. Set the VLAN tag ID by selecting an integer (1 to 4094) in “ID for all packets”. Set the Priority Code Point (PCP) value for all not SIP and RTP packets in the “PCP for all packets”...
  • Page 12 Programming Features Index DESCRIPTION Section Page Connect/Disconnect VLAN Settings Unit Name SIP Server Peer to Peer Settings Outbound Proxy Authentication ID Register Fails Phonel Number Database Event Log Entry Code Database Keyless / Card Logging Security code (factory set to 845464) Access Code (1 - 6 digits, blank = disabled, factory set to 123456) Weigand Direction Select Time Zone...

  • Page 13: Programming Features

    Programming Features 1. Unit Name Up to a 31 character unit name can be assigned to the K-1775-IP Series Phone being programmed. 2. SIP Server Enter the IP address or URL of your SIP server or service provider in this field. The SIP server IP address is limited to 74 characters.
  • Page 14 7. Phone Number Database Clicking on the “Phone Number Database” button will open a screen allowing you to program all the Tenants Name’s, Speed Dial Numbers, and Primary and Roll Over phone numbers. Tenant names are stored locally on the PC and are not uploaded.

  • Page 15: Event Log

    8. Event Log The Event Log button is used to open the Event Log screen. The Event Log screen shows you the time and date of each event, the event type, relay action (which door/gate was opened or closed), entry code index and phone number index with tenant name.

  • Page 16: Security Code

    9. Entry Code Database Clicking on the “Entry Code Database” button will open the Entry Code Database screen. The Entry Code Database will then download, this can take over a minute. The Entry Code Database will allow you to program the Relay Function, Relay 1 or 2, once only (one time use only), Entry Type (Card, Keyless or both), Keyless Code, Proximity Card #, Facility Code, Day of week, Time of Day and Tenant Name.

  • Page 17: Select Time Zone

    With relay 1 and/or 2 set to “Internal” the K-1775-IP will activate its on board relays for doorstrike / gate control. Relay 1 and/or 2 should be set to “External” for higher security installations when using a Viking model RC-4A remote relay controller to activate the doorstrike / gate controller (see page 23).
  • Page 18 Ring Flash Mode: When programmed for Ring Flash Mode the relay will momentarily turn on and off in a 400ms on/off cadence while the ringing extension is called. This mode is useful for activating a Viking LPL-1 Remote Visual Indicator, etc.
  • Page 19 22. Relay Latch Commands When set to “Enabled” the Remote Access Operation Commands to Un-Latch or Latch the relay are enabled. When set to “Disable” the Remote Access Operation Commands to Un-Latch or Latch the relay are disabled. Disabling the Latch commands can be useful in applications where you want to eliminate the possibility of inadvertently entering a latch command leaving a gate open/closed, etc.
  • Page 20 31. Call Length Time Out This feature selects the maximum length of time that calls can be connected. Programmable in increments of 1 minute up to a maximum of 9 minutes or disabled. With the call length disabled, the K-1775-IP phone must rely on a call ended signal or a busy signal to hang-up.
  • Page 21 An alternative method of updating can be done by clicking the IP firmware “Update IP” button. You can then browse to the folder that contains the PIP file for updating the unit’s IP firmware. This method is typically only used when Viking Technical Support has sent you updated IP firmware.

  • Page 22: Operation

    46. Diagnostics The Diagnostics section in the Viking IP Programming can be used to test the functionality of the two relays, read current relay status, perform mic/spkr diagnostics, or to display information on the last card or fob detected by the card reader.

  • Page 23: Troubleshooting

    ” button on the keypad for 5 seconds or by clicking the “Mute Alarm Until Next Failure” button in the Viking IP Programming Software (see section 39 on page 21). The error beeps automatically re-enable once the unit is registered, to alert of any new problems that arise.
  • Page 24 The front panel of the K-1775-IP is mounted using security Torx screws to help prevent intruders from removing the panel and accessing the on board door strike/gate control relays. For applications requiring additional security, a Viking model RC-4A remote relay controller can be used. The relay controller is mounted securely inside the building and connected to the same LAN as the K-1775-IP.

  • Page 25: Related Products

    For more information, see DOD# 424. Add Panel Lighting to Your Viking VoIP Entry Phone The VE-LIGHT kit adds bright LED illumination to any VoIP entry phone that is housed in a Viking VE-5x5, VE-6x7 or VE-5x10 enclosure.
  • Page 26 The RC-4A can be configured to work as a remote relay for Viking VoIP series entry phones, controlling door strikes and gates when a remote relay is required for security reasons. It can also be programmed to send an email or text message in response to a change in one or more of the sensor inputs.

  • Page 27: Warranty

    TWO YEAR LIMITED WARRANTY Viking warrants its products to be free from defects in the workmanship or materials, under normal use and service, for a period of two years from the date of purchase from any authorized Viking distributor. If at any time during the warranty period, the product is deemed defective or malfunctions, return the product to Viking Electronics, Inc., 1531 Industrial Street, Hudson, WI., 54016.
