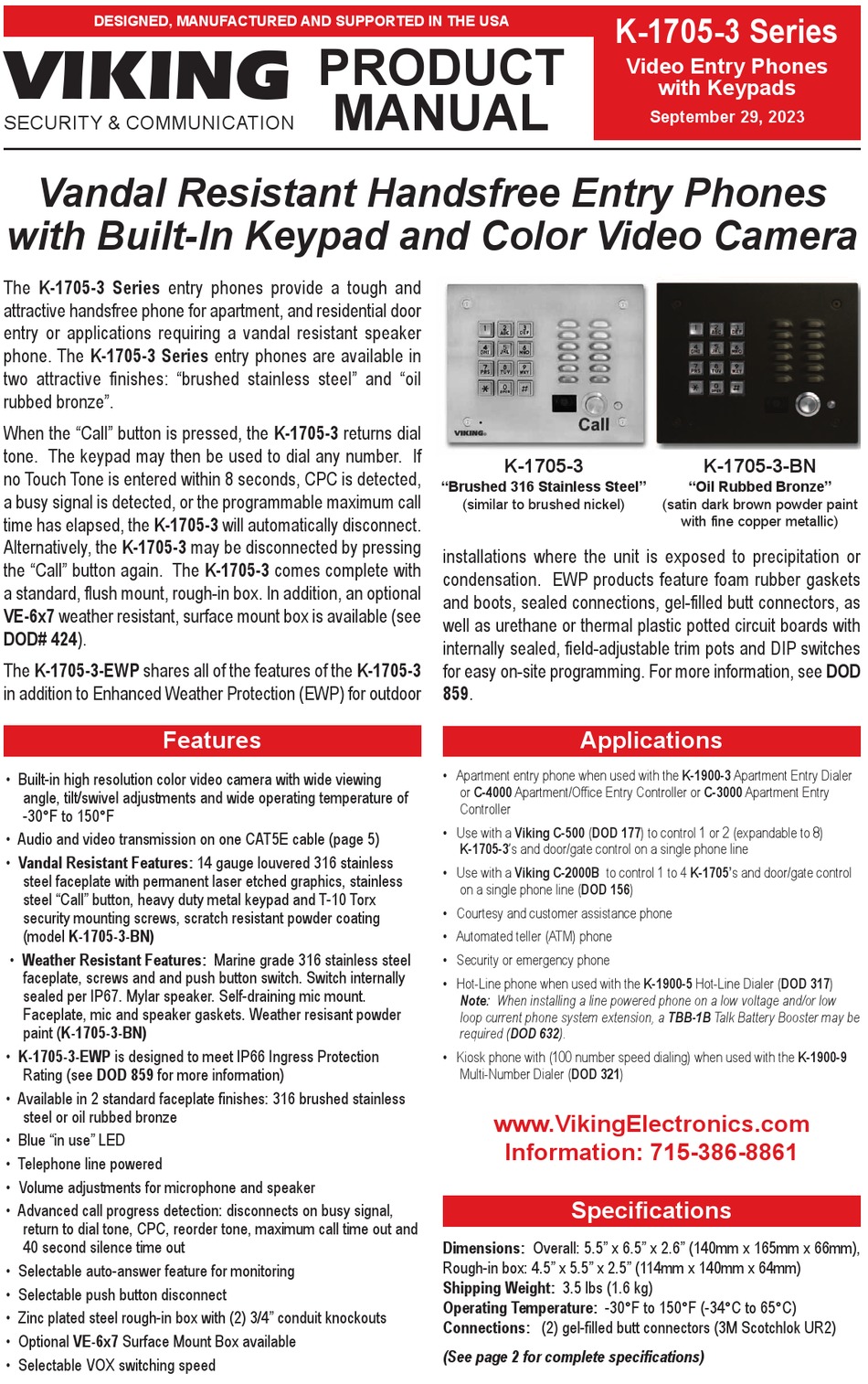

Viking K-1705-3 Series Product Manual

DESIGNED, MANUFACTURED AND SUPPORTED IN THE USA
VIKING
SECURITY & COMMUNICATION
Vandal Resistant Handsfree Entry Phones
with Built-In Keypad and Color Video Camera

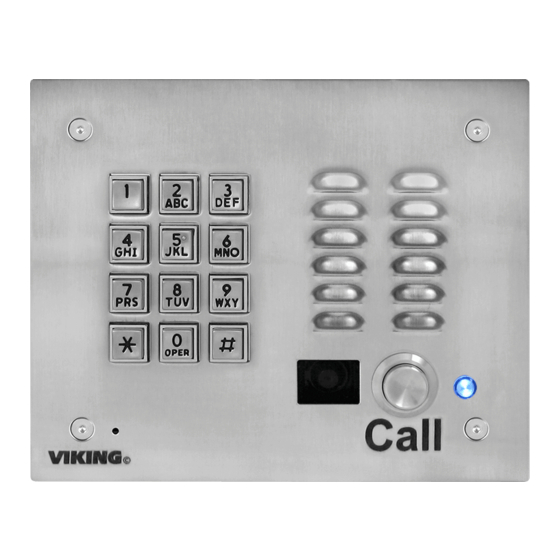

The K-1705-3 Series entry phones provide a tough and
attractive handsfree phone for apartment, and residential door
entry or applications requiring a vandal resistant speaker
phone. The K-1705-3 Series entry phones are available in
two attractive finishes: "brushed stainless steel" and "oil
rubbed bronze".
When the "Call" button is pressed, the K-1705-3 returns dial
tone. The keypad may then be used to dial any number. If
no Touch Tone is entered within 8 seconds, CPC is detected,
a busy signal is detected, or the programmable maximum call
time has elapsed, the K-1705-3 will automatically disconnect.
Alternatively, the K-1705-3 may be disconnected by pressing
the "Call" button again. The K-1705-3 comes complete with
a standard, flush mount, rough-in box. In addition, an optional
VE-6x7 weather resistant, surface mount box is available (see
DOD# 424).
The K-1705-3-EWP shares all of the features of the K-1705-3
in addition to Enhanced Weather Protection (EWP) for outdoor
Features
• Built-in high resolution color video camera with wide viewing
angle, tilt/swivel adjustments and wide operating temperature of
-30°F to 150°F
• Audio and video transmission on one CAT5E cable (page 5)
• Vandal Resistant Features: 14 gauge louvered 316 stainless
steel faceplate with permanent laser etched graphics, stainless
steel "Call" button, heavy duty metal keypad and T-10 Torx
security mounting screws, scratch resistant powder coating
(model K-1705-3-BN)
• Weather Resistant Features: Marine grade 316 stainless steel
faceplate, screws and and push button switch. Switch internally
sealed per IP67. Mylar speaker. Self-draining mic mount.
Faceplate, mic and speaker gaskets. Weather resisant powder
paint (K-1705-3-BN)
• K-1705-3-EWP is designed to meet IP66 Ingress Protection
Rating (see DOD 859 for more information)
• Available in 2 standard faceplate finishes: 316 brushed stainless
steel or oil rubbed bronze
• Blue "in use" LED
• Telephone line powered
• Volume adjustments for microphone and speaker
• Advanced call progress detection: disconnects on busy signal,
return to dial tone, CPC, reorder tone, maximum call time out and
40 second silence time out
• Selectable auto-answer feature for monitoring
• Selectable push button disconnect
• Zinc plated steel rough-in box with (2) 3/4" conduit knockouts
• Optional VE-6x7 Surface Mount Box available
• Selectable VOX switching speed
PRODUCT
MANUAL
"Brushed 316 Stainless Steel"
(similar to brushed nickel)
installations where the unit is exposed to precipitation or
condensation. EWP products feature foam rubber gaskets
and boots, sealed connections, gel-filled butt connectors, as
well as urethane or thermal plastic potted circuit boards with
internally sealed, field-adjustable trim pots and DIP switches
for easy on-site programming. For more information, see DOD
859.
• Apartment entry phone when used with the K-1900-3 Apartment Entry Dialer
or C-4000 Apartment/Office Entry Controller or C-3000 Apartment Entry
Controller
• Use with a Viking C-500 (DOD 177) to control 1 or 2 (expandable to 8)
K-1705-3's and door/gate control on a single phone line
• Use with a Viking C-2000B to control 1 to 4 K-1705's and door/gate control
on a single phone line (DOD 156)
• Courtesy and customer assistance phone
• Automated teller (ATM) phone
• Security or emergency phone
• Hot-Line phone when used with the K-1900-5 Hot-Line Dialer (DOD 317)
Note: When installing a line powered phone on a low voltage and/or low
loop current phone system extension, a TBB-1B Talk Battery Booster may be
required (DOD 632).
• Kiosk phone with (100 number speed dialing) when used with the K-1900-9
Multi-Number Dialer (DOD 321)
Dimensions: Overall: 5.5" x 6.5" x 2.6" (140mm x 165mm x 66mm),
Rough-in box: 4.5" x 5.5" x 2.5" (114mm x 140mm x 64mm)
Shipping Weight: 3.5 lbs (1.6 kg)
Operating Temperature: -30°F to 150°F (-34°C to 65°C)
Connections: (2) gel-filled butt connectors (3M Scotchlok UR2)
(See page 2 for complete specifications)
K-1705-3 Series
Video Entry Phones
September 29, 2023
K-1705-3
Applications
www.VikingElectronics.com
Information: 715-386-8861
Specifications
with Keypads
K-1705-3-BN
"Oil Rubbed Bronze"
(satin dark brown powder paint
with fine copper metallic)
