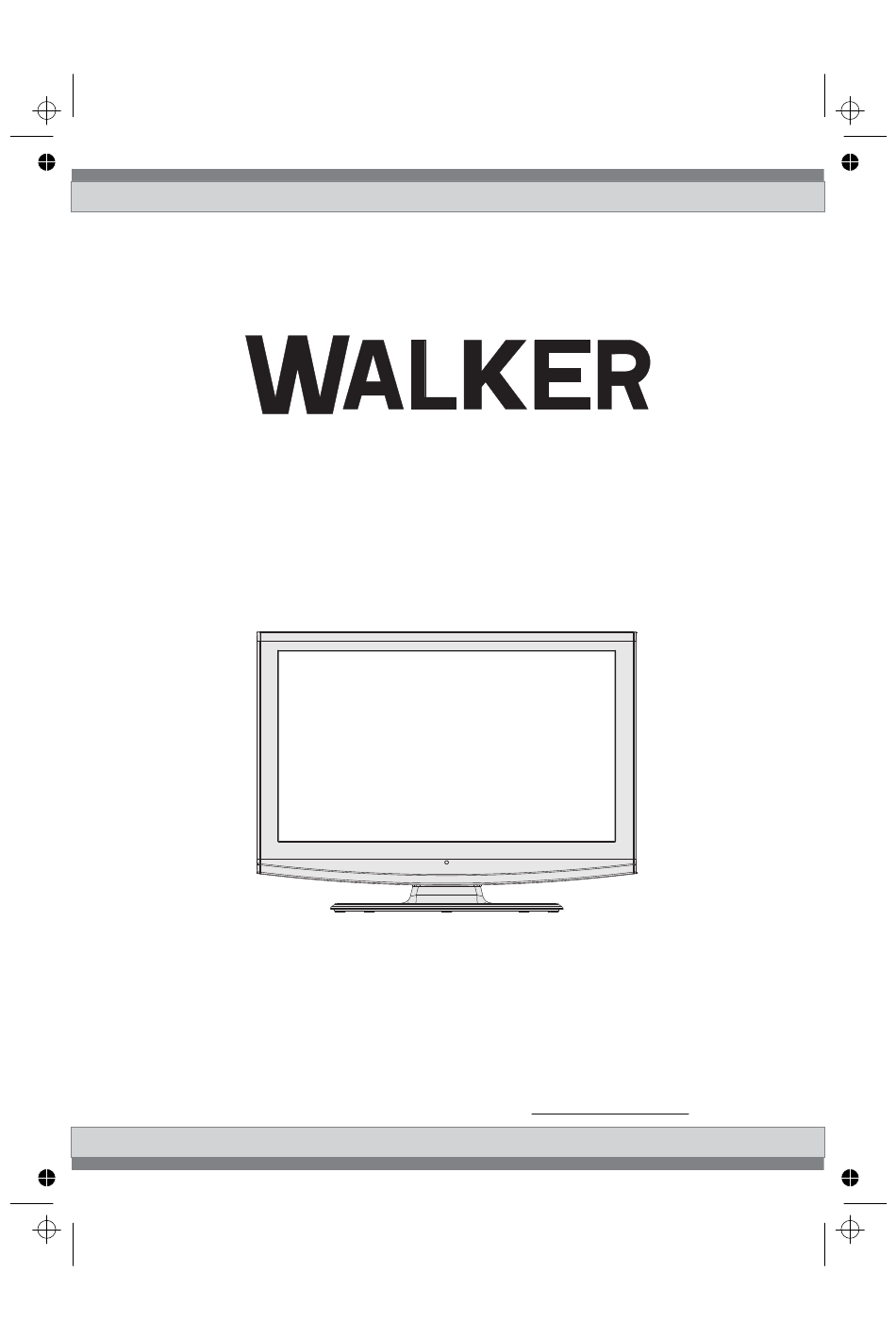

- Page 1 OPERATING INSTRUCTIONS WP2611LCD COLOUR TELEVISION WITH REMOTE CONTROL BE WALKER WISE...logon to www.walker.ie...
-
Page 2: Table Of Contents
Contents Features ..............2 Managing Stations: Sorting Channel List ..... 16 Introduction ............. 2 On-Screen Information ......... 16 Preparation ............. 2 Media Playback Using Media Browser ....16 Safety Precautions ..........3 Viewing Videos via USB ........16 Viewing Photos via USB ........17 Package Contents .......... -
Page 3: Features
Introduction Features • Remote controlled colour LCD TV. Please read the corresponding instructions of this handbook prior to the first usage of the device, even • Fully integrated Terrestrial digital TV (DVB-T - when the usage of electronic devices is familiar MPEG2) (DVB-T- MPEG4). -
Page 4: Safety Precautions
Safety Precautions Lightning In case of storm and lightning or when Read the following recommended safety going on holiday, disconnect the power precautions carefully for your safety. cord from the wall outlet. Power Source Replacement Parts The TV set should be operated only from a 220-240 When replacement parts are required, make sure that V AC, 50 Hz outlet. -
Page 5: Package Contents
LCD Screen Licence Notification (Optional) M a n u f a c t u r e d u n d e r l i c e n s e f r o m D o l b y The LCD panel is a very high technology product with Laboratories. -
Page 6: Environmental Information
Environmental Information • This television is designed to consume less energy to save environment. You not only help to save the environment but also you can save money by reducing electricity bills thanks to the energy efficiency feauture of this TV. To reduce energy consumption, you should take the following steps: •... -
Page 7: Remote Control Buttons
Remote Control Buttons Standby Mono/Stereo - Dual I-II / Currrent Language (*) (in DVB channels) Image size / Zooms videos (in Media Browser video mode) Green buttonList Schedule(in EPG)/Tag/Untag All(in favourite list)/Play-Slideshow(in Media Browser) Red button/Stop(in Media Browser) Numeric buttons Teletext / Mix(in TXT mode) Cursor Left Menu on-off... -
Page 8: Lcd Tv And Operating Buttons
LCD TV and Operating Buttons FRONT and REAR VIEW Control buttons VIEW Control Buttons 1. Standby/On button 2. TV/AV button 3. Programme Up/Down buttons 4. Volume Up/Down buttons Note: Press “ ” and buttons at the same time to view main menu. -
Page 9: Viewing The Connections - Side Connectors
PC/YPbPr Audio Inputs are used for connecting audio signals of a PC or a device that connects to the TV via YPbPr. Connect the PC audio cable between the AUDIO INPUTS on the TV and audio output of your PC to enable PC audio. Connect the audio cable between AUDIO INPUTS on the TV and audio outputs of your device to enable component audio. -
Page 10: Using Digital Multimedia Connectors
Connecting the LCD TV to a PC Using Digital Multimedia Connectors For displaying your computer’s screen image on your LCD TV, you can connect your computer to the TV set. • You can connect USB devices to your TV by using Power off both computer and display before making the USB inputs of the TV. -
Page 11: Connecting To A Dvd Player
Connecting to a DVD Player Using Side AV Connectors If you want to connect a DVD player to your LCD You can connect a range of optional equipment to TV, you can use connectors of the TV set. DVD your LCD TV.. players may have different connectors. -
Page 12: Switching The Tv On/Off
Analogue Teletext Switching the TV On/Off Use of teletext and its functions are identical to To Switch the TV On the analogue text system. Please do refer to the Connect the power cord to the 220-240V AC 50 Hz. “TELETEXT” explanations. Input Selection •... -
Page 13: Volume Setting
Volume Setting • Press “ V+” button to increase the volume. Press “V-” button to decrease the volume. A volume level scale (slider) will be displayed on the screen. Programme Selection (Previous or Next Programme) • Press “ P -” button to select the previous programme. •... -
Page 14: First Time Installation
SUBTTL: Press SUBTITLE button to view Select • Press OK button on the remote control to continue Genre menu. Using this feature, you can search the and the following message will be displayed on the programme guide database in accordance with the screen: genre. -
Page 15: Auto Tuning
Digital Manual Search Auto Tuning HINT: Auto tuning feature will help you to retune the TV set in order to store new services or stations. Press MENU button on the remote control and select Installation by using “ ” or “ ” button. Press OK button and the following menu screen will be displayed. -
Page 16: Operating The Channel List
• Pressing “ ” or “ ” button moves to the previous/ next character. Pressing “ ” or “ ” button toggles the current character, i.e., ‘b’ character becomes ‘a’ by “ ” and ‘c’ by “ ”. Pressing the numeric buttons ‘0...9’... -
Page 17: Managing Stations: Sorting Channel List
• GREEN : Tag/untag all channels. To display Media Browser window, press either “MENU” button on the remote control and then select • BLUE : Displays filtering options. Media Browser by pressing “ ” or “ ” button. Press Managing Stations: Sorting OK button to continue. -
Page 18: Viewing Photos Via Usb
Slideshow Options Play (RED button): Starts the video playback. Pause (YELLOW button) : Pauses the slideshow. Stop (BLUE button): Stops the video playback. Continue (GREEN button) : Continues the slideshow. Pause (OK button): Pause the video playback. Previous/Next (Left/Right buttons): Jumps to Rewind ( button): Goes backward. -
Page 19: Media Browser Settings
Media Browser Settings • For 16:9 aspect ratio pictures that have been squeezed into a normal picture (4:3 aspect ratio), use the 16:9 mode to restore the picture to its original shape. Subtitle This zooms up the wide picture (16:9 aspect ratio) with subtitles to the full screen. -
Page 20: Configuring Picture Settings
Cinema Setting Warm option gives white colours a slight red stress. This zooms up the wide picture (16:9 aspect ratio) to Noise Reduction: If the broadcast signal is weak the full screen. and the picture is noisy, use Noise Reduction setting to reduce the noise amount. -
Page 21: Configuring Sound Settings
Phase: Depending on the resolution and scan Balance: This setting is used for emphasizing left or frequency that you input to the TV set, you may see right speaker balance. a hazy or noisy picture on the screen. In such a case Headphone: Sets headphone volume. -
Page 22: Using A Conditional Access Module
Other Settings: Displays other setting options of the TV set. Using a Conditional Access Module IMPORTANT: Insert or remove the CI module only when the TV is SWITCHED OFF. • In order to watch certain digital channels, a conditional access module (CAM) can be necessary. This module must be inserted in the CI slot of your •... -
Page 23: Parental Settings Menu Operation (*)
To display parental lock menu options, PIN number Timers should be entered. Factory default PIN number is To view Timers menu, press MENU button and select 0000. After coding the correct PIN number, parental Settings icon by using “ ” or “ ” button. Press OK settings menu will be displayed: button to view Settings menu. -
Page 24: Configuring Date/Time Settings
• Press“ ” or “ ” buttons to select a source. Configuring Date/Time Settings • Use “ ” or “ ” button to enable or disable the Select Date/Time in the Settings menu to configure selected source. Changes are automatically Date/Time settings. -
Page 25: Other Features
Other Features Displaying TV Information: Programme Number, Programme Name, Sound Indicator, time, teletext, channel type and resolution information is displayed on the screen when a new programme is entered or “INFO/ ” button is pressed. You can enable or disable automatic upgrade by Mute Function: Press “... -
Page 26: Teletext
Teletext Tips Teletext system transmits information such as news, Screen Care: Clean the screen with a slightly damp, sports and weather on your TV. Note that is the signal soft cloth. Do not use abrasive solvents as they may degrades, for example in poor/adverse weather damage the coating layer of the TV screen. -
Page 27: Appendix A: Pc Input Typical Display Modes
Appendix A: PC Input Typical Appendix B: AV and HDMI Signal Display Modes Compatibility (Input Signal Types) The display has a maximum resolution of 1360 x 768. Source Supported Signals Available The following table is an illustration of some of the typical video display modes. -
Page 28: Appendix C: Supported Dvi Resolutions
Appendix C: Supported DVI Resolutions When connecting devices to your TV’s connectors by using DVI converter cables (not supplied), you can refer to the following resolution information. 24Hz 25Hz 30Hz 50Hz 60Hz 480i þ 480p þ 576i þ 576p þ 720p þ... -
Page 29: Appendix E: Software Upgrade
Appendix E: Software Upgrade • Your TV is capable of finding and updating new software upgrades over broadcast channels. • For broadcast channels search, TV looks the available channels stored in your settings. So before software upgrade search, it is advised to auto search and update all available channels. 1) Software upgrade search via user interface •... -
Page 30: Specifications
Digital Reception (DVB-T) Specifications TV BROADCASTING Transmission Standards: PAL/SECAM B/G D/K K’ I/I’ L/L’ DVB-T, MPEG2,DVB-T, MPEG4 HD RECEIVING CHANNELS i. DEMODULATION VHF (BAND I/III) • -Symbol rate: COFDM with 2K/8K FFT mode. UHF (BAND U) • -Modulation: 16-QAM - 64-QAM FEC for all DVB modes (automatically found) HYPERBAND •... -
Page 31: Important Instruction
Important Instruction For your own safety read following instruction carefully before attempting to connect this unit to the mains supply. MAINS (AC) OPERATION The wires in the mains lead are coloured in accordance with the following code : GREEN & FUSE YELLOW (Earth)
