VR60 GLASS FROSTERS
INSTALLATION AND OPERATING MANUAL
PLEASE LEAVE WITH OPERATOR
VR60 Glass Froster
Series 4
Imperial Machine Company Limited
Unit 1, Abbey Road
Wrexham Industrial Estate
Wrexham LL13 9RF
Tel: +44 (0)1978 661155
Fax: +44 (0)1978 729990
Service Fax: +44 (0)1978 667766
Spares Fax: +44 (0)1978 667759
E-mail: info@imco.co.uk
Website: www.imco.co.uk
A34/055 R5
ECN 8917 January 2020
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for IMC 4 Series
Summary of Contents for IMC 4 Series
- Page 1 VR60 GLASS FROSTERS INSTALLATION AND OPERATING MANUAL PLEASE LEAVE WITH OPERATOR VR60 Glass Froster Series 4 Imperial Machine Company Limited Unit 1, Abbey Road Wrexham Industrial Estate Wrexham LL13 9RF Tel: +44 (0)1978 661155 Fax: +44 (0)1978 729990 Service Fax: +44 (0)1978 667766 Spares Fax: +44 (0)1978 667759 E-mail: info@imco.co.uk Website: www.imco.co.uk...
- Page 2 VR60 – GLASS FROSTER EC DECLARATION OF CONFORMITY (Guarantee of Production Quality) We, Imperial Machine Company Limited of: Unit 1, Abbey Road, Wrexham Industrial Estate, Wrexham, LL13 9RF Declare under our sole responsibility that the following products VR60 as described in the attached technical documentation, are in conformity with the protection requirements of the Electromagnetic Compatibility Directive 2014/30/EU and manufactured in accordance with harmonised standards EN 61000-6-1: 2001 Immunity and EN 61000-6-3: 2007 Emissions (plus product specific standards).
-
Page 3: Table Of Contents
VR60 – GLASS FROSTER INDEX INDEX ........................3 WARRANTY ......................4 DELIVERY ......................4 SAMPLE RATING LABEL ..................5 INTRODUCTION ....................5 INSTALLATION ....................7 CHANGING AN LED LIGHT FITTING ..............8 CHANGING OPTION DOOR HANDLES .............. 9 ELECTRICITY SUPPLY CONNECTION............. 10 COMMISSIONING .................... -
Page 4: Warranty
VR60 – GLASS FROSTER WARRANTY These Glass Froster’s are guaranteed by IMC for 2 years from the date of purchase from IMC, or from one of its stockists, dealers or distributors. The guarantee is limited to the replacement of faulty parts or products and excludes any consequential loss or expense incurred by the purchaser. -
Page 5: Sample Rating Label

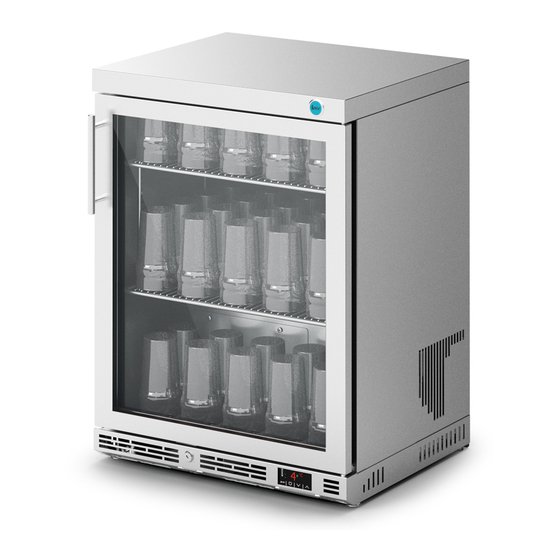

VR60 – GLASS FROSTER SAMPLE RATING LABEL INTRODUCTION The VR60 range is a back-bar or under-bar glass froster designed for the frosting and storage of glasses. The following quantity of standard pint glasses can be held in each unit: Glass Froster Capacity (Standard Pint Size Glass) VR60 (900h x 600w x 500d) - Page 6 VR60 – GLASS FROSTER VR60 Dimensions: MODEL VR60 900mm VR60 800mm X mm 600mm Y mm VR60...
-
Page 7: Installation
INSTALLATION For the Installer These Instructions contain important information designed to help the user obtain the maximum benefit from their investment in an IMC VR60 Glass Froster. Please read them carefully before starting work, and consult with the supplier in the event of any queries. -
Page 8: Changing An Led Light Fitting
VR60 – GLASS FROSTER CHANGING AN LED LIGHT FITTING The cabinet interior is illuminated by a LED light strip fitting located at the front of the top inner panel. To change the light assembly: · Ensure the mains power to the unit has been turned off. ·... -
Page 9: Changing Option Door Handles
· Place new / same handle in desired position (see orientations below) · Fix the handle back to the door with the same / supplied screws · New / additional handles are available from IMC... -
Page 10: Electricity Supply Connection
VR60 – GLASS FROSTER ELECTRICITY SUPPLY CONNECTION Position the unit in the chosen site. The electricity supply connection should be made to a power outlet socket or isolator mounted on the wall close to the machine. This socket or isolator must be accessible once the machine is installed. -
Page 11: Changing The Controller Set Point
VR60 – GLASS FROSTER CHANGING THE CONTROLLER SET POINT The electronic temperature controller is factory set to -10°C and will cycle the air temperature between -8°C and -12°C. The set point can be adjusted between - -10°C and -15°C by following the button sequence below: Press SET the current SET Point will be displayed, if Loc is displayed then the controller is locked, to unlock press and hold the SET button for 3 seconds,... -
Page 12: Eco Button Function
VR60 – GLASS FROSTER ECO BUTTON FUNCTION This button (located in the right hand corner of the worktop) provides an energy saving when depressed i.e. blue logo is not illuminated. This button switches off the internal light and raises the cabinet’s current “set” point by 6°C ( e.g. -
Page 13: Cleaning
· Hook the shelf supports in the required location. · Ensure all shelf supports are at the same height for a level shelf. The support strips are numbered to aid positioning. · Replace the shelf. Extra shelves are available from IMC. -
Page 14: Maintenance
VR60 – GLASS FROSTER MAINTENANCE Warning Never service, repair or troubleshoot a unit unless you are a professional air conditioning / refrigeration service person. Improper servicing can lead to serious injury or death from fire, electric shock or explosion. Remove the service panel and insulation block inside the cabinet after switching the unit off from the mains supply. -
Page 15: Do's And Don'ts
VR60 – GLASS FROSTER Other than regular cleaning the unit requires no maintenance by the end user. It is recommended that the unit is serviced by an IMC approved engineer at least once a year. Details of IMC Service Contracts are available on application. -
Page 16: Ordering Spare Parts
SERIES AND SERIAL NUMBER of the machine. This is to be found inside the cabinet. For installations outside the UK please contact your supplier. For information on IMC spares and service support (if applicable), please call IMC on +44 (0)1978 661155. Alternatively, contact us via email or fax: IMC Service Desk Fax: +44 (0)1978 667766 E-mail: service@imco.co.uk... -
Page 17: Wiring Diagram
VR60 – GLASS FROSTER WIRING DIAGRAM... -
Page 18: Spares List Drawing 1
VR60 – GLASS FROSTER SPARES LIST DRAWING 1 Evaporator ECO Button Door Gasket Pilaster Strip Shelf Glider Shelf Clip Foot Door Lock Electronic Controller... -
Page 19: Spares List Drawing 2
VR60 – GLASS FROSTER SPARES LIST DRAWING 2 Plastic Drip Tray Mains Cable Compressor (Fridge Pack) -
Page 20: Spares List
VR60 – GLASS FROSTER SPARES LIST VR60 Glass Froster – Series 4 Part No Description A11/278 Door Gasket (900) A11/284 Door Gasket (800) A12/073 Pilaster Strip A12/091 Z1 Shelf A12/082 Wine Shelf S76/025 Perforated Shelf VR60 A12/094 Shelf Clip (4 per shelf) A19/027 Glider Foot A21/011... -
Page 21: Notes
VR60 – GLASS FROSTER NOTES... - Page 22 VR60 – GLASS FROSTER...
