MISTRAL M60, M90, M135 AND TC60
INSTALLATION, OPERATING & MAINTENANCE MANUAL
PLEASE LEAVE WITH OPERATOR
MISTRAL M60, M90, & M135 – SERIES 11
M90 SLIDING DOOR – SERIES 11
M60HA & M90HA – SERIES 1
MISTRAL TC60 – SERIES 11
Imperial Machine Company Limited
Unit 1, Abbey Road
Wrexham Industrial Estate
Wrexham LL13 9RF
Tel: +44 (0)1978 661155
Fax: +44 (0)1978 729990
Spares Fax: +44 (0)1978 667759
E-mail: service@imco.co.uk
E-mail: sales@imco.co.uk
Website: www.imco.co.uk
A34/002 R19
ECN 8481 APRIL 2016
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for IMC MISTRAL M60
Summary of Contents for IMC MISTRAL M60
- Page 1 MISTRAL M60, M90, M135 AND TC60 INSTALLATION, OPERATING & MAINTENANCE MANUAL PLEASE LEAVE WITH OPERATOR MISTRAL M60, M90, & M135 – SERIES 11 M90 SLIDING DOOR – SERIES 11 M60HA & M90HA – SERIES 1 MISTRAL TC60 – SERIES 11...
- Page 2 We, Imperial Machine Company Limited of: Unit 1, Abbey Road, Wrexham Industrial Estate, Wrexham, LL13 9RF Declare under our sole responsibility that the machines MISTRAL M60, M90 & M135 SERIES 11 MISTRAL M90SD SERIES 11 MISTRAL M60HA & M90HA SERIES 1...
-
Page 3: Table Of Contents
INDEX GUARANTEE ......................1 DELIVERY ......................1 SAMPLE RATING LABEL ..................2 INTRODUCTION ....................3 MISTRAL DIMENSIONS ..................4 INSTALLATION ....................5 REVERSING DIRECTION OF DOOR (TC60) ............6 M90 SLIDING DOOR REMOVAL & TROUBLE SHOOTING ....... 9 ELECTRICITY SUPPLY CONNECTION............. 10 COMMISSIONING .................... -
Page 5: Guarantee
MISTRAL M60, M90, M135 AND TC60 GUARANTEE The Mistral M60, M90, M135 & TC60 units are guaranteed by IMC for 2 years from the date of their purchase from IMC, or from one of its stockists, dealers or distributors. The guarantee is limited to the replacement of faulty parts or products and excludes any consequential loss or expense incurred by purchaser. -
Page 6: Sample Rating Label
MISTRAL M60, M90, M135 AND TC60 Check that the correct machine has been supplied and that the voltage, marked on the rating plate, is suitable for the supply available. The rating plate is located on the right hand side of the case. -
Page 7: Introduction

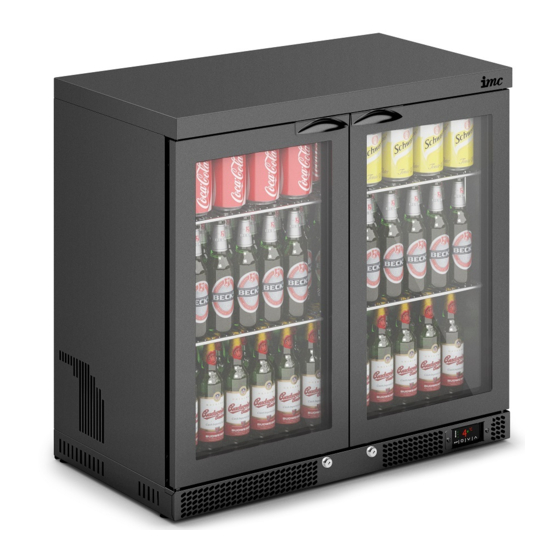

MISTRAL M60, M90, M135 AND TC60 INTRODUCTION The Mistral M60, M90 and M135 are backbar or underbar refrigerators designed for the cooling and storage of beverages. The Mistral TC60 is a full height backbar refrigerator. The following quantity of beverage bottles can be held in each unit:... -
Page 8: Mistral Dimensions
MISTRAL M60, M90, M135 AND TC60 MISTRAL DIMENSIONS TC60 M135 M90 SD... -
Page 9: Installation
TC60 87 kg Install the unit on a flat and level floor. The Mistral M60 and M90 require 20mm clearance for air circulation at the back and sides. The units are fitted with glider feet which allow them to slide forward for cleaning and maintenance purposes. -
Page 10: Reversing Direction Of Door (Tc60)
MISTRAL M60, M90, M135 AND TC60 REVERSING DIRECTION OF DOOR (TC60) On delivery the door of the Mistral TC60 is hinged on the right hand side of the cabinet. However, it is possible to move the hinge to the other side of the cabinet by following the steps below. - Page 11 MISTRAL M60, M90, M135 AND TC60 NYLON BUSH · Unscrew the fixings retaining the door handle and the hinge pin. · Remove the door handle. · Refit the door handle on the right hand side of the door and screw in the handle fasteners.
- Page 12 MISTRAL M60, M90, M135 AND TC60 HINGE PIN HANDLE FASTENERS NYLON BUSH · Refit the door making sure the hinge pin is inserted into the nylon bush which is in the worktop. · Refit the hinge and screw in the fasteners making sure the triangular spacer is clamped between the hinge and the cabinet.
-
Page 13: M90 Sliding Door Removal & Trouble Shooting
MISTRAL M60, M90, M135 AND TC60 M90 SLIDING DOOR REMOVAL & TROUBLE SHOOTING Cable Hook Un-hook the cable from the hook in the top of the door, the door can now be fully removed from the unit To remove the door lift the... -
Page 14: Electricity Supply Connection
The compressor will start running =<15 seconds after the supply is switched on. Check that the light is working. The light switch on the Mistral M60, M90, M90SD and M135 is located on the left hand side of the light fitting. The light switch on the Mistral TC60 is located inside the cabinet on the right hand end of the inner upper back panel. -
Page 15: Using Your Bottle Cooler
MISTRAL M60, M90, M135 AND TC60 The set point can be adjusted between 0°C and 10°C for standard units and 4°C and 18°C for High Ambient versions by following the button sequence below: Press the SET button once “SET” will appear... -
Page 16: Cleaning
MISTRAL M60, M90, M135 AND TC60 CLEANING Clean doors and surfaces as required, occasionally remove all merchandise and clean interior surfaces, with a clean damp cloth. DO NOT USE CLEANING MATERIALS CONTAINING ABRASIVES OR BLEACHES. In the case of heavy soiling use a mild liquid detergent. The unit can be washed on the inside using bicarbonate of soda to remove stale smells. -
Page 17: Changing The Light Bulb And Starter Tc60
MISTRAL M60, M90, M135 AND TC60 CHANGING THE LIGHT BULB AND STARTER TC60 For the Mistral TC60 the cabinet interior is illuminated by a fluorescent tube located at the front of the right-hand inner side panel. The starter for the tube is located at the top of the light cover. -
Page 18: Changing A Fluorescent Strip Light Fitting M60, M90, M90Sd & M135
MISTRAL M60, M90, M135 AND TC60 CHANGING A FLUORESCENT STRIP LIGHT FITTING M60, M90, M90SD & M135 The M60, M90, M90SD & M135 cabinet interior is illuminated by a fluorescent fitting located at the front of the top inner panel. The switch is located at the left- hand end of the strip light fitting. -
Page 19: Maintenance
SERVICE PANEL Other than regular cleaning the unit requires no maintenance by the end user. It is recommended that the unit is serviced by an IMC approved engineer at least once a year. Details of IMC Service Contracts are available on application. -
Page 20: Do's And Don'ts
MISTRAL M60, M90, M135 AND TC60 DO’S AND DON’TS Install on a level surface. Ensure plug is accessible with the unit installed. Regularly clean the condenser and compressor. Rotate stock of bottles. Don’t Sit or stand on the unit worktop. -
Page 21: Ordering Spare Parts
For installations outside the UK please contact your supplier. For information on IMC spares and service support (if applicable), please call IMC on +44 (0)1978 661155. Alternatively, contact us via email: IMC Service Desk E-mail: service@imco.co.uk... -
Page 22: M60 Wiring Diagram
MISTRAL M60, M90, M135 AND TC60 M60 WIRING DIAGRAM... -
Page 23: M90 & M90Sd Wiring Diagram
MISTRAL M60, M90, M135 AND TC60 M90 & M90SD WIRING DIAGRAM... -
Page 24: M60 High Ambient Wiring Diagram
MISTRAL M60, M90, M135 AND TC60 M60 HIGH AMBIENT WIRING DIAGRAM... -
Page 25: M90 High Ambient Wiring Diagram
MISTRAL M60, M90, M135 AND TC60 M90 HIGH AMBIENT WIRING DIAGRAM... -
Page 26: M135 Wiring Diagram
MISTRAL M60, M90, M135 AND TC60 M135 WIRING DIAGRAM... -
Page 27: Tc60 Wiring Diagram
MISTRAL M60, M90, M135 AND TC60 TC60 WIRING DIAGRAM... -
Page 28: Rear View Spares Guide
MISTRAL M60, M90, M135 AND TC60 REAR VIEW SPARES GUIDE Evaporator Condenser Condenser Compressor Drier Refrigeration Assembly Drip Tray... -
Page 29: Front View Spares Guide
MISTRAL M60, M90, M135 AND TC60 FRONT VIEW SPARES GUIDE Left Hand Door Right Hand Door Pilaster Strip Evaporator Door Gasket Lock Door Handle Service Panel Controller Glide foot Shelf... -
Page 30: Front View Spares Guide M90 Sliding Door
MISTRAL M60, M90, M135 AND TC60 FRONT VIEW SPARES GUIDE M90 SLIDING DOOR Shelf Evaporator Pilaster Strip Right Hand Door (Front) Door Glide Foot Left Hand Lock Door Runner Door (Rear) Guide Door Brush Strip Service Panel Controller... -
Page 31: Spare Parts List
MISTRAL M60, M90, M135 AND TC60 SPARE PARTS LIST Mistral M60 – Series 11 Mistral M90 – Series 11 Part No Description Part No Description A11/276 Door Gasket A11/275 Door Gasket A12/073 Pilaster Strip A12/073 Pilaster Strip A12/091 Z1 Shelf... -
Page 32: Spare Parts List Cont
MISTRAL M60, M90, M135 AND TC60 SPARE PARTS LIST CONT.. HIGH AMBIENT VERSIONS – M60HA & M90HA Mistral M60HA – Series 1 Mistral M90HA – Series 1 Part No Description Part No Description A11/276 Door Gasket A11/275 Door Gasket A12/073... -
Page 33: Spare Parts List Cont
MISTRAL M60, M90, M135 AND TC60 SPARE PARTS LIST CONT.. Mistral M135 – Series 11 Mistral M90SD – Series 11 Part No Description Part No Description A11/275 Door Gasket A12/174 Brush Strip A12/073 Pilaster Strip A12/073 Pilaster Strip A12/099 Shelf... -
Page 34: Spare Parts List Cont
MISTRAL M60, M90, M135 AND TC60 SPARE PARTS LIST CONT.. Mistral TC60 – Series 11 Part No Description A11/264 Door Gasket A12/055 Pilaster Strip A12/041 Z1 Shelf A12/082 Wine Shelf A12/036 Shelf Clip (4 per shelf) A21/011 Lock, clip & keys... -
Page 35: Imperial Machine Company Limited
MISTRAL M60, M90, M135 AND TC60 Imperial Machine Company Limited Unit 1, Abbey Road Wrexham Industrial Estate Wrexham LL13 9RF Tel: +44 (0)1978 661155 Fax: +44 (0)1978 729990 Spares Fax: +44 (0)1978 667759 E-mail: service@imco.co.uk E-mail: sales@imco.co.uk Website: www.imco.co.uk...
