FROSTAR FR60 AND FR90
INSTALLATION, OPERATING AND MAINTENANCE MANUAL
PLEASE LEAVE WITH OPERATOR
FROSTAR FR60 AND FR90 SERIES 5
Imperial Machine Company Limited
Unit 1, Abbey Road
Wrexham Industrial Estate
Wrexham LL13 9RF
Tel: +44 (0)1978 661155
Fax: +44 (0)1978 729990
Service Fax: +44 (0)1978 667766
Spares Fax: +44 (0)1978 667759
E-mail:
info@imco.co.uk
Website: www.imco.co.uk
A34/019 R4
ECN 8704 JANUARY 2018
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for IMC Frostar FR60
Summary of Contents for IMC Frostar FR60
- Page 1 FROSTAR FR60 AND FR90 INSTALLATION, OPERATING AND MAINTENANCE MANUAL PLEASE LEAVE WITH OPERATOR FROSTAR FR60 AND FR90 SERIES 5 Imperial Machine Company Limited Unit 1, Abbey Road Wrexham Industrial Estate Wrexham LL13 9RF Tel: +44 (0)1978 661155 Fax: +44 (0)1978 729990...
- Page 2 Unit 1, Abbey Road, Wrexham Industrial Estate, Wrexham, LL13 9RF Declare under our sole responsibility that the machine FROSTAR FR60 & FR90 – SERIES 5 As described in the technical construction file (TCF) documentation, are in conformity with the protection requirements of the Electromagnetic Compatibility Directive 2004/108/EC.
-
Page 3: Table Of Contents
FROSTAR FR60 and FR90 INDEX GUARANTEE ....................... 1 DELIVERY ......................1 INTRODUCTION ....................2 INSTALLATION....................4 PREPARATION ....................4 CHANGING THE CONTROLLER SET POINT............. 5 OPERATION......................6 MAKING THE BEST USE OF THE CABINETS ........... 6 MAINTENANCE ....................7 ORDERING SPARE PARTS ................7 FR60 &... -
Page 5: Guarantee
FROSTAR FR60 and FR90 GUARANTEE This equipment is guaranteed by IMC for 1 Year from the date of its purchase from IMC, or from one of its stockists, dealers or distributors. The guarantee is limited to the replacement of faulty parts or products and excludes any consequential loss or expense incurred by purchasers. -
Page 6: Introduction

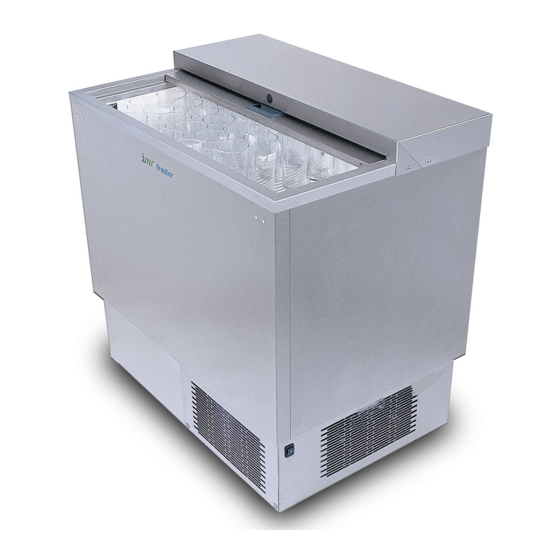

FROSTAR FR60 and FR90 INTRODUCTION The Frostar FR60 and FR90 are efficient, fast-cooling top loaders with sliding covers suitable for underbar use. The Frostar range is designed to produce a steady supply of chilled glasses. Frostar FR60 Dimensions REFRIGERATION CONTROLLER... - Page 7 FROSTAR FR60 and FR90 Frostar FR90 Dimensions REFRIGERATION CONTROLLER Internal Dimensions The internal dimensions of the FR90 are 550mm high, by 826mm wide by 500mm deep.
-
Page 8: Installation
FROSTAR FR60 and FR90 INSTALLATION For the Installer: These Instructions contain important information designed to help the user obtain the maximum benefit from the investment in a Frostar unit. Please read them carefully before starting work, and consult with the supplier in the event of any queries. -
Page 9: Changing The Controller Set Point
FROSTAR FR60 and FR90 CHANGING THE CONTROLLER SET POINT The electronic temperature controller is factory set to -18°C and will cycle the air temperature within ±2°C of this set point. The set point can be adjusted above and below the factory setting (min - 30°C, max +5°C) by following the button sequence... -
Page 10: Operation
FROSTAR FR60 and FR90 OPERATION 1. Plug in and switch on at the mains. 2. Switch the unit on using the On/Off, which is located at the front left-hand side of the plinth. 3. Check that the light is working. -
Page 11: Maintenance
6. Other than regular cleaning the Frostar range requires no maintenance by the end user. It is recommended that an IMC approved engineer services the unit at least once a year. For further advice or assistance, contact the supplier of your cabinet. -
Page 12: Fr60 & Fr90 Wiring Diagram
FROSTAR FR60 and FR90 FR60 & FR90 WIRING DIAGRAM (G99/049-007) -
Page 13: Parts List
FROSTAR FR60 and FR90 PARTS LIST Frostar FR60 Frostar FR90 Part No Description Part No Description A12/047 Wire Shelf (large) A12/047 Wire Shelf (large) A12/048 Wire Shelf (small) A12/048 Wire Shelf (small) D28/035 ¼ Turn Fastener D28/035 ¼ Turn Fastener &...
