MR60 GLASS FROSTERS
INSTALLATION AND OPERATING MANUAL
PLEASE LEAVE WITH OPERATOR

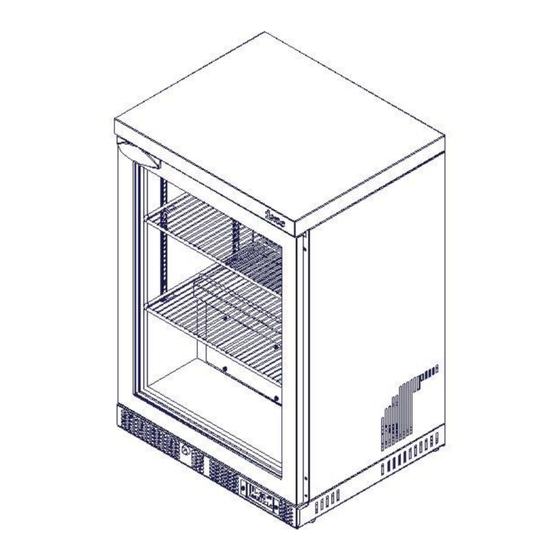

MR60 Glass Froster
Series 1
Imperial Machine Company Limited
Unit 1, Abbey Road
Wrexham Industrial Estate
Wrexham LL13 9RF
Tel: +44 (0)1978 661155
Fax: +44 (0)1978 729990
Service Fax: +44 (0)1978 667766
Spares Fax: +44 (0)1978 667759
E-mail: info@imco.co.uk
Website: www.imco.co.uk
A34/100 R1
ECN 8848 May 2019
Advertisement
Table of Contents
Related Manuals for IMC MR60
Summary of Contents for IMC MR60
- Page 1 MR60 GLASS FROSTERS INSTALLATION AND OPERATING MANUAL PLEASE LEAVE WITH OPERATOR MR60 Glass Froster Series 1 Imperial Machine Company Limited Unit 1, Abbey Road Wrexham Industrial Estate Wrexham LL13 9RF Tel: +44 (0)1978 661155 Fax: +44 (0)1978 729990 Service Fax: +44 (0)1978 667766 Spares Fax: +44 (0)1978 667759 E-mail: info@imco.co.uk...
- Page 2 MR60 – GLASS FROSTER EC DECLARATION OF CONFORMITY (Guarantee of Production Quality) We, Imperial Machine Company Limited of: Unit 1, Abbey Road, Wrexham Industrial Estate, Wrexham, LL13 9RF Declare under our sole responsibility that the following products MR60 as described in the attached technical documentation, are in conformity with the protection...
-
Page 3: Table Of Contents
MR60 – GLASS FROSTER INDEX INDEX ........................3 WARRANTY ......................4 DELIVERY ......................4 SAMPLE RATING LABEL ..................5 INTRODUCTION ....................5 INSTALLATION ....................7 TURNING LED LIGHTS ON-OFF ................. 8 CHANGING AN LED LIGHT FITTING ..............9 ELECTRICITY SUPPLY CONNECTION............. 10 COMMISSIONING .................... -
Page 4: Warranty
MR60 – GLASS FROSTER WARRANTY These Glass Froster’s are guaranteed by IMC for 2 years from the date of purchase from IMC, or from one of its stockists, dealers or distributors. The guarantee is limited to the replacement of faulty parts or products and excludes any consequential loss or expense incurred by the purchaser. -
Page 5: Sample Rating Label
MR60 – GLASS FROSTER SAMPLE RATING LABEL INTRODUCTION The MR60 range is a back-bar or under-bar glass froster designed for the frosting and storage of glasses. The following quantity of standard pint glasses can be held in each unit: Glass Froster... - Page 6 MR60 – GLASS FROSTER MR60 Dimensions: MODEL MR60 900mm MR60 800mm X mm 600mm Y mm MR60...
-
Page 7: Installation
INSTALLATION For the Installer These Instructions contain important information designed to help the user obtain the maximum benefit from their investment in an IMC VR60 Glass Froster. Please read them carefully before starting work, and consult with the supplier in the event of any queries. -
Page 8: Turning Led Lights On-Off
MR60 – GLASS FROSTER TURNING LED LIGHTS ON-OFF The cabinet is illuminated by a LED light unit, this light can be turned on or off by depressing the switch that is located on the underside of the worktop. To access this switch the door must be opened When the switch is flush the lights are on. -
Page 9: Changing An Led Light Fitting
MR60 – GLASS FROSTER CHANGING AN LED LIGHT FITTING The cabinet interior is illuminated by a LED light strip fitting located at the front of the top inner panel. To change the light assembly: · Ensure the mains power to the unit has been turned off. -
Page 10: Electricity Supply Connection
MR60 – GLASS FROSTER ELECTRICITY SUPPLY CONNECTION Position the unit in the chosen site. The electricity supply connection should be made to a power outlet socket or isolator mounted on the wall close to the machine. This socket or isolator must be accessible once the machine is installed. -
Page 11: Changing The Controller Set Point
MR60 – GLASS FROSTER CHANGING THE CONTROLLER SET POINT The electronic temperature controller is factory set to -10°C and will cycle the air temperature between -8°C and -12°C. The set point can be adjusted between - -10°C and -15°C by following the button sequence below:... -
Page 12: Cleaning
In the case of heavy soiling use a mild liquid detergent. The unit can be washed on the inside using bicarbonate of soda to remove stale smells. CHANGING SHELF POSITION The shelves in all MR60 Glass Froster units are fully adjustable. To adjust the shelves: · Remove the shelf. -
Page 13: Maintenance
MR60 – GLASS FROSTER MAINTENANCE Warning Never service, repair or troubleshoot a unit unless you are a professional air conditioning / refrigeration service person. Improper servicing can lead to serious injury or death from fire, electric shock or explosion. Remove the service panel and insulation block inside the cabinet after switching the unit off from the mains supply. -
Page 14: Do's And Don'ts
MR60 – GLASS FROSTER Other than regular cleaning the unit requires no maintenance by the end user. It is recommended that the unit is serviced by an IMC approved engineer at least once a year. Details of IMC Service Contracts are available on application. -
Page 15: Ordering Spare Parts
The unit must be sent to a specialist recovery, recycling and disposal site that is licensed for the disposal of refrigerated equipment. Please note that the insulation in the MR60 range does not contain any ozone depleting substances. The refrigerant used in the MR60 is R404a. -
Page 16: Wiring Diagram
MR60 – GLASS FROSTER WIRING DIAGRAM... -
Page 17: Spares List Drawing 1
MR60 – GLASS FROSTER SPARES LIST DRAWING 1 Evaporator Pilaster Shelf Clip Strip Door Shelf Glider Foot Controller Door Gasket Lock... -
Page 18: Spares List Drawing 2
MR60 – GLASS FROSTER SPARES LIST DRAWING 2 Plastic Drip Tray Mains Cable Compressor (Fridge Pack) -
Page 19: Spares List
MR60 – GLASS FROSTER SPARES LIST MR60 Glass Froster – Series 1 Part No Description A11/278 Door Gasket (900) A11/284 Door Gasket (800) A12/073 Pilaster Strip A12/091 Z1 Shelf A12/082 Wine Shelf S76/025 Perforated Shelf VR60 A12/094 Shelf Clip (4 per shelf) -
Page 20: Notes
MR60 – GLASS FROSTER NOTES... - Page 21 MR60 – GLASS FROSTER...
