Summary of Contents for Mini Gadgets OmniPlant

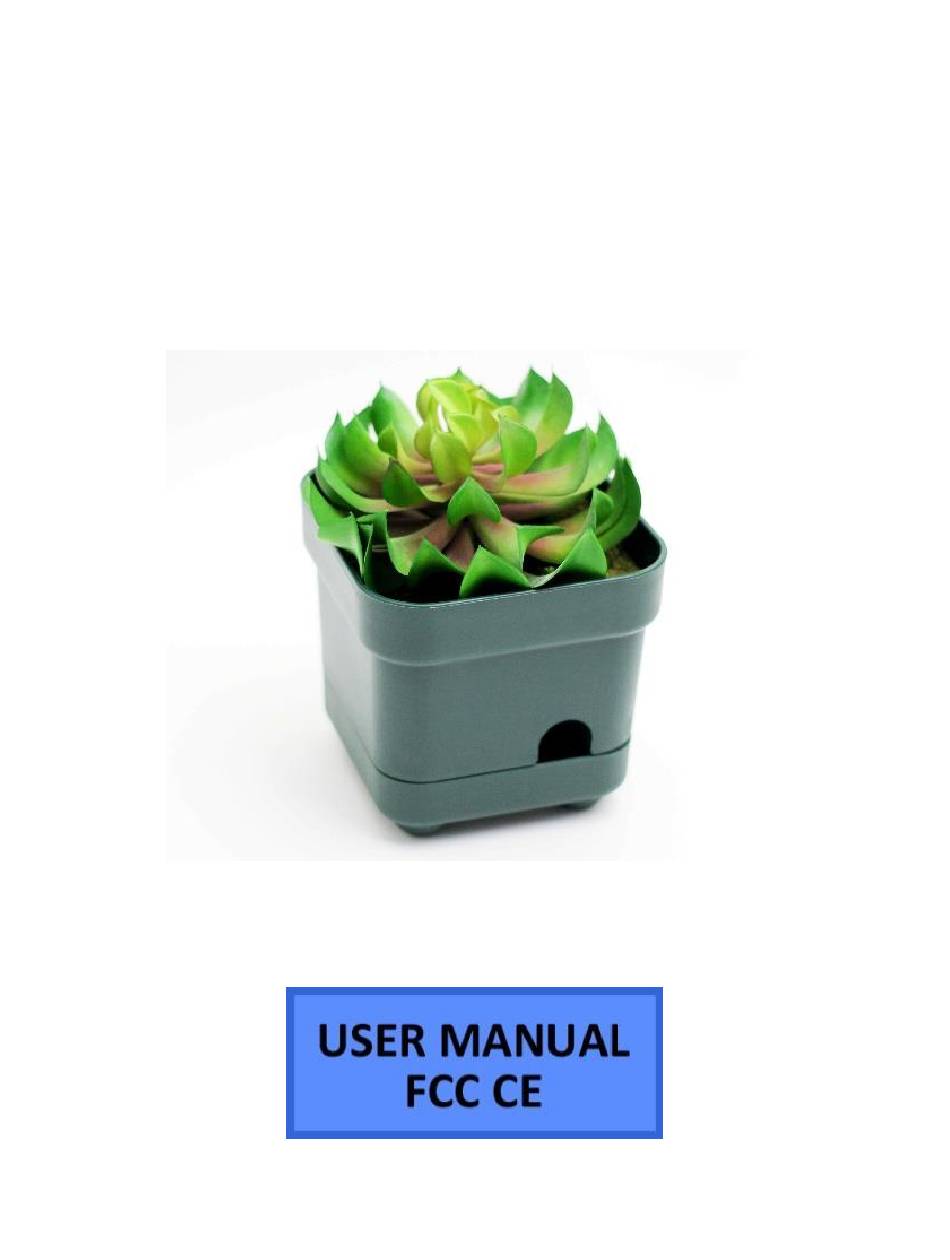

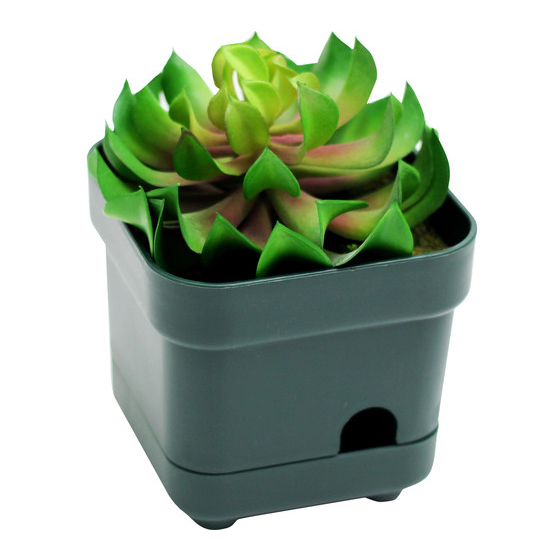

- Page 1 OmniEye Plant With Hidden Camera SKU: OmniPlant Version 1.0...
- Page 2 THANK YOU FOR PURCHASING THE OMNIPLANT HIDDEN CAMERA Please read this manual before operating the camera and keep it handy. Your purchase should include: 1 x OmniPlant 1 x AC Wall Charger 1 x Manual 1 x A/V Cable ...
- Page 3 GET FAMILIAR WITH YOUR OMNIPLANT HIDDEN CAMERA Version 1.0...
- Page 4 Version 1.0...
- Page 5 HOW TO CHARGE THE CAMERA Note: If you are not located in the US, or if you intend to use this product anywhere other than the US, you will need to purchase a converter in order to use the AC wall plug in and avoid damaging the product.
-
Page 6: Operating The Camera
charging port, and the device will immediately turn on and enter motion detection mode. OPERATING THE CAMERA HOW TO TURN ON THE CAMERA Note: When using the camera, point the remote at the top of the plant. This is the best location for signal. 1. - Page 7 2. To put the device into standby mode, stop motion recording by pressing the motion detection button (see page 4) one time. The Green light will come on and the device will be in standby mode. HOW TO RECORD VIDEO 1.
- Page 8 1. When the camera is in Standby Mode, press the “Photo Button” (see page 4). The green light will turn red while the photo is being taken. 2. Once the photo is taken, the light will turn back to green and once again be in standby mode. HOW TO RECORD MOTION DETECTION 1.
- Page 9 red light 2 times, then the light will turn off confirming that the device detected your motion and is now recording video. HOW TO STOP RECORDING MOTION DETECTION 1. While the camera is recording motion detection, press the “Motion Detection” button once more.
- Page 10 CHANGING YOUR DEVICE SETTINGS (INCLUDING THE DATE/TIME STAMP) Your OmniPlant comes with an A/V cable that is used to connect the device to a monitor/TV so that you can adjust various settings. See page 3 to locate the AV port on your device.
- Page 11 5. A menu will display on the screen with various options (Use OK, UP, Down, and Menu on the remote to navigate the menu system): a. Resolution – Select from different resolutions. b. Time Stamp – Use this option to enable or disable the date/time stamp on videos.
- Page 12 f. Motion Detection – Adjust motion detection sensitivity here. g. Setup – Enter this menu for additional settings. h. Setup -> Format – Use this to format your MicroSD card. All data on the disk will be permanently erased. i. Setup -> Language – Choose your language.
-
Page 13: Microsd Card Slot
n. Setup -> Time Input – Set the current time in military format. o. Setup -> System Reset – Use this to factory reset the device. p. Setup -> FW Upgrade – This is not active on this device. q. Setup -> FW Version – Displays the firmware version of the device. - Page 14 2. To remove the SD card, gently push the card in so that it clicks. The internal spring tension will eject the card. MicroSD cards 65GB and above will require special formatting to work. The device will not function with these cards if they are not properly formatted beforehand.
- Page 15 2. Locate “Removable Disk” inside the (My) Computer folder. AutoPlay Removable Disk > Open folder to view files Or… Go to Start > Computer > Removable Disk Version 1.0...
- Page 16 3. Open the Removable Disk drive. 4. Open the DCIM folder. 5. Double click the file you want to view. VLC Player is recommended for watching videos. If you are having video playback issues, such as a completely black video recording or “squiggly lines”, we recommend you use VLC media player to play back the videos.
- Page 17 To save a file, you want to select the file, right click your mouse on the file name, and then choose “Copy” from the menu. Next, go the location you want the save the file to. Right click your mouse, and then chose “Paste.”...
-
Page 18: Troubleshooting
TROUBLESHOOTING THE DEVICE WON’T TURN ON Make sure the battery is charged. Make sure the device is plugged in (if using AC power). THE DEVICE HAS CRASHED Press the reset button one time while the device is on (see page 3). DEVICE CONTINUALLY RECORDS IN MOTION MODE ... -
Page 19: Other Problems
conditions can set off motion detection. Try adjusting the motion detection sensitivity via the setup menu. OTHER PROBLEMS Call our technical support at 770–694–6923 Version 1.0... -
Page 20: Specifications
SPECIFICATIONS Video 1920x1080 Resolution Video Format .MP4 Frames per 30 FPS Second Vision Angle 65° Battery Life 10 Hours Continuous Recording Up to 30 Days PIR Mode (if applicable) AC/Plug-In Power Motion 8 meters for straight-line Detection distance Photo 2560x1920 Resolution Photo Format .JPG... - Page 21 Product Manuals -> 64GB SD Card Formatting.zip Recording Usage 10mins per 1GB USB Interface 2.0 USB Player Software VLC recommended Video H.264 Compression Version 1.0...
- Page 22 Version 1.0...
- Page 23 Version 1.0...
- Page 24 Version 1.0...
- Page 25 ☐ Wall AC Adapter ☐ 3.5mm to USB Cable ☐ MicroUSB Cable ☐ Charging Adapter with Indicator Lights ☐ A/V Cable ☐ Manual ☐ MicroSD Card Reader ☐ MicroSD Card ___ GB ☐ OmniPlant QC Tech:____________________________________ Date: ______________________________ Version 1.0...
