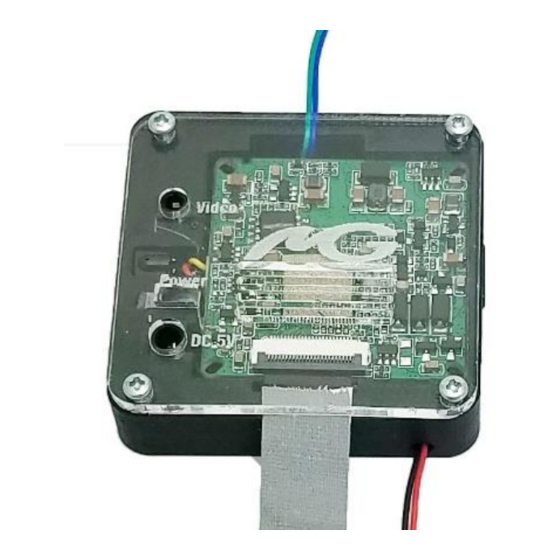

Do-It-Yourself 1080P
Camera Kit
SKU: DIY1080P
1
Version 1.3

Advertisement

loading
Need help?

Need help?

Do you have a question about the DIY1080P and is the answer not in the manual?

Questions and answers

Related Manuals for Mini Gadgets DIY1080P

Summary of Contents for Mini Gadgets DIY1080P

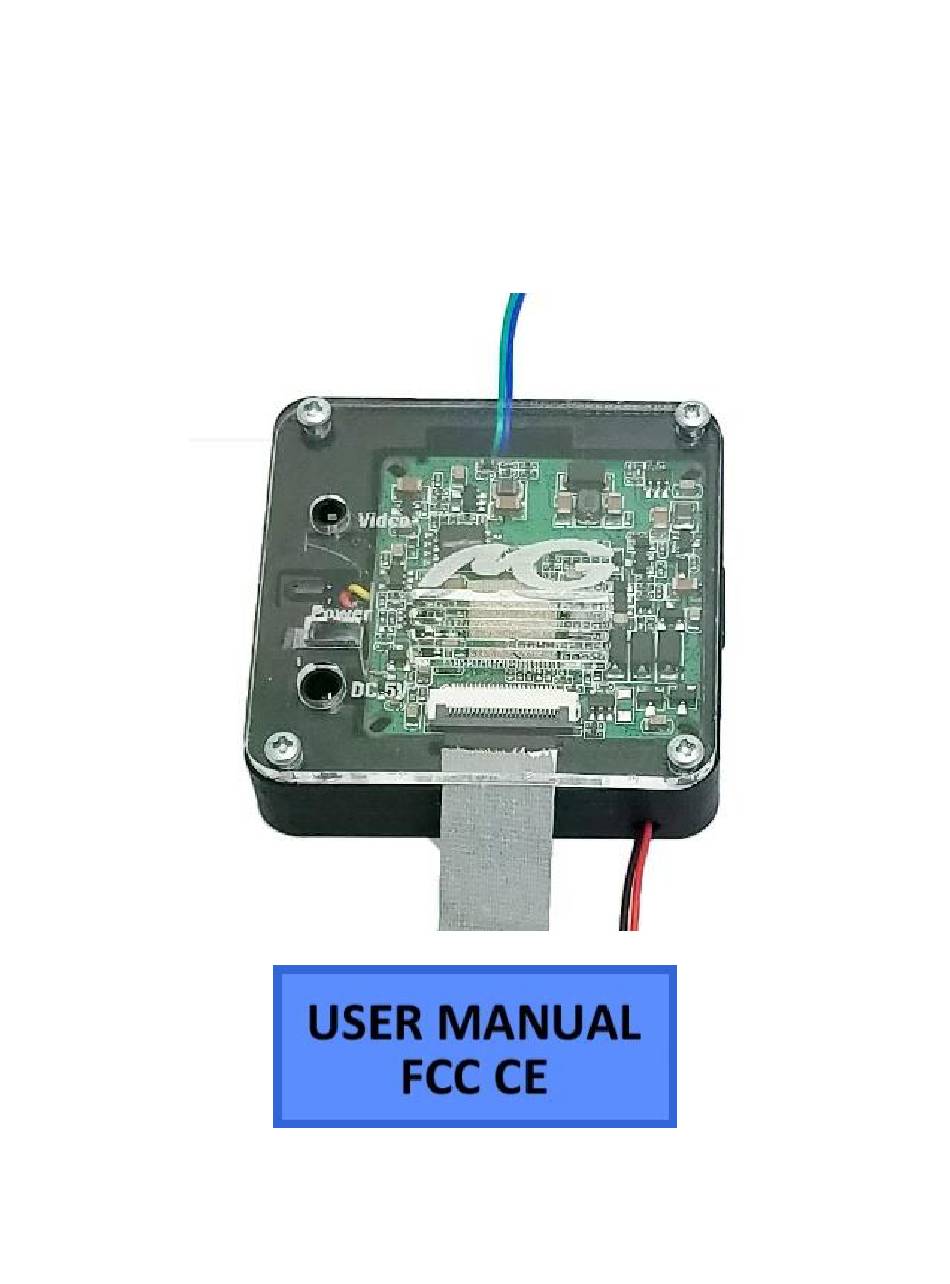

  • Page 1 Do-It-Yourself 1080P Camera Kit SKU: DIY1080P Version 1.3...
  • Page 2 THANK YOU FOR PURCHASING THE DIY1080P Please read this manual before operating the camera and keep it handy. Your purchase should include:  1 x DIY Kit  1 x Wall Charger  1 x 16GB MicroSD Card  1 x Micro USB Cable ...
  • Page 3 GET FAMILIAR WITH YOUR DIY1080P KIT Version 1.3...
  • Page 4 Version 1.3...
  • Page 5 Version 1.3...

  • Page 6: How To Charge The Battery

    HOW TO CHARGE THE BATTERY 1. Disconnect the red, plastic battery connector. See page 3 to locate the battery connector. 2. Connect the supplied charging adapter to the battery. 3. Connect the supplied MicroUSB cable to the opposite end of the charging adapter.
  • Page 7 OPERATING THE CAMERA HOW TO TURN ON THE CAMERA 1. Your device can be powered on in one of two ways: a. Connect your device to an AC outlet using the provided AC wall charger. b. Use the internal battery to power the device.
  • Page 8 light will blink once and then the Red light will blink 3 more times and turn off (if motion is detected immediately). The device is now in motion detection mode. If the light doesn’t come on, try many different angles when pressing the power button and pointing it at the front/top of the unit.
  • Page 9 HOW TO RECORD VIDEO 1. When the camera is in Standby Mode, press the “Video Button” (see page 4). The Indicator LED will flash two times. 2. Once the Indicator LED turns off, the camera is now recording video. HOW TO STOP RECORDING VIDEO 1.
  • Page 10 HOW TO RECORD MOTION DETECTION 1. When the camera is in Standby Mode press, the “Motion Detection Button” (see page 4). 2. If motion is detected, the Red light will flash 2 times and turn off. 3. If there is no motion after 1 minute, the device will return to detection standby mode until motion is detected again.
  • Page 11 HOW TO STOP RECORDING MOTION DETECTION 1. While the camera is recording motion detection, press the “Motion Detection Button.” (The Indicator LED will turn on.) 2. The camera has stopped recording motion detection and is now in Standby Mode. CHANGING YOUR DEVICE SETTINGS (INCLUDING THE DATE/TIME STAMP) Your OmniDIY kit comes with an A/V cable that is used to connect the device to a monitor/TV so...
  • Page 12 5. A menu will display on the screen with various options (Use OK, UP, Down, and Menu on the remote to navigate the menu system): a. Resolution – Select from different resolutions b. Time Stamp – Use this option to enable or disable the date/time stamp on videos c.
  • Page 13 audio recording capabilities, you can turn audio recording ON or OFF here. f. Motion Detection – Adjust motion detection sensitivity here g. Setup – Enter this menu for additional settings h. Setup -> Format – Use this to format your MicroSD card. All data on the disk will be permanently erased.

  • Page 14: Microsd Card Slot

    l. Setup -> Date Format – Choose from various date/time formats (MM/DD/YYYY, DD/MM,YYYY, Etc.) m. Setup -> Date Input – Set the current date n. Setup -> Time Input – Set the current time in military format o. Setup -> System Reset – Use the is to factory reset the device p.
  • Page 15 the main circuit board. You will feel some spring resistance before the card clicks in to place. a. Never force the card into the Card Slot under any circumstances. Otherwise, the unit or the MicroSD card itself will be damaged. 2.
  • Page 16 IMPORTANT NOTICE: Ensure that the device is off before inserting the MicroSD card. Otherwise potential corruption of the card file(s) may occur. RETRIEVE THE FILES TO YOUR PC 1. Remove the MicroSD Card from the device and plug it into your computer using the supplied card reader.
  • Page 17 Or… Go to Start > Computer > Removable Disk 3. Open the Removable Disk drive. Version 1.3...
  • Page 18 4. Open the [folder name] folder. 5. Double click the file you want to view.  VLC Player is recommended for watching videos. If you are having video playback issues, such as a completely black video recording or “squiggly lines”, we recommend you use VLC media player to play back the videos.
  • Page 19 and then chose “Paste.” This will copy the file to your computer.  To delete a file, right click your mouse on the file name and choose “Delete” from the menu. You can quickly select all of the files by pressing “CTRL+A” on your keyboard.

  • Page 20: Troubleshooting

    TROUBLESHOOTING THE DEVICE WON’T TURN ON  Make sure the battery is fully charged. THE DEVICE HAS CRASHED  Press the reset button one time while the device is on. DEVICE CONTINUALLY RECORDS IN MOTION MODE  Motion detection is measured by changing pixels during recording.

  • Page 21: Specifications

    SPECIFICATIONS Video 1920x1080 Resolution Video Format .AVI Frames per Up to 30 fps Second Vision Angle 75° Battery Life 8 Hours Continuous Motion 8 meters for straight-line Detection distance Photo 2560x1920 Resolution Photo Format .JPG Type of External MicroSD Card Memory Memory Up to 128GB with special...
  • Page 22 Recording 1GB ≈ 10 minutes Usage Player VLC recommended Software Video H.264 Compression Version 1.3...
  • Page 23 Version 1.3...
  • Page 24 QUALITY CONTROL CHECKLIST ☐ Charging Board with Indicator Lights ☐ Micro USB Cable ☐ 3.5 mm Power Cable ☐ Remote ☐ 20 Hour Battery ☐ 16 GB MicroSD Card ☐ MicroSD Card Reader ☐ AC Wall Adapter ☐ Manual ☐ A/V Cable QC Tech: ___________________________ Date: ______________________________ Version 1.3...
