Summary of Contents for Mini Gadgets OmniCoffeeLid

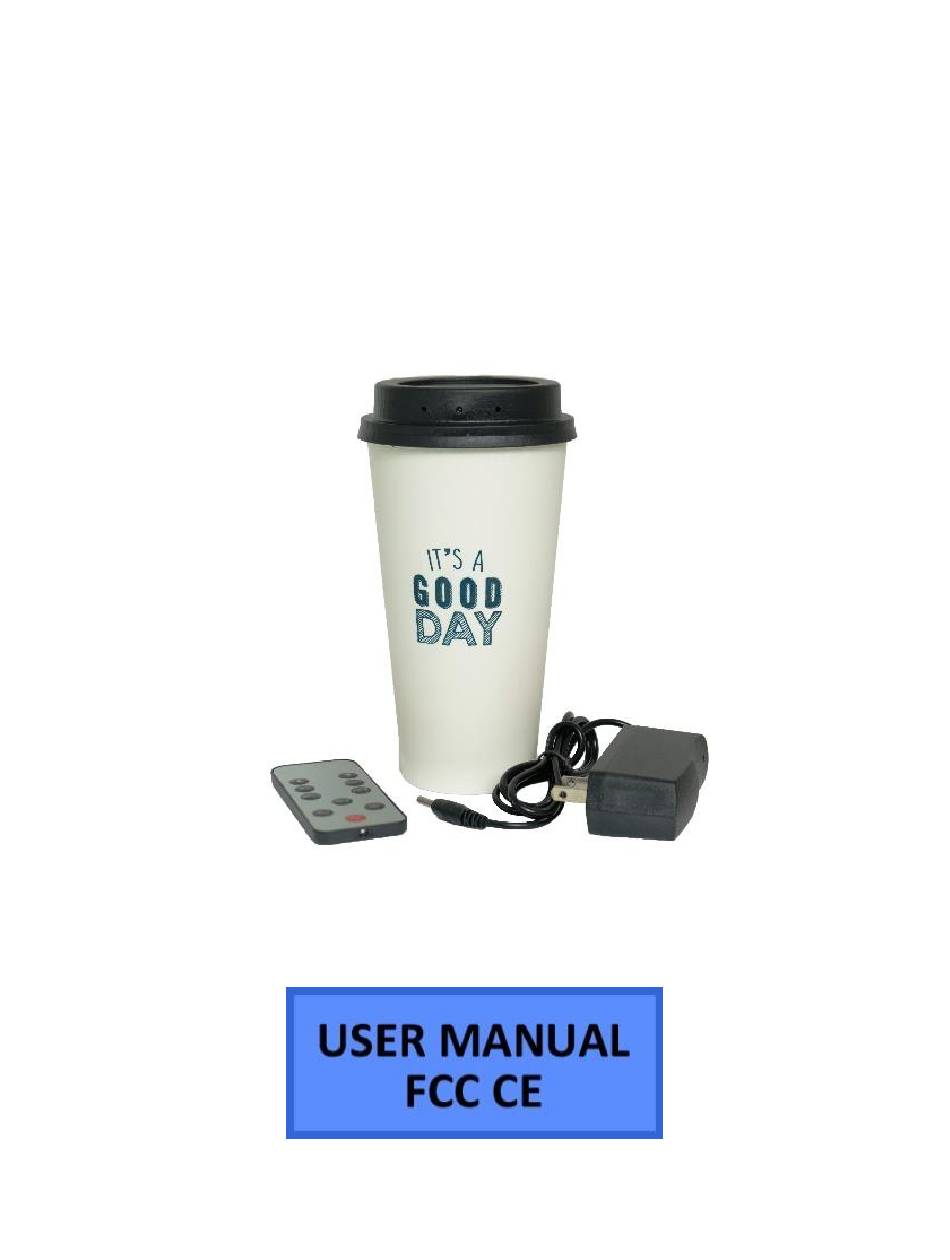

- Page 1 OmniEye Coffee Lid Hidden Camera SKU: OmniCoffeeLid Version 1.3...

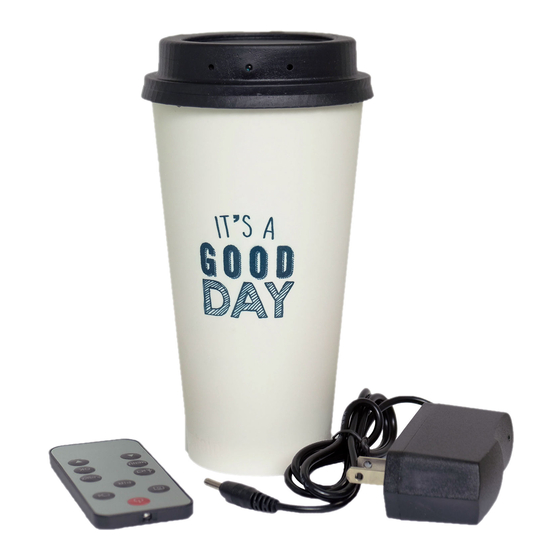

- Page 2 THANK YOU FOR PURCHASING THE OMNICOFFEELID HIDDEN CAMERA Please read this manual before operating the camera and keep it handy. Your purchase should include: 1 x OmniCoffeeLid 1 x AC Wall Charger 1 x Manual 1 x A/V Cable ...
- Page 3 GET FAMILIAR WITH YOUR OMNICOFFEELID HIDDEN CAMERA Version 1.3...
- Page 4 Version 1.3...
- Page 5 Version 1.3...
-
Page 6: How To Charge The Battery
IMPORTANT WARRANY INFORMATION: If the warranty sticker on your device has been removed or tampered with, your lifetime warranty will be voided. You may be charged fees or denied a return should this happen. HOW TO CHARGE THE BATTERY Note: If you are not located in the US, or if you intend to use this product anywhere other than the US, you will need to purchase a converter in order to use the AC wall plug in and avoid damaging the product. -
Page 7: Operating The Camera
charging, there will be a red indicator light. When fully charged, the light will turn blue. OPERATING THE CAMERA HOW TO TURN ON THE CAMERA 1. Your device can be powered on in one of two ways. a. Connect your device to an AC outlet using the provided AC wall charger. - Page 8 once, then the Red light will blink 3 more times and turn off (if motion is detected immediately). The device is now in motion detection mode. NOTE: If the light doesn’t come on, try many different angles when pressing the power button and pointing it at the front/top of the unit.
- Page 9 HOW TO STOP RECORDING VIDEO 1. While the camera is recording video, press the “Continuous Recording Mode” button once more. (The Indicator LED will turn on.) 2. The camera has now stopped recording and is now in Standby Mode. HOW TO TAKE PICTURES 1.
- Page 10 3. If there is no motion after 1 minute, the device will return to detection standby mode until motion is detected again. While waiting, the Green light will be on. NOTE: If you activate motion detection and there is no motion currently in front of the camera, there will be no indication you have entered into motion mode.
- Page 11 sensor”, which relies on measures of infrared light to detect motion. Note: Only OmniX products come with a PIR sensor installed. OmniEye products do not come with this feature. 1. While the camera is in Standby Mode, press the “PIR Sensor” button. 2.
- Page 12 CHANGING YOUR DEVICE SETTINGS (INCLUDING THE DATE/TIME STAMP) Your OmniCoffeeLid comes with an A/V cable that is used to connect the device to a monitor/TV so that you can adjust various settings. (See page 3 to locate the AV port on your device.) 1.
- Page 13 overwrite the oldest file on the memory card if the memory becomes full. d. Video Time – When in continuous recording mode, this setting determines how long video files will be before the current recording is stopped and a new recording is started.
-
Page 14: Microsd Card Slot
recommend you do not adjust this setting. k. Setup -> Light Freq – Select different light frequencies. We recommend that you do not adjust this setting. l. Setup -> Date Format – Choose from various date/time formats (MM/DD/YYYY, DD/MM,YYYY, Etc.) m. - Page 15 1. Gently push the MicroSD Card into the slot. The gold contacts on the card will be inserted first, and they should face the main circuit board. You will feel some spring resistance before the card clicks in to place. a.
- Page 16 IMPORTANT NOTICE: Ensure that the device is off before inserting the MicroSD card. Otherwise potential corruption of the card file(s) may occur. RETRIEVE THE FILES TO YOUR PC 1. Remove the MicroSD Card from the device and plug it into your computer using the supplied card reader.
- Page 17 Or… Go to Start > Computer > Removable Disk 3. Open the Removable Disk drive. 4. Open the [folder name] folder. Version 1.3...
- Page 18 5. Double click the file you want to view. VLC Player is recommended for watching videos If you are having video playback issues, such as a completely black video recording or “squiggly lines”, we recommend you use VLC media player to play back the videos.
- Page 19 To delete a file, right click your mouse on the file name and choose “Delete” from the menu. You can quickly select all of the files by pressing “CTRL+A” on your keyboard. If you are using MAC OS X, you must empty the trashcan after you delete a file.
-
Page 20: Troubleshooting
TROUBLESHOOTING THE DEVICE WON’T TURN ON Make sure the power cable is securely plugged into a functioning electrical outlet or the battery is charged. THE DEVICE HAS CRASHED Press the reset button one time while the device is on. DEVICE CONTINUALLY RECORDS IN MOTION MODE ... -
Page 21: Specifications
SPECIFICATIONS Video 1920x1080 Resolution Video Format .MP4 Frames per 30 FPS Second Vision Angle 65° Battery Life 10 Hours Continuous Recording Up to 30 Days PIR Mode (if applicable) Motion 8 meters for straight-line Detection distance Photo 2560x1920 Resolution Photo Format .JPG Type of Memory External MicroSD Card... - Page 22 Recording Usage 10mins per 1GB USB Interface 2.0 USB Player Software VLC recommended Video H.264 Compression Version 1.3...
- Page 23 Version 1.3...
- Page 24 ☐ Micro USB Cable ☐ 3.5mm to USB Cable ☐ MicroSD Card Reader ☐ ____GB MicroSD Card ☐ Charging Adapter with Indicator Light ☐ Manual ☐ A/V Cable ☐ OmniCoffeeLid QC Tech: ____________________________________ Date: ______________________________ Leave Us A Review! Version 1.3...
