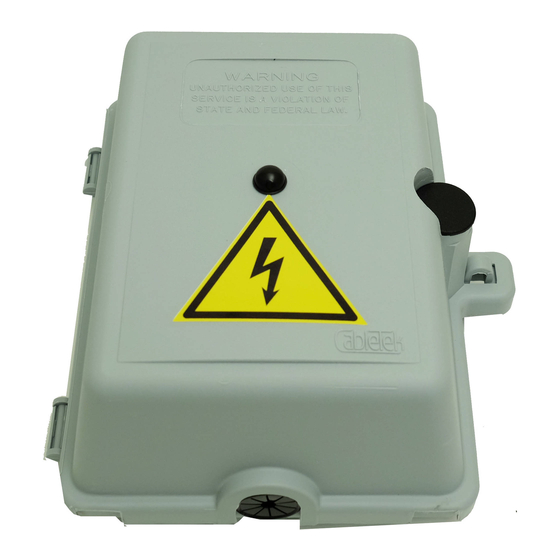

- Page 1 OmniX Electrical Box Hidden Camera SKU: OmniXElectricalBox Version 1.3...
- Page 2 THANK YOU FOR PURCHASING THE OMNIXELECTRICALBOX HIDDEN CAMERA Please read this manual before operating the camera and keep it handy. Your purchase should include: 1 x OmniXElectricalBox 1 x 16GB MicroSD Card 1 x MicroSD Card Reader 4 x Batteries...
- Page 3 GET FAMILIAR WITH YOUR OMNIXELECTRICBOX HIDDEN CAMERA Version 1.3...
-
Page 4: How To Charge The Battery
HOW TO CHARGE THE BATTERY 1. Pull out the batteries. 2. Insert batteries into the supplied charger. 3. Connect the supplied charger to a wall outlet. 4. The chargers LED screen will look like the below when charging is completely done. Version 1.3... - Page 5 Version 1.3...
-
Page 6: Operating The Camera
IMPORTANT WARRANY INFORMATION: If the warranty sticker on your device has been removed or tampered with, your lifetime warranty will be voided. You may be charged fees or denied a return should this happen. OPERATING THE CAMERA Note: If you are not located in the US, or if you intend to use this product anywhere other than the US, you will need to purchase a converter in order to use the AC wall plug in and avoid damaging the product. - Page 7 NOTE: If the light doesn’t come on, try many different angles when pressing the power button and pointing it at the front/top of the unit. Do not hold down the power button. Press and release the button only. 2. To put the device into standby mode, stop motion recording by pressing the motion detection button one time.
- Page 8 1. While the camera is recording video, press the “Continuous Recording Mode” button once more. (The Indicator LED will turn on.) 2. The camera has stopped recording and is now in Standby Mode. HOW TO TAKE PICTURES 1. When the camera is in Standby Mode, press the “Photo Button”...
- Page 9 NOTE: If you activate motion detection and there is no motion currently in front of the camera, there will be no indication you have entered into motion mode. The green light will simply remain on. If you wish to confirm that you have entered into motion detection mode, wave your hand in front of the camera lens.
- Page 10 The light will return green to indicate the unit is in standby mode. CHANGING YOUR DEVICE SETTINGS (INCLUDING THE DATE/TIME STAMP) Your OmniXElectricalBox comes with an A/V cable that is used to connect the device to a monitor/TV so that Version 1.3...
- Page 11 you can adjust various settings. See page 3 to locate the AV port inside your device. 1. Connect your device to a monitor/TV using the provided A/V Cable. 2. Power on the device. 3. Press the motion detection button to stop recording.
- Page 12 how long video files will be before the current recording is stopped and a new recording is started. e. Audio Record (if applicable) – If you purchased your device with audio recording capabilities, you can turn audio recording ON or OFF here. f.
-
Page 13: Microsd Card Slot
k. Setup -> Light Freq – Select different light frequencies. We recommend that you do not adjust this setting. l. Setup -> Date Format – Choose from various date/time formats (MM/DD/YYYY, DD/MM,YYYY, Etc.) m. Setup -> Date Input – Set the current date. - Page 14 and they should face the main circuit board. You will feel some spring resistance before the card clicks in to place. a. Never force the card into the Card Slot under any circumstances. Otherwise, the unit or the MicroSD card itself will be damaged.
- Page 15 IMPORTANT NOTICE: Ensure that the device is off before inserting the MicroSD card. Otherwise potential corruption of the card file(s) may occur. RETRIEVE THE FILES TO YOUR PC 1. Remove the MicroSD Card from the device and plug it into your computer using the supplied card reader.
- Page 16 Or… Go to Start > Computer > Removable Disk 3. Open the Removable Disk drive. 4. Open the [folder name] folder. Version 1.3...
- Page 17 5. Double click the file you want to view. VLC Player is recommended for watching videos. If you are having video playback issues, such as a completely black video recording or “squiggly lines”, we recommend you use VLC media player to play back the videos.
-
Page 18: Troubleshooting
To delete a file, right click your mouse on the file name and choose “Delete” from the menu. You can quickly select all of the files by pressing “CTRL+A” on your keyboard. If you are using MAC OS X, you must empty the trashcan after you delete a file. -
Page 19: Other Problems
Press the reset button one time while the device is on. DEVICE CONTINUALLY RECORDS IN MOTION MODE Motion detection is measured by changing pixels during recording. Any kind of motion including shifting shadows or changing lighting conditions can set off motion detection. Try adjusting the motion detection sensitivity via the setup menu. -
Page 20: Specifications
SPECIFICATIONS Video 1920x1080 Resolution Video Format .MP4 Frames per Up to 30 FPS Second Vision Angle 65° Battery Life Up to 30 days in PIR Mode 20 Hours Continuous Recording Motion 8 meters for straight-line Detection & PIR distance Sensor Photo 2560x1920 Resolution... - Page 21 Recording Usage 10 minutes per 1GB USB Interface 2.0 USB Player Software VLC recommended Video H.264 Compression Version 1.3...
- Page 22 Version 1.3...
- Page 23 Version 1.3...
- Page 24 QUALITY CONTROL CHECKLIST ☐ Remote ☐ Manual ☐ Batteries (4) ☐ Wall Charger ☐ Battery Charger ☐ A/V Cable ☐ MicroSD Card Reader ☐ 16GB MicroSD Card ☐ OmniXElectricalBox QC Tech: ____________________________________ Date: _______________________________________ Leave Us A Review! Version 1.3...
