OPERATION

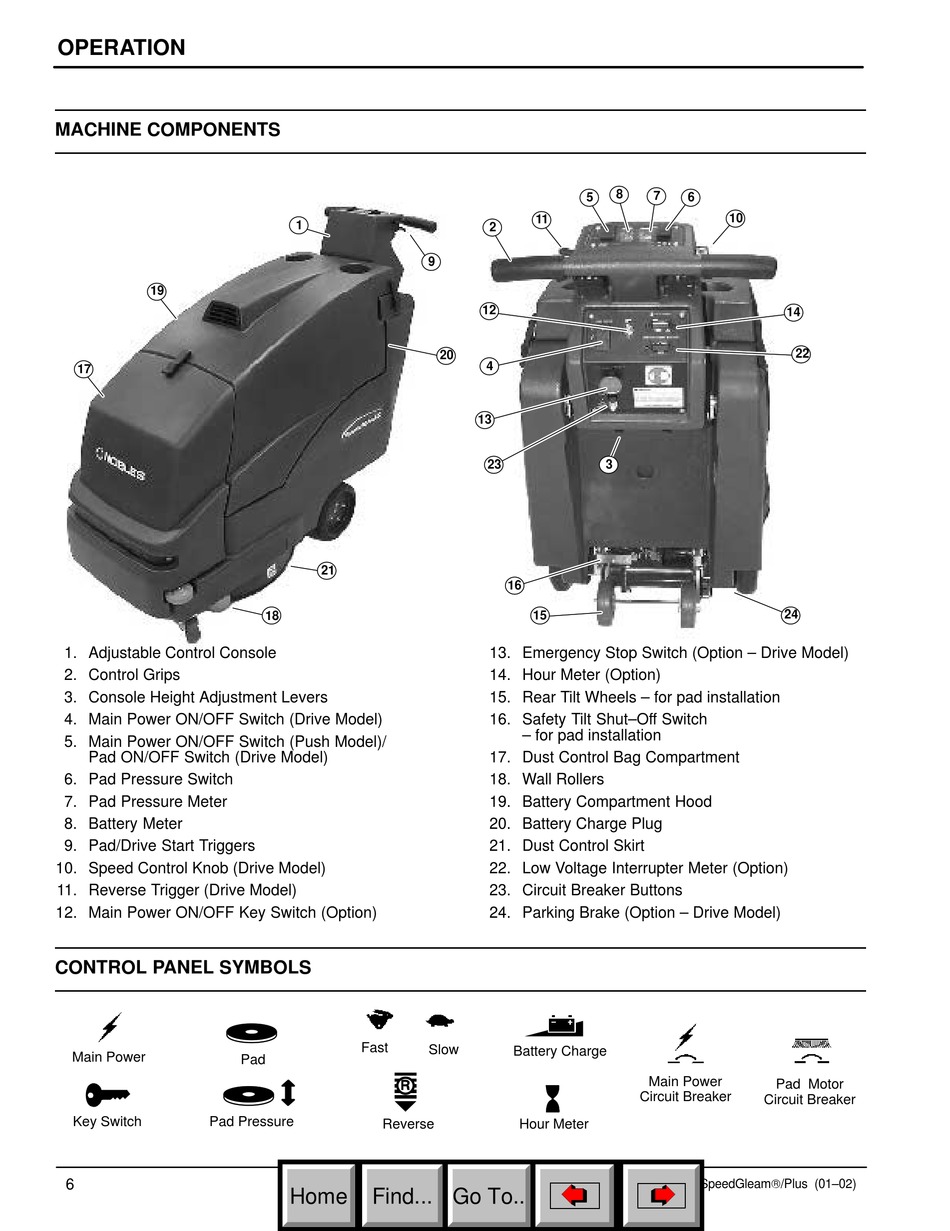

MACHINE COMPONENTS

19
17
1. Adjustable Control Console
2. Control Grips
3. Console Height Adjustment Levers
4. Main Power ON/OFF Switch (Drive Model)
5. Main Power ON/OFF Switch (Push Model)/
Pad ON/OFF Switch (Drive Model)
6. Pad Pressure Switch
7. Pad Pressure Meter
8. Battery Meter
9. Pad/Drive Start Triggers
10. Speed Control Knob (Drive Model)
11. Reverse Trigger (Drive Model)
12. Main Power ON/OFF Key Switch (Option)

CONTROL PANEL SYMBOLS

Main Power
Key Switch
Pad Pressure
6
1
21
18
Fast
Pad
Reverse
Home Find... Go To..
5
11
2
9
12
20
4
13
23 3
16
15
13. Emergency Stop Switch (Option – Drive Model)
14. Hour Meter (Option)
15. Rear Tilt Wheels – for pad installation
16. Safety Tilt Shut–Off Switch
– for pad installation
17. Dust Control Bag Compartment
18. Wall Rollers
19. Battery Compartment Hood
20. Battery Charge Plug
21. Dust Control Skirt
22. Low Voltage Interrupter Meter (Option)
23. Circuit Breaker Buttons
24. Parking Brake (Option – Drive Model)
Slow
Battery Charge
Hour Meter
8
7
6
10
14
22
24
Main Power
Pad Motor
Circuit Breaker
Circuit Breaker
