All rights reserved. Product description and product specifications are subject to change without notice.
For l a stest product information, please v i s it Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
Tel: 909. 597. 7588
Fax: 909. 597. 1939
© C opyright 2015 Acnodes C orp.
Advertisement

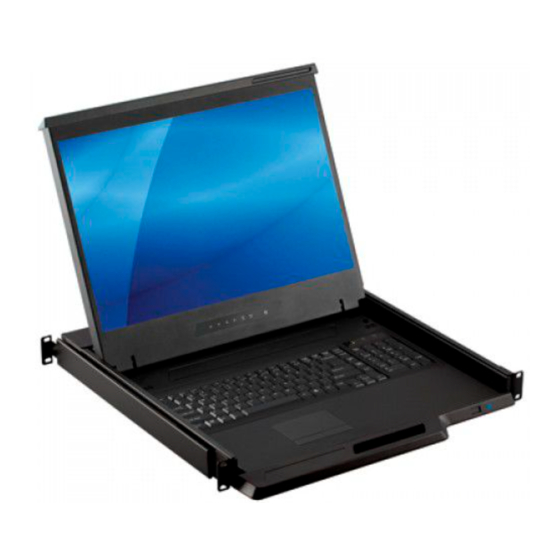

Related Manuals for Acnodes KDW8190
Summary of Contents for Acnodes KDW8190

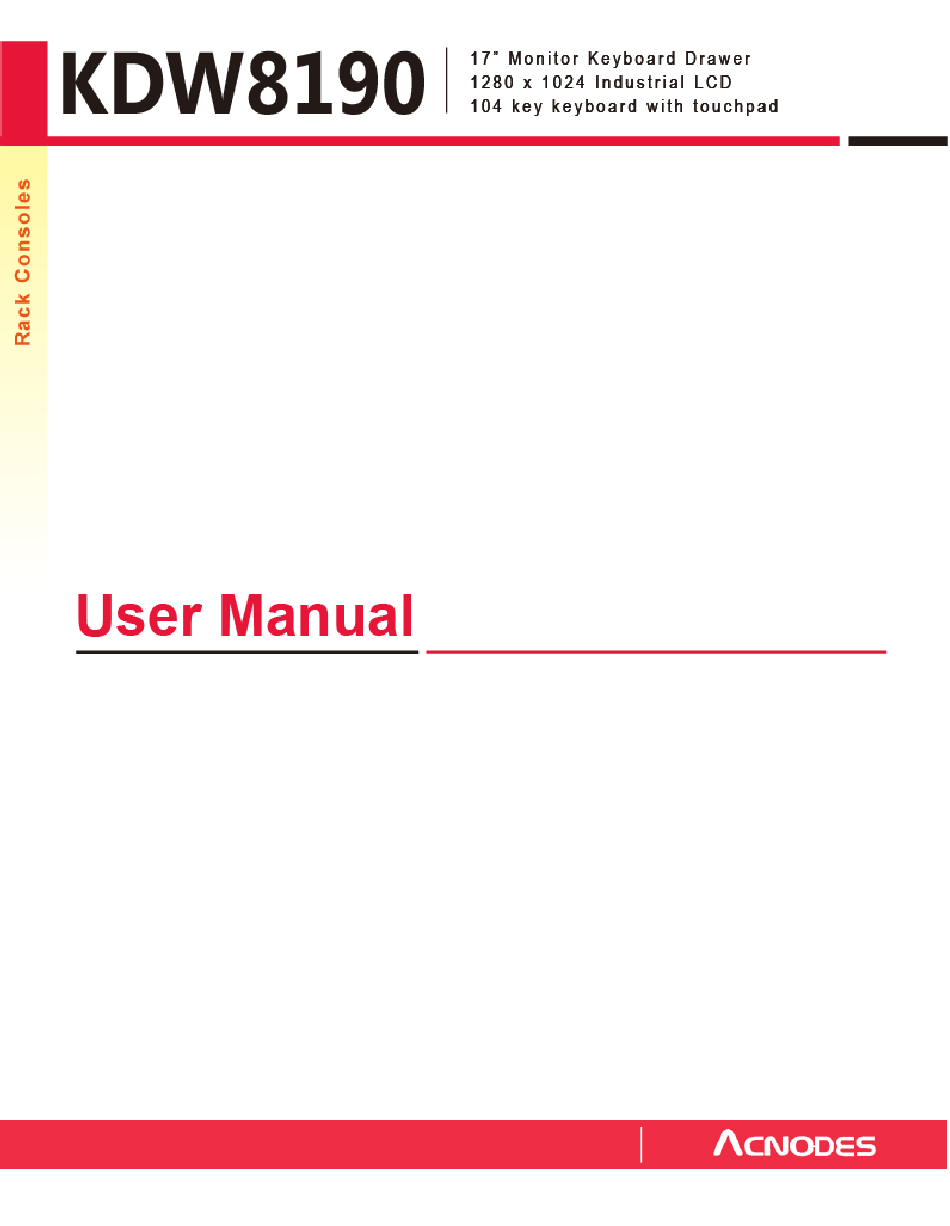

- Page 1 All rights reserved. Product description and product specifications are subject to change without notice. For l a stest product information, please v i s it Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909. 597. 7588 Fax: 909. 597. 1939...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > KDW8190 Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 5 Connection P.6 - 7 < Part. 2 > Specifications / OSD Product Specifications P.8 - 9 Keyboard / Mouse Specifications P.10 On-screen Display Operation ( OSD ) P.11 - 12... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Package Content
< Part 1 > < 1.1 > Package Content KD W8190 unit X 1 - 6ft DVI-D cons ole cable X 1 ( Alternative : 6ft VGA console cable ) - Power cord X 1 - M6 screw, cage nut & cup wash er X 8 The above package content is only for the single console models. - Page 6 Weight 441.6 x 460 x 44 mm 590 x 823 x 140 mm 11.5 k g 16.5 kg KDW8190 17.4 x 18.1 x 1.73" 23.2 x 32.4 x 5.5” 25 lb 36 lb The weight is only for the single console models. It varies with accessories & options...
-
Page 7: Installation
< 1.3 > Installation - How to install Installation Slides Step ¦ Insert the left and right rear mounting brackets into the LCD c onsole drawer. Step ¦ Measure the depth of the front and rear mounting rails. ¦ Align each rear mounting bracket to a suitable length. Step Complete the installation ¦... - Page 8 < 1.3 > Installation - How to install 2 post rack brackets Step ¦ Release front mounting ears before applying 2 post r ac k brackets. ¦ Insert rear m ounting brack ets into the LCD console drawer. Opt ion Model : MB-751-12 Step ¦...
- Page 9 < 1.3 > Installation- How to use the drawer ¦ Hold the handle and slide out the drawer. ¦ Flip up the LCD to a suitable angle. ¦ Operate the LCD cons ole drawer.
-
Page 10: Connection
< 1.4 > Connection to USB Server via CX-6 cable LCD Console Drawer Power DVI-D KVM CX-6 DVI-D console cable VI-D USB server < 1.4 > Connection to external KVM via CX-6 cable LCD Console Drawer Power DVI-D KVM CX-6 DVI-D console cable DVI-D DVI console KVM... - Page 11 < 1.4 > Connection to USB Server via CB-6 cable LCD Console Drawer Power CB-6 VGA console cable USB server < 1.4 > Connection to external KVM via CB-6 cable LCD Console Drawer Power CB-6 VGA console cable USB console KVM Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such as the servers and KVM switch, m ay not be hot-pluggable.
-
Page 12: Product Specifications
< Part 2 > < 2.1 > Product Specifications Manufacturer Panel Panel Size ( diagonal ) 19-inch W idescreen TFT color LCD Display pixel ( dots x lines ) 1440 x 900 Brightness ( typ. ) Contrast Ratio ( typ. ) 1000:1 Color 16.7 M... - Page 13 Environmental Operating Temperature 0 to 50°C degree Conditions Hum idity 20~90%, non-condens ing Storage Temperature -5 to 60°C degr ee Hum idity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical Product ( W x D x H ) 441.6 x 460 x 44 mm Specification 17.4 x 18.1 x 1.73 inch...
-
Page 14: Keyboard / Mouse Specifications
< 2.2 > Keyboard / Mouse Specifications G keyboard integrated with touchpad G keyboard integrated with tr ackball Key force 55 ± 5g Travelling distance 3 ± 0.3m m Switch life > 10 million life cycle time Soft ware support MS W indows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC Linux / Mac Supporting layouts... -
Page 15: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) M embrane Switch Funct ion Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed co ntrol Exit t he OSD screen Go back to the previous on-screen sub-men u o r... - Page 16 < 2.3 > On-screen Display Operation ( OSD ) OSD C onfiguration Page Image: for the brightness, contrast, color temp , red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AV L and mute Misc:...
- Page 17 < Part 3> <3.1 > Options : - HDMI ( HD MI 1.1, CEA -861-D ) - AV ( S-Vid eo + Compo site, BN C ) - Audio ( 3.5mm audio jack s for au dio in & o ut, and 2W + 2W spea kers ) ( 1 ) For AV2.2 upgrade, either HDMI or DVI-D is provided.
- Page 18 < 3.2 > Options : DC Power Model Input rating Inp ut voltage: 1 2-Volt 24-Volt 48-Volt Inp ut range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Inp ut current - No load 50 mA 50 mA 5 0 mA - Full load 4950 mA 2450 mA...
