- Page 1 AGH7100 & AGVH7300 Gas hobs Installation, use and maintenance www.amica-international.co.uk...
-
Page 2: Table Of Contents
Important safety warnings and appliance information Using Your Hob Hob layout(s) Igniting the burners Efficient use of your hob Care And Maintenance- AGH7100 Care And Maintenance- AGVH7300 Troubleshooting What to do if you smell gas Preventing unsafe conditions Mains Electricity Connection... -
Page 3: Important Safety Warnings
Important safety warnings 1. It is a legal requirement that all gas appliances are installed by qualified personnel and only in accordance with current legislation. It is your responsbility to ensure compliance with the law. 2. Repairs or servicing of this product must only be carried out by an authorised service agent using approved parts. - Page 4 Important safety warnings The manufacturer cannot be held responsible for injuries or losses caused by incorrect use or installation of this product. Please note that we reserve the right to invalidate the guarantee supplied with this product following incorrect installation or misuse of the appliance.
- Page 5 safety (LVD) and Electromagnetic interference compatibility (EMC). Parts intended to come into contact with food conform to 1935/2004/ IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EU DIRECTIVE 2012/19/EU. At the end of its working life, the product must be taken to a special local authority waste collection centre or to a dealer providing appliance recycling services.
-
Page 6: Using Your Hob

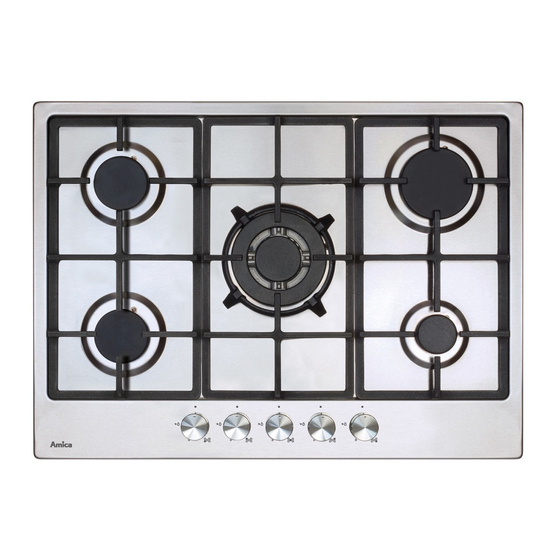

• This hob (Class 3) has been designed for use only as a cooking appliance. Any other use (e.g. heating rooms) should be considered incorrect and potentially dangerous. • These instructions are valid only for the countries of destination, the symbols of which appear the appliance. - Page 7 AGH7100 Fig. 2 AGVH7300 Fig. 3...
- Page 8 Key to Fig 2 Gas burners: 1. Triple burner 3.8kW 2. Rapid burner 3.0kW 3. Semi-Rapid burner 1.75kW 4. Auxiliary burner 1.0kW Control panel: 5. Front left burner control knob 6. Back left burner control knob 7. Centre burner control knob 8.
-
Page 9: Igniting The Burners
Igniting the burners The hob is fitted with flame failure de- vices on each burner. Flame failure de- vices operate by shutting off the supply of gas to the burner in the event that the flame is extinguished accidentally. Fig. 4 To ignite the burners, follow these instructions: 1. -
Page 10: Efficient Use Of Your Hob
Efficient use of your hob The hob is equipped with burners of different sizes, designed to accommodate most shapes and sizes of pan. For best results, only use pans with flat bottoms and choose an appropriate burner depending on the size of the pan. The most efficient use of the hob is shown below, where the pan and burner are correctly chosen. -
Page 11: Care And Maintenance- Agh7100
Care and maintenance -AGH7100 As the hob has a stainless steel or enamel surface, you should use a nonabrasive cleaner. Any abrasive cleaner (including Cif) will scratch the surface and could erase the control panel markings. Stainless steel can be effectively cleaned by simply using a dilute solution of water and mild detergent and drying to a shine with a clean cloth. -
Page 12: Care And Maintenance- Agvh7300
Care and maintenance - AGVH7300 Important: • Switch the appliance off at the mains before any cleaning or maintenance. • Steam cleaners must not be used when cleaning this appliance. • You should use a non-abrasive cleaner to clean the hob top. Any abrasive cleaner (including Cif) will scratch the surface and could erase the control panel markings. -
Page 13: Troubleshooting
If one or more burners continue to malfunction, please contact CDA Customer Care. Contact details can be found below: A: Amica CCD, The CDA Group Building, Harby Road, Langar, Nottinghamshire, NG13 9HY T: 01949 862 012 F: 01949 862 003 E: customer.care@amica-international.co.uk... -
Page 14: What To Do If You Smell Gas
WHAT TO DO IF YOU SMELL GAS: 1. Turn off the gas. For natural gas - Turn off the gas supply at the meter situated at the emergency control valve (ECV) unless the meter is located in a basement or cellar. If there is a smell of gas in the basement or cellar, evacuate the building. - Page 15 5. Call the Gas Emergency Contact Centre In the case of natural gas, contact the Gas Emergency Service Provider (ESP) or, in the case of LPG, the Gas Supplier. Below is a list of ESPs relevant to region: England, Scotland and Wales: Natural Gas - 0800 111 999 (Gas Emergency Contact Centre) LPG - Bulk and Metered supplies - See telephone number on bulk storage vessel or at the meter.
- Page 16 Channel Islands - Jersey: Mains Gas + LPG (mains gas in the Channel Islands is an LPG and air mixture) - 01534 755555 (Jersey Gas Company Ltd.) Isle of Man: Natural gas and LPG - 0808 1624 444 (Manx Gas Ltd.) Gas Emergency contact details for the four main suppliers of LPG in the British Isles are shown below: Calor - 08457 444 999...
-
Page 17: Preventing Unsafe Conditions
Preventing unsafe conditions Knowing how to treat your appliances will help you to prevent unsafe conditions. • Keep electrical leads from trailing over or going near the hob. • Do not hang towels, cloths or other combustibles on, over or near your hob (nor any cooking appliance). -
Page 18: Mains Electricity Connection
Mains electricity connection THIS APPLIANCE MUST BE CONNECTED TO THE MAINS SUPPLY BY A COMPETENT PERSON, USING FIXED WIRING VIA A DOUBLE POLE SWITCHED FUSE SPUR OUTLET AND PROTECTED BY A 3A FUSE. DOUBLE POLE SWITCHED The appliance should be connected by a FUSE SPUR OUTLET qualified electrician, who is a member of the N.I.C.E.I.C. -
Page 19: Gas Supply Requirements
Gas supply requirements IMPORTANT: THIS APPLIANCE MUST BE FITTED BY A GAS SAFE REGISTERED FITTER OR OTHER SUITABLY QUALIFIED PERSON. • This installation must comply with the Gas Safety (installation and use) Regulations 1984. • This appliance is category II2H3+ and is designed for use in the UK and Ireland. -
Page 20: Ventilation
Ventilation All rooms require a window or equivalent (e.g. a door) which can be opened. Some rooms require a permanent vent in addition to a win- dow (see below). This unit must not be used in a room which is less than 5m . -
Page 21: Natural Gas To Lpg Conversion
Natural Gas to LPG Conversion This hob can be converted from natural Required: gas to propane operation at a nominal • 7mm AF nut spinner inlet pressure of 37mbar, or butane • Replacement injectors • LPG identity plate operation at a nominal inlet pressure of 28/30mbar. -
Page 22: Lpg To Natural Gas Conversion
LPG to Natural Gas Conversion This hob can be converted from Required: propane operation at a nominal inlet • 7mm AF nut spinner • Replacement injectors pressure of 37mbar or butane operation • NG identity plate at a nominal inlet pressure of 28/30mbar to natural gas at 20mbar. - Page 23 vertical surfaces, e.g. a tall cupboard end panel. This may be reduced to 100mm if the adjacent surface is resistant to fire (tiles or steel, for example). These dimensions are shown in Fig. 11 on page 25. If fitting a cooker hood above the hob: If a cooker hood is to be installed above the hob, the height of the hood above the hob must be at least 750mm (Fig.
-
Page 24: How To Install The Hob
(Fig. 14). Remove any excess seal after tightening the brackets. DO NOT MODIFY THE HOB IN ANY WAY. TO DO SO MAY BE DANGEROUS. Installation Dimensions (mm) AGH7100 AGVH7300 Overall width Overall depth Hob thickness... - Page 25 15mm Ventilation slot > 30mm Fig. 10 >61.5mm 477mm AGH7100 AGVH7300 Cutout width (W) 557mm 557mm Landing (L) 155mm 155mm Fig. 12 Fig. 11 Fig. 13 3.5cm Fig. 14...
-
Page 26: Energy Efficiency Information
Energy Efficiency Information A) Measurement and calculation methods • The gas hob was CE approval according to the Gas Appliance Directives 2009/142/EC. • The energy efficiency of this gas hob was tested and measured according to EN 30-2-1-1998+A1-2003+A2-2005. • The semi-rapid burner and rapid burner were tested separately; the auxiliary burner is not required for test because its nominal heat input is less than 1.16kW. - Page 27 The packaging materials of this appliance are recyclable, please make good use of waste materials. Energy Efficiency Information Attribute Symbol Value Units Model identification AGH7100 AGVH7300 Type of hob Built in Built in Number of gas burners Energy efficiency per gas burner Aux: NA...
- Page 28 For more information please contact: The Sales Department on 01949 862 010 Customer Care Department: Amica CCD, The CDA Group Building, Harby Road, Langar, Nottinghamshire, NG13 9HY T: 01949 862012 F: 01949 862003 E: customercare@amica-international.co.uk www.amica-international.co.uk...
