User Guide for NUC8i7BEKQA and NUC8i5BEKPA
This guide tells you how to:
Upgrade memory (RAM)
•
Change/install an M.2 SSD
•
Use a VESA mount bracket
•
Connect power
•
Set up Microsoft® Windows® 10
•
Keep device drivers current
•
•
Recover the operating system

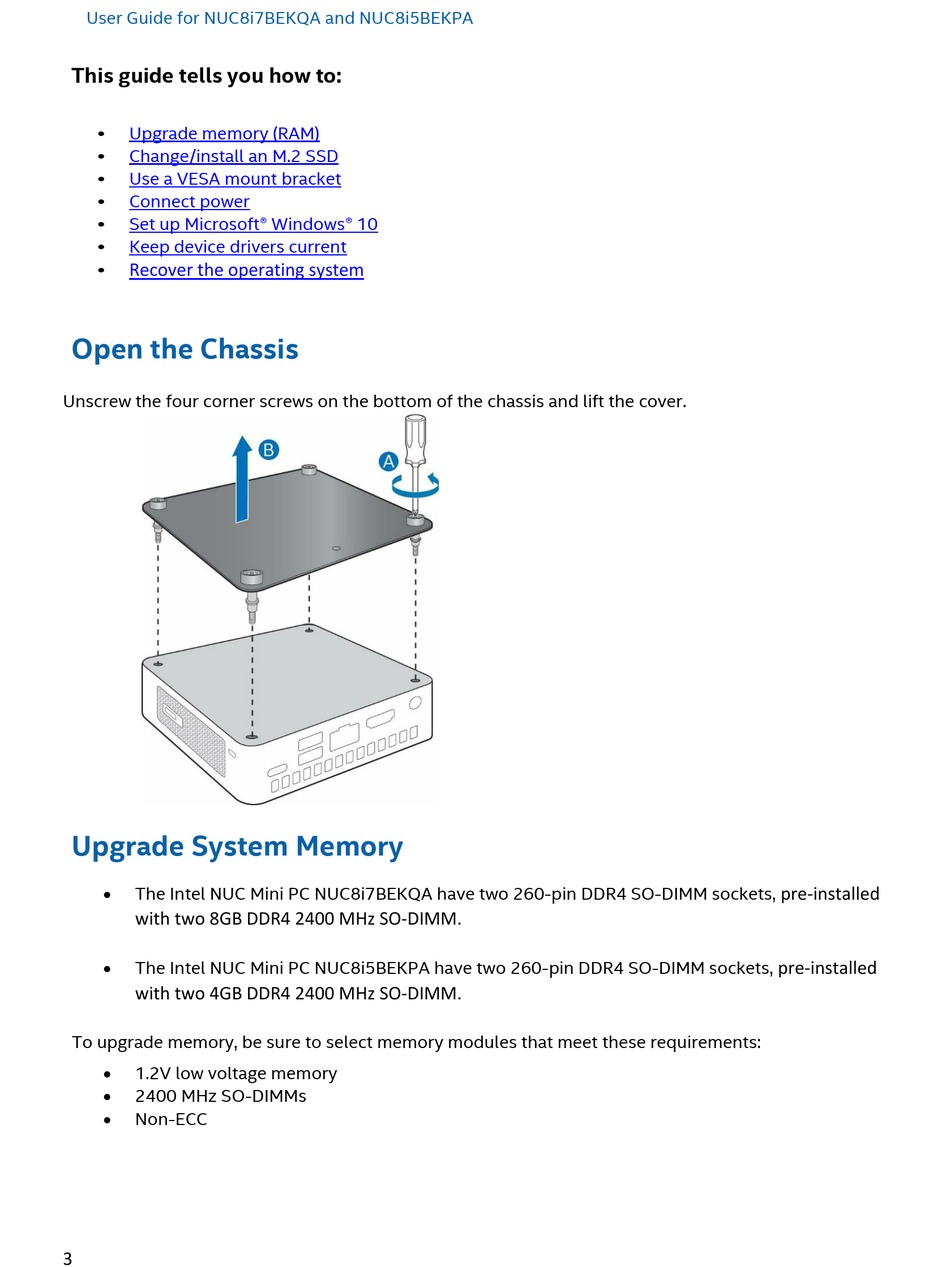

Open the Chassis

Unscrew the four corner screws on the bottom of the chassis and lift the cover.

Upgrade System Memory

 The Intel NUC Mini PC NUC8i7BEKQA have two 260-pin DDR4 SO-DIMM sockets,
with two 8GB DDR4 2400 MHz SO-DIMM.
 The Intel NUC Mini PC NUC8i5BEKPA have two 260-pin DDR4 SO-DIMM sockets,
with two 4GB DDR4 2400 MHz SO-DIMM.
To upgrade memory, be sure to select memory modules that meet these requirements:
 1.2V low voltage memory
 2400 MHz SO-DIMMs
 Non-ECC
3
pre-installed
pre-installed
